13 WHEELS 74
601809-10

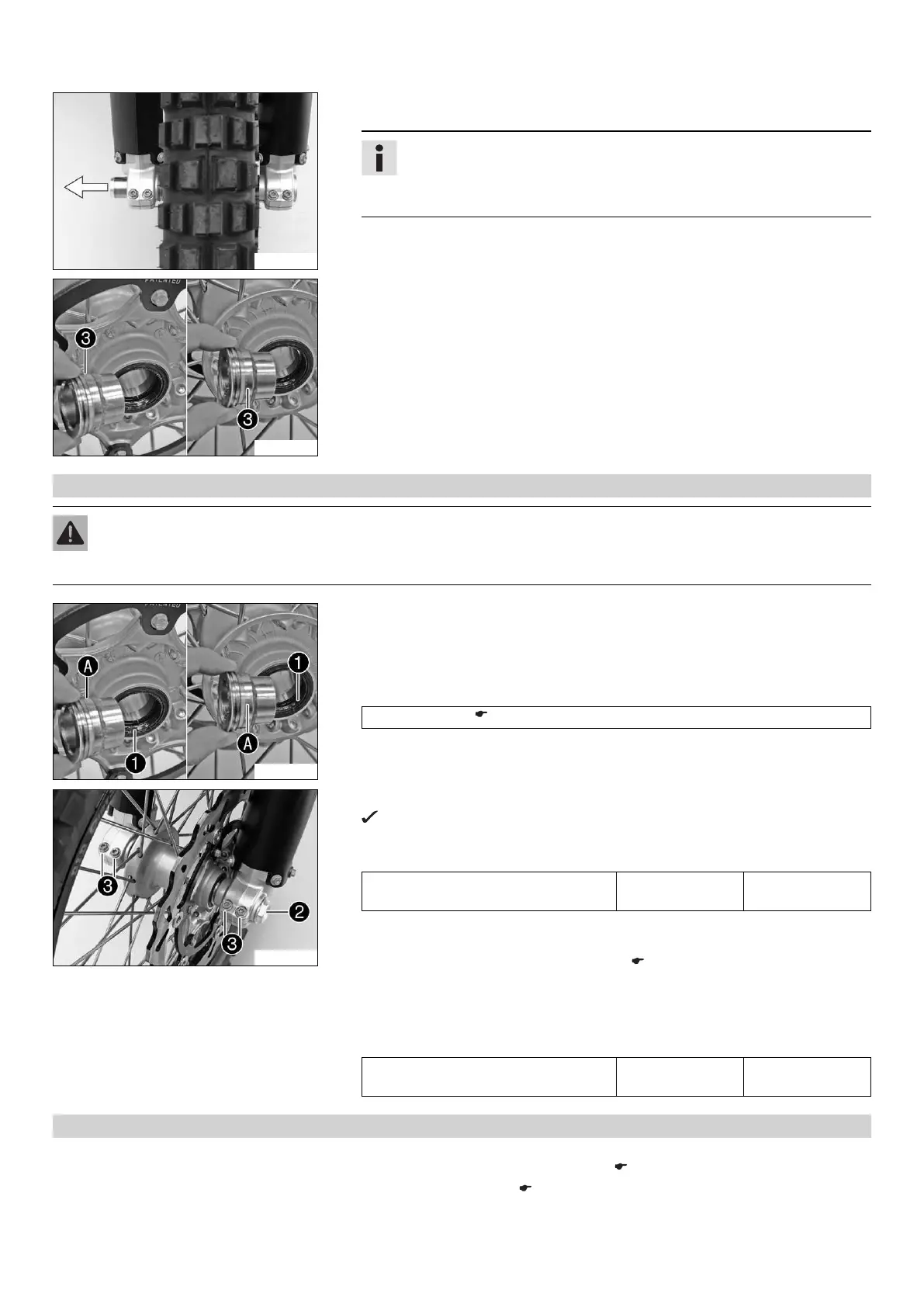

– Holding the front wheel, withdraw the wheel spindle. Take the front wheel out of
the fork.
Info
Do not pull the hand brake lever when the front wheel is removed.
Always lay the wheel down in such a way that the brake disc is not dam-
aged.
800080-10
– Remove distance bushings 3.
13.6.2 Installing the front wheel
Warning
Danger of accidents Reduced braking efficiency due to oil or grease on the brake discs.
– Always keep the brake discs free of oil and grease, and clean them with brake cleaner when necessary.
800080-11
– Check the wheel bearing for damage and wear.
» If the wheel bearing is damaged or worn:
– Replace the wheel bearing.
– Clean and grease the shaft seal rings 1 and bearing surface A of the distance
bushings.
Long-life grease ( p. 212)
– Insert the spacers.
601808-11
– Position the front wheel and insert the wheel spindle.
The brake linings are correctly positioned.
– Mount and tighten screw 2.
Guideline
Screw, front wheel spindle M24x1.5 45 Nm
(33.2 lbf ft)
– Activate the hand brake lever multiple times until the brake linings are in contact
with the brake disc.
– Remove the motorcycle from the lift stand. ( p. 10)
– Pull the front wheel brake and push down hard on the fork several times to align
the fork legs.
– Tighten screws 3.
Guideline
Screw, fork stub M8 15 Nm
(11.1 lbf ft)
13.6.3 Removing the brake disc of the front brake
Preparatory work
– Raise the motorcycle with the lift stand. ( p. 10)
– Remove the front wheel. ( p. 73)
