KTM 690 Enduro R EU 2012 User Manual

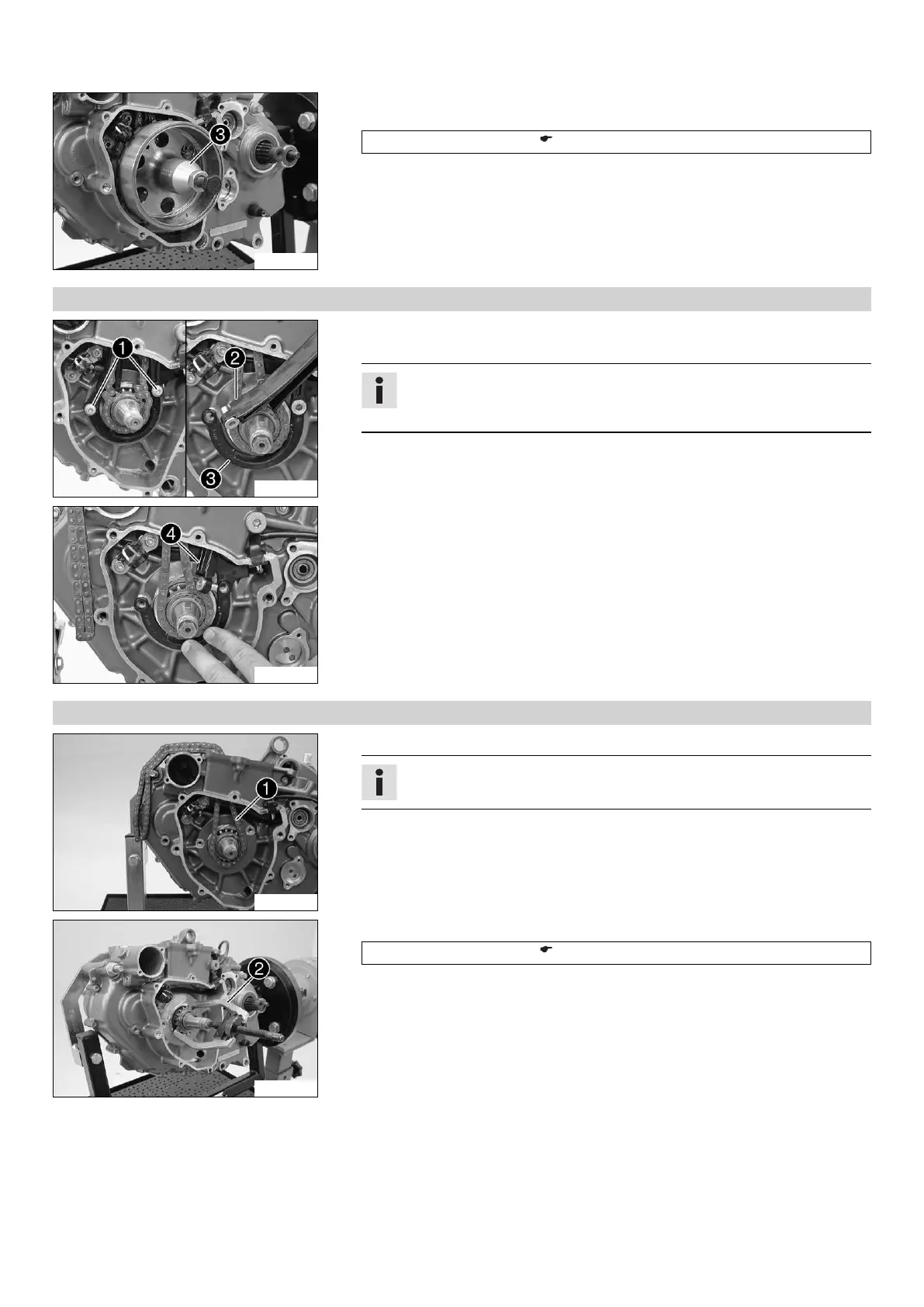

17 ENGINE 116
302120-10
– Install the special tool 2 on the rotor. Hold it tight using the special tool and pull
off the rotor by turning the screw in.
Extractor (58429009000) ( p. 215)
– Remove the special tool.
17.3.20 Removing timing chain rails
300045-10
– Remove screws 1.
– Pull the timing chain guide rails 2 out of the timing chain securing guide 3.
Info
The support bushing is plugged through the timing chain guide rails into the
timing chain securing guide.
– Remove the timing chain guide rails upward out of the timing chain shaft.
300046-10
– Hold the timing chain securing guide tight and pull the timing chain tensioning
rail 4 out of the timing chain securing guide.
– Remove the timing chain tensioning rail upward out of the timing chain shaft.
– Remove the timing chain securing guide 3.
17.3.21 Removing timing chain and timing chain sprocket
300148-10
– Slip out timing chain 1.
Info
Mark the direction of travel.
– Take off lock ring.
300149-10
– Pull of the timing chain sprocket with the special tool 2.
Extractor (59029033000) ( p. 216)
