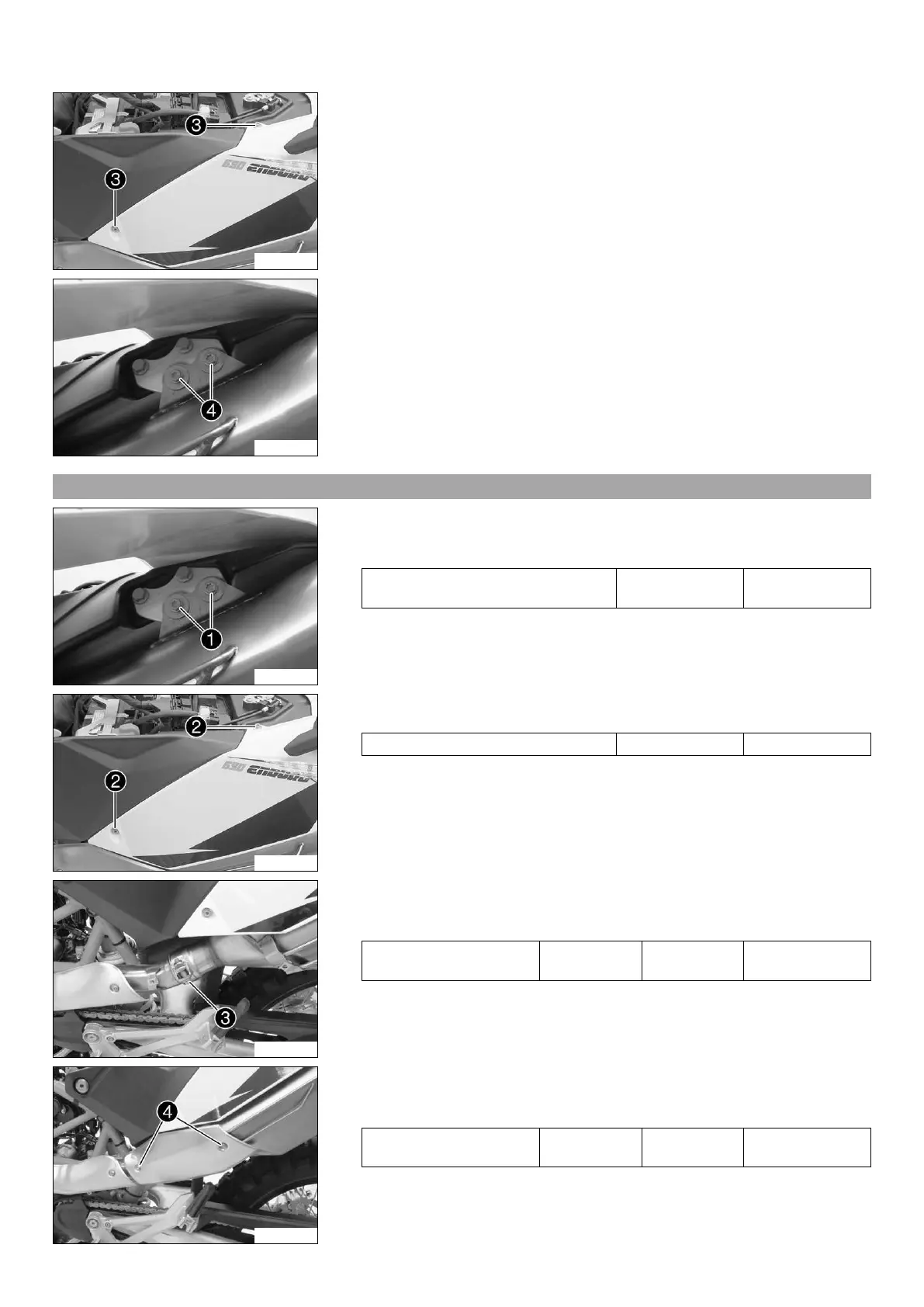

10 EXHAUST 58
202036-10
– Remove screws 3.
– Lift the rear fairing.
202037-10
– Remove screws 4.
– Remove the main silencer.
10.4 Installing the main silencer
202037-11
– Position the main silencer.
– Mount and tighten screws 1.
Guideline
Screw, main silencer holder M8 25 Nm
(18.4 lbf ft)
202036-11
– Mount and tighten screws 2.
Guideline
Rear fairing screw M6 5 Nm (3.7 lbf ft)
202034-13
– Position the exhaust clamp.
– Tighten screw 3.
Guideline
Screw, main silencer
clamp
M8 12 Nm
(8.9 lbf ft)
Copper paste
202032-13
– Position the exhaust heat guard.
– Mount and tighten screws 4.
Guideline
Screw, exhaust heat shield M5 8 Nm
(5.9 lbf ft)
Loctite
®
243™
