12 FUEL TANK, SEAT, TRIM 63

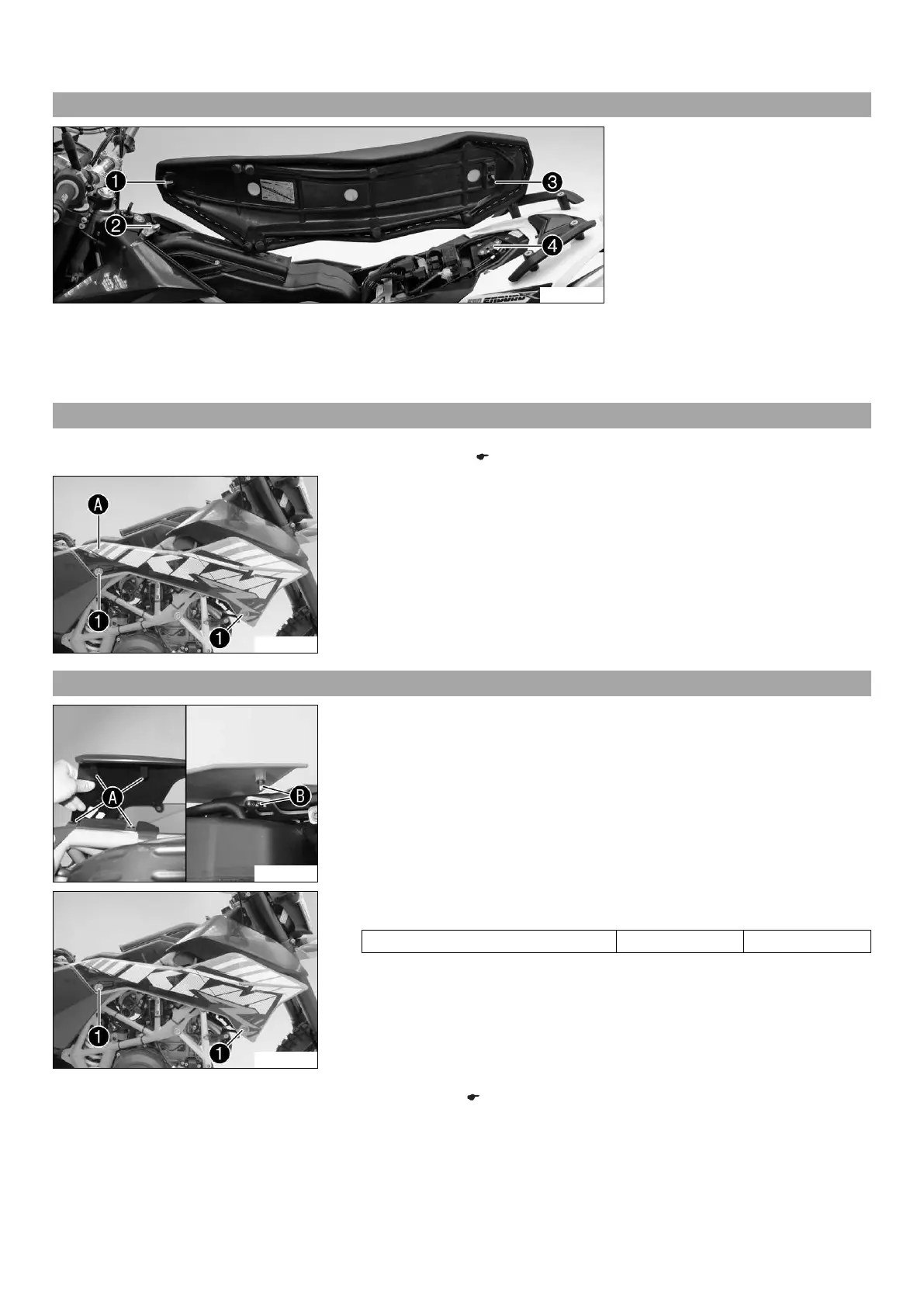

12.4 Mounting the seat
601782-10
– Hook slot 1 of the seat onto screw 2, press the rear downward and at the same time push it forward.
– Push locking pin 3 into lock housing 4 and push the back of the seat down until the locking pin locks in place with an audible
click.
– Finally, check that the seat is correctly mounted.
12.5 Taking off the side cover
Preparatory work
– Remove the seat. ( p. 62)
202029-10
Main work
– Remove screws 1.
– Pull off the side cover in area A and take off from above.
– Repeat the operation on the opposite side.
12.6 Mounting the side cover
202030-10
Main work
– Attach the side cover in area A and engage it in area B.
202029-11
– Mount and tighten screws 1.
Guideline
Screw, side cover M6 5 Nm (3.7 lbf ft)
– Repeat the operations on the opposite side.
Finishing work
– Mount the seat. ( p. 63)
