KTM 690 Enduro R EU 2012 User Manual

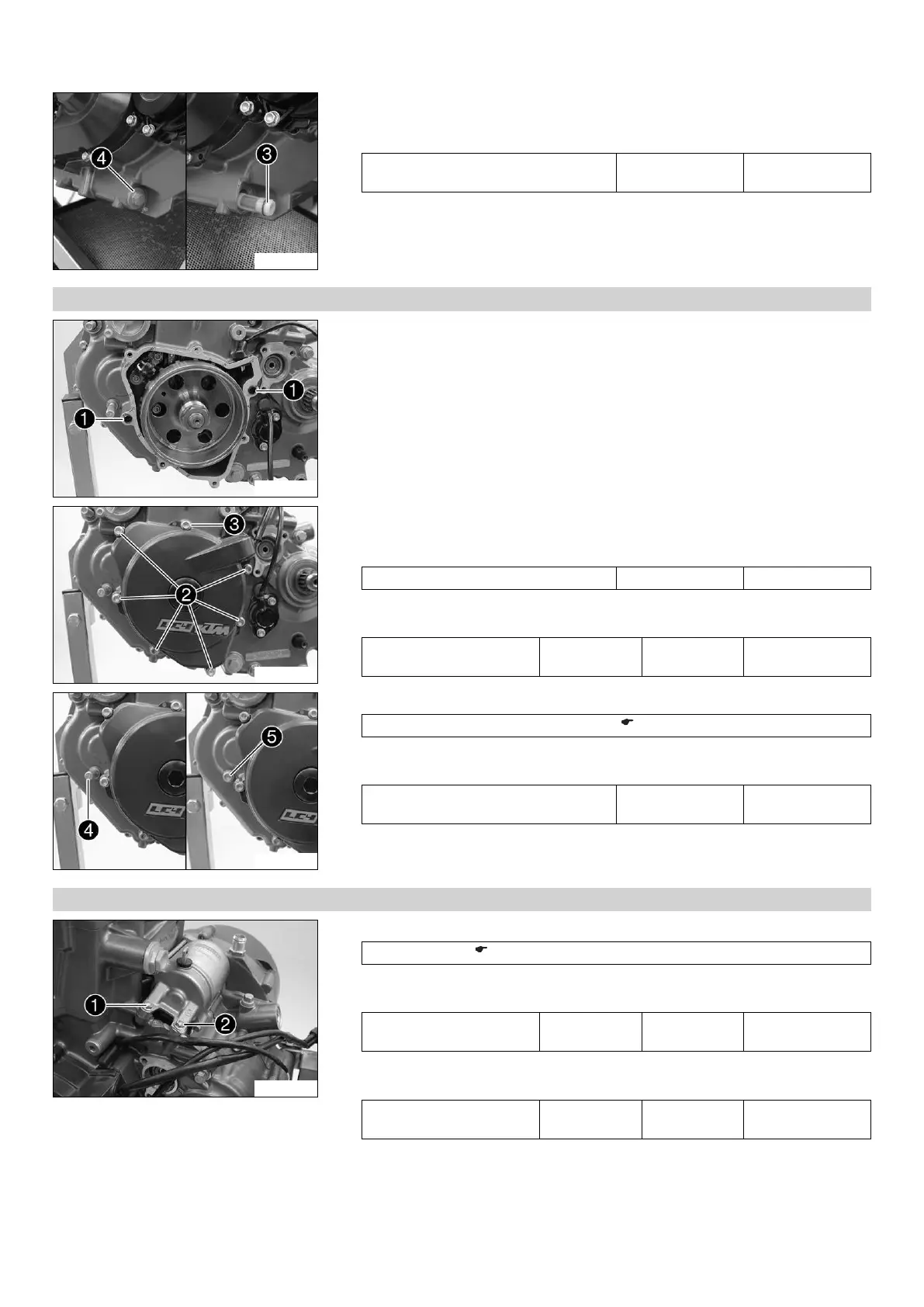

17 ENGINE 163
300161-11
– Position the oil screen 3 with O-rings.
– Mount and tighten screw plug 4 with the O-ring.
Guideline
Plug, oil screen M20x1.5 15 Nm
(11.1 lbf ft)
17.5.32 Installing alternator cover
300005-10
– Apply sealing compound lightly in the area of the cable sleeve.
– Install the dowel 1. Put on the alternator cover seal.
300004-11
– Position the alternator cover.
– Mount and tighten screws 2.
Guideline
Screw in alternator cover M6 10 Nm (7.4 lbf ft)
– Mount and tighten screw 3.
Guideline
Screw, alternator cover
(chain shaft through-hole)
M6 10 Nm
(7.4 lbf ft)
Loctite
®
243™
300024-11
– Remove special tool 4.
Engine blocking screw (77329010000) ( p. 222)
– Mount and tighten screw 5.
Guideline
Screw plug, crankshaft clamp M8 20 Nm
(14.8 lbf ft)
17.5.33 Installing the starter motor
302576-10
– Grease O-ring. Mount the starter motor.
Long-life grease ( p. 212)
– Mount and tighten screw 1.
Guideline
Screw, starter motor M6 10 Nm
(7.4 lbf ft)
Loctite
®
243™
– Mount and tighten screw 2.
Guideline
Screw, starter motor with
oil throttle
M6 10 Nm
(7.4 lbf ft)
Loctite
®
243™
