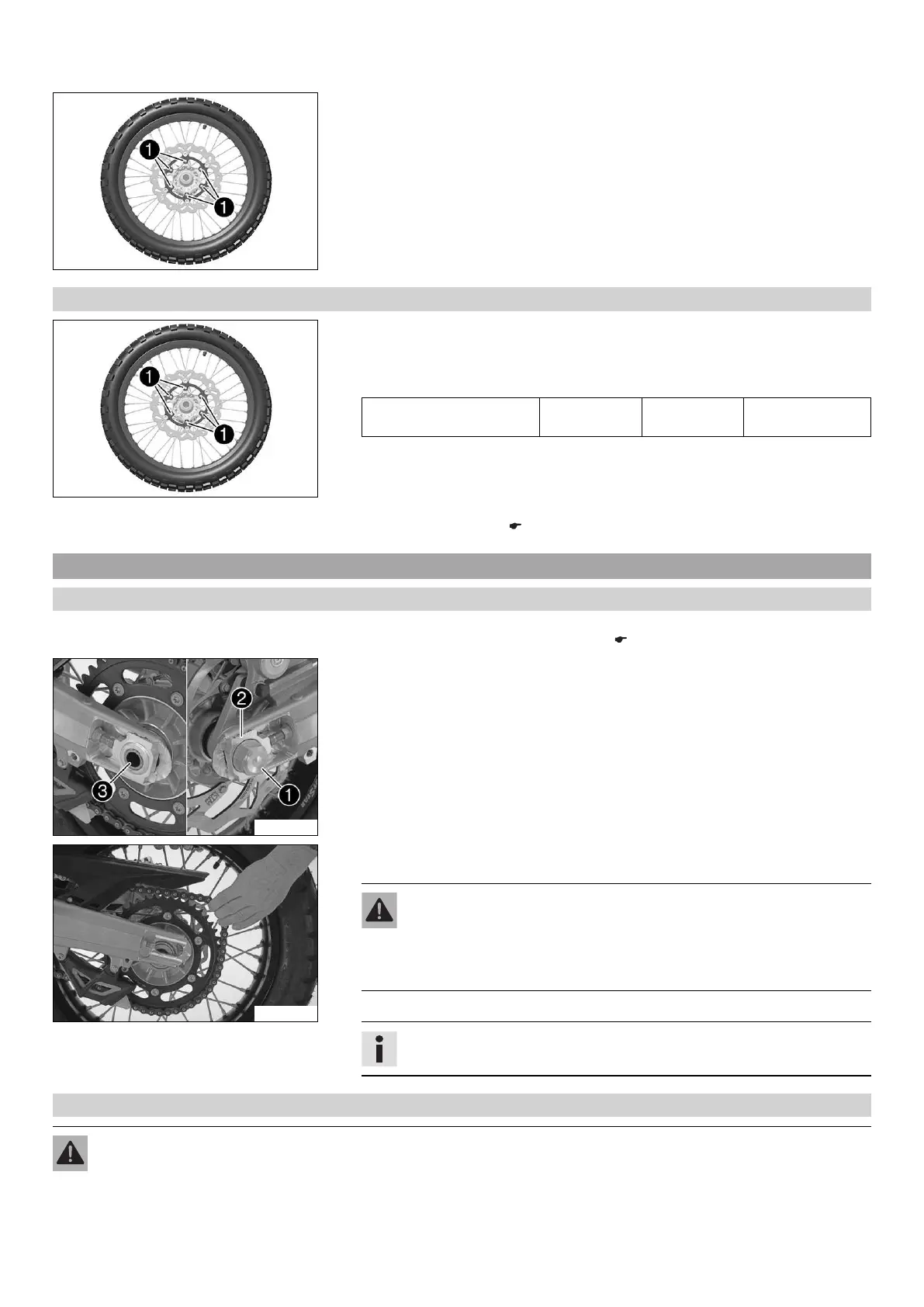

13 WHEELS 75
202087-10
Main work
– Remove screws 1. Take off the brake disc.
13.6.4 Installing the brake disc of the front brake
202087-10
Main work
– Clean the contact surface of the brake disc.
– Position the brake disc with the label facing outward. Mount and tighten screws 1.
Guideline
Screw, front brake disc M6 14 Nm
(10.3 lbf ft)
Loctite
®
243™
Finishing work
– Install the front wheel. ( p. 74)
13.7 Rear wheel
13.7.1 Removing rear wheel
Preparatory work
– Raise the motorcycle with the lift stand. ( p. 10)
100267-10
Main work
– Press the brake caliper by hand on to the brake disc in order to press back the
brake piston.
– Remove nut 1. Remove chain adjuster 2.
– Holding the rear wheel, withdraw the wheel spindle 3.
100268-01
– Push the rear wheel forwards as far as possible and take the chain off the rear
sprocket.
Warning
Danger of accidents Reduced braking effect caused by damaged brake
discs.
– Always lay the wheel down in such a way that the brake discs are not
damaged.
– Take the rear wheel out of the swing arm.
Info
Do not operate the foot brake when the rear wheel is removed.
13.7.2 Installing the rear wheel
Warning
Danger of accidents Reduced braking efficiency due to oil or grease on the brake discs.
– Always keep the brake discs free of oil and grease, and clean them with brake cleaner when necessary.
