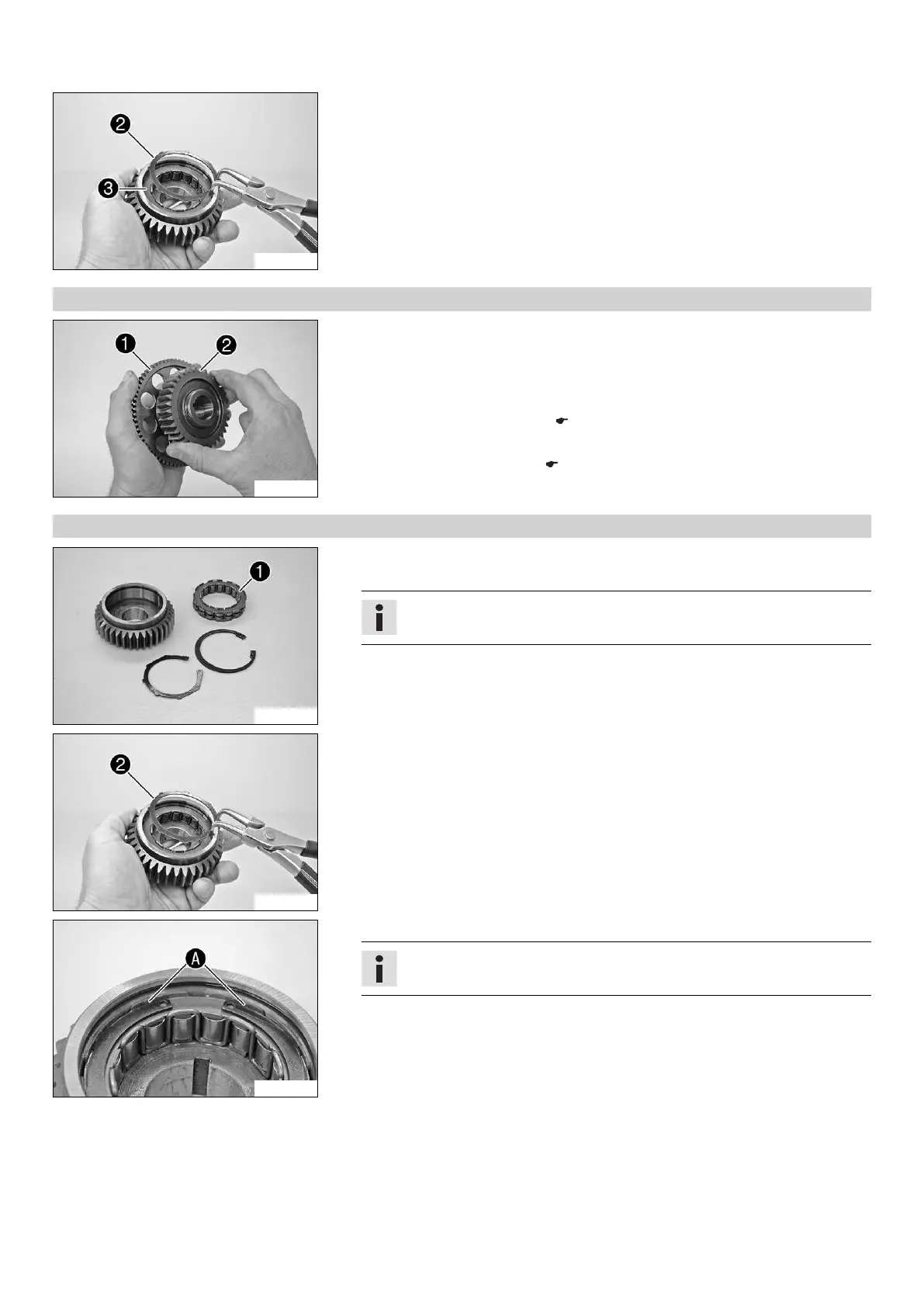

17 ENGINE 147
300128-10
– Compress the expansion ring 2 and remove it, using suitable pliers.
– Take the freewheel 3 out of the primary gear.
17.4.41 Checking freewheel
300131-10
– Insert the freewheel gear 1 in the primary gear 2, turning the primary gear clock-
wise; do not twist!
– Check the locking action of the freewheel gear 1.
» If the primary gear does not turn clockwise or if it does not lock counterclock-
wise:
– Remove the freewheel. ( p. 146)
– Turn the freewheel 180°.
– Install the freewheel. ( p. 147)
17.4.42 Installing freewheel
300129-10
– Lubricate all parts thoroughly.
– Push the freewheel 1 into the primary gear.
Info
Note the direction of rotation.
300128-11
– Install the expansion ring 2.
300130-10
– Make sure that all lugs of the expansion ring locate in the slits A of the freewheel.
Info
If necessary, use a screwdriver to ease them in.
