9 SHOCK ABSORBER, SWINGARM 45
300541-10

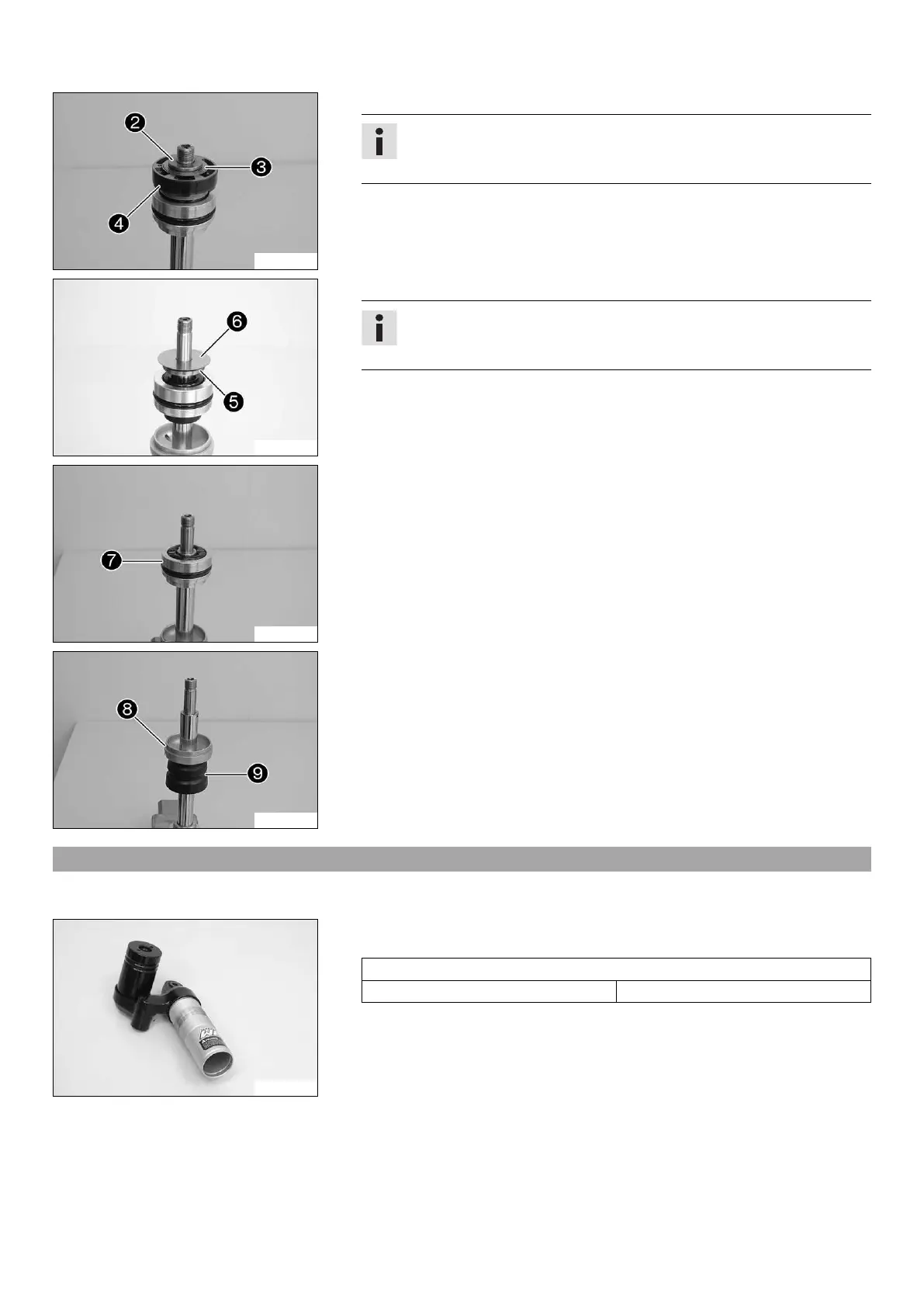

– Remove supporting plate 2 and rebound shim stack 3 together with piston 4.
Info
Thread the rebound shim set on a screwdriver and set the parts down
together.
200572-11
– Remove compression shim stack 6 with supporting plate 5.
Info
Thread the compression shim stack on a screwdriver and set the parts down
together.
300542-10
– Remove seal ring retainer 7.
300543-10
– Remove locking cap 8 and rubber buffer 9.
9.15 Checking the damper
Condition
The damper has been disassembled.
201280-10
– Measure the inside diameter at both ends and in the center of the damper car-
tridge.
Damper cartridge
Minimum diameter 46.10 mm (1.815 in)
» If the measured value is greater than the specified value:
– Change the damper cartridge.
– Check the damper cartridge for damage and wear.
» If there is damage or wear:
– Change the damper cartridge.
