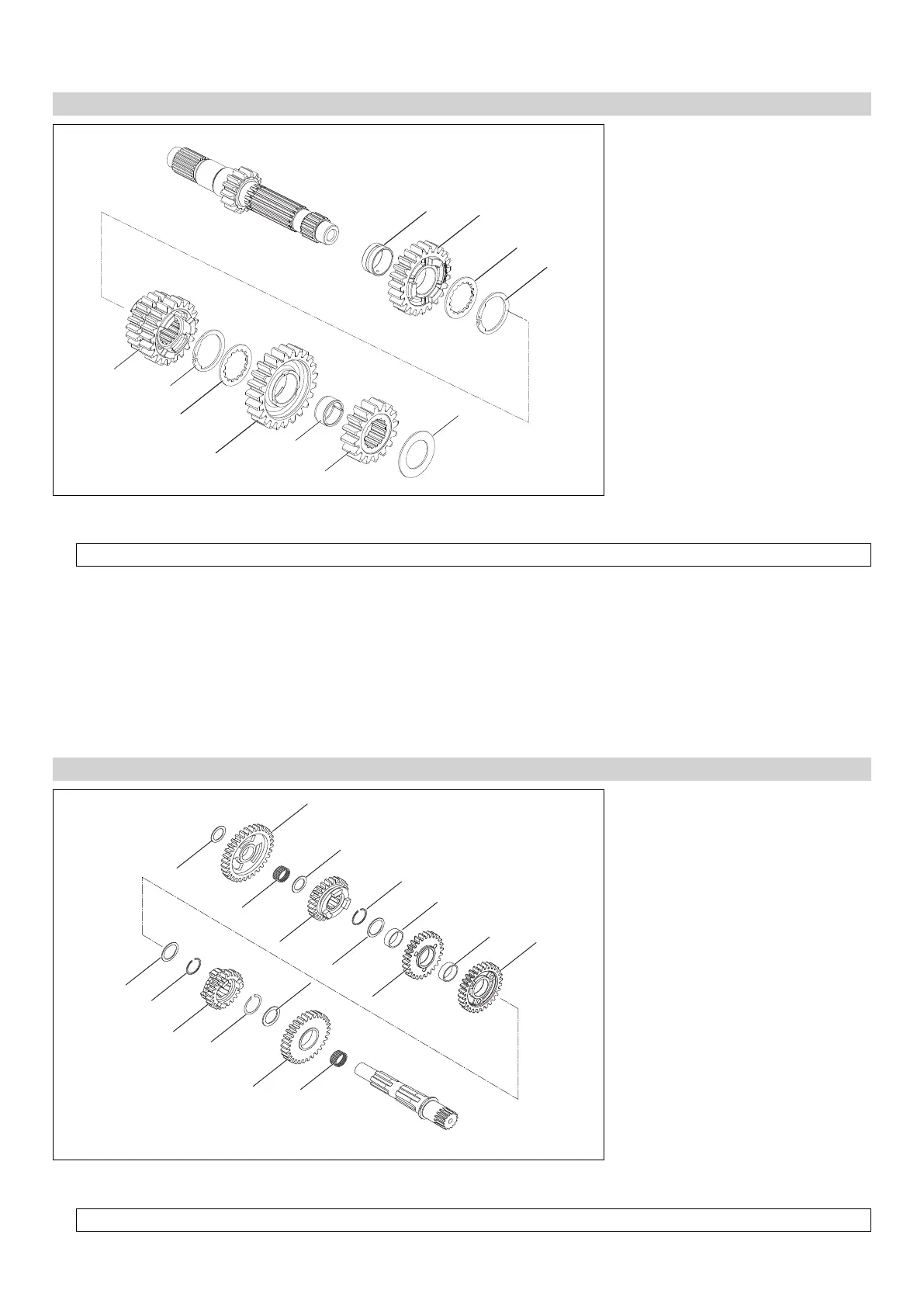

17.4.34 Disassembling the main shaft
33
55
77
88
99
bkbk
blbl
11
44
66
22
301980-01
– Fix the main shaft in the vise with the geared end facing downward.
Guideline
Use soft jaws.
– Remove stop disk 1 and second-gear fixed gear 2.
– Remove the sixth-gear idler gear 3.
– Remove the split needle bearing 4 and stop disk 5.
– Remove lock ring 6.
– Remove the third/fourth-gear sliding gear 7.
– Remove lock ring 8.
– Remove stop disk 9 and fifth-gear idler gear bk.
– Remove bearing bush bl.
17.4.35 Dismantling countershaft
22
33
11
44
55
66
77
88
99
bkbk
blbl
bsbs
brbr
bpbp
bobo
bnbn
bmbm
bqbq
300128-01
– Fix the countershaft in the vise with the geared end facing downward.
Guideline
Use soft jaws
