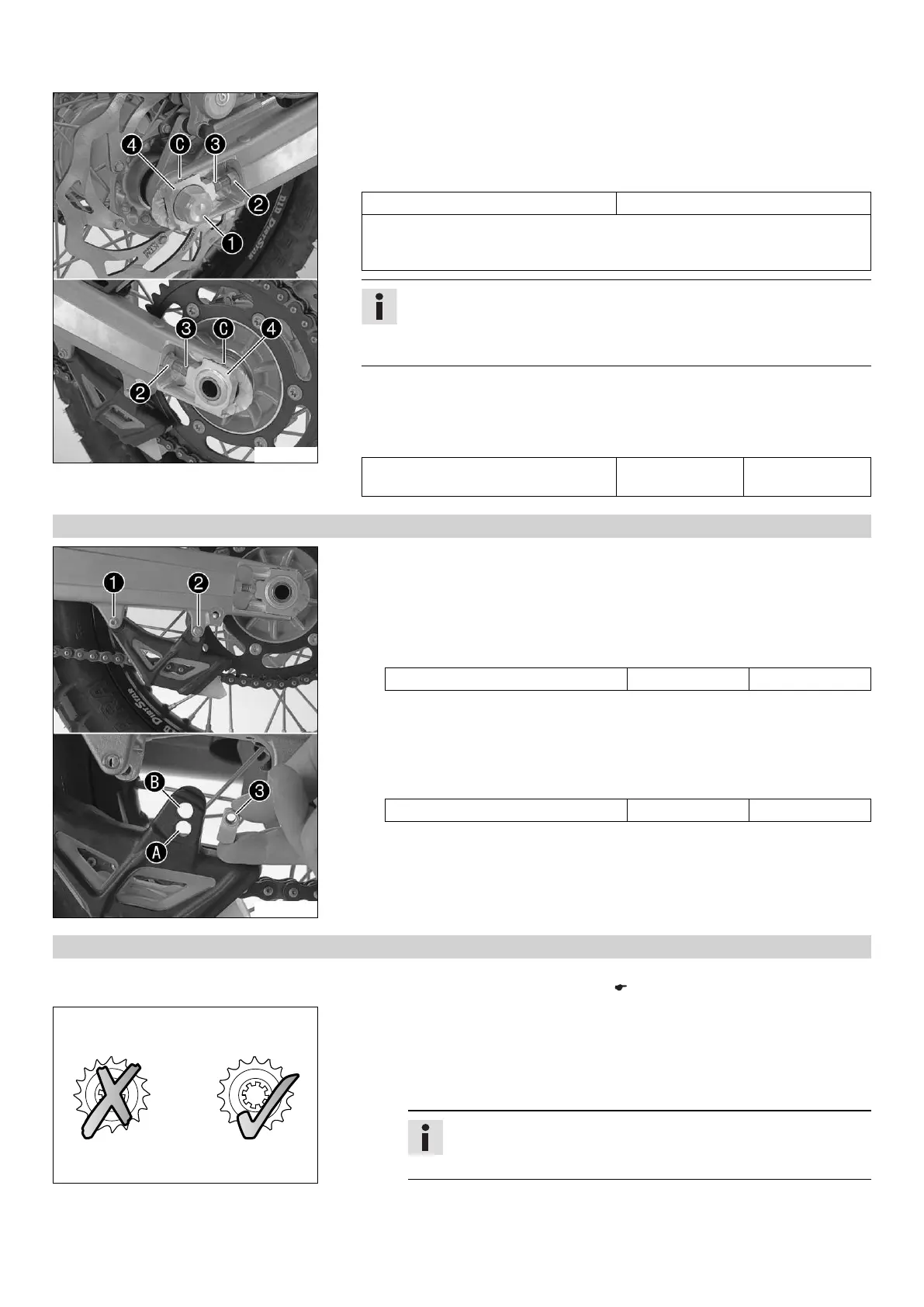

13 WHEELS 78
100250-10
Main work
– Loosen nut 1.
– Loosen nuts 2.
– Adjust the chain tension by turning adjusting screws 3 on the left and right.
Guideline
Chain tension 5 mm (0.2 in)
Turn the left and right adjusting screws 3 so that the markings on the left
and right chain adjusters 4 are in the same position relative to the reference
marks C. The rear wheel is then correctly aligned.
Info
The upper chain section must be taut.
Chain wear is not always even. Repeat this measurement at different chain
positions.
– Tighten nuts 2.
– Make sure that the chain adjusters 4 are installed correctly on adjusting screws 3.
– Tighten nut 1.
Guideline
Nut, rear wheel spindle M25x1.5 90 Nm
(66.4 lbf ft)
13.7.7 Adjusting chain guide
100299-10
– Remove screws 1 and 2. Take off the chain guide.
Condition
Number of teeth: ≤ 44 teeth
– Insert nut 3 in hole A. Position the chain guide.
– Mount and tighten screws 1 and 2.
Guideline
Screw, chain guide M6 8 Nm (5.9 lbf ft)
Condition
Number of teeth: ≥ 45 teeth
– Insert nut 3 in hole B. Position the chain guide.
– Mount and tighten screws 1 and 2.
Guideline
Screw, chain guide M6 8 Nm (5.9 lbf ft)
13.7.8 Checking the chain, rear sprocket, engine sprocket, and chain guide
Preparatory work
– Raise the motorcycle with the lift stand. ( p. 10)
100132-10
Main work
– Shift the transmission to neutral.
– Check the rear sprocket and engine sprocket for wear.
» If the rear sprocket and engine sprocket are worn:
– Change the power set.
Info
The engine sprocket, rear sprocket, and chain should always be
replaced together.
