Kubota G2000 4WS User Manual

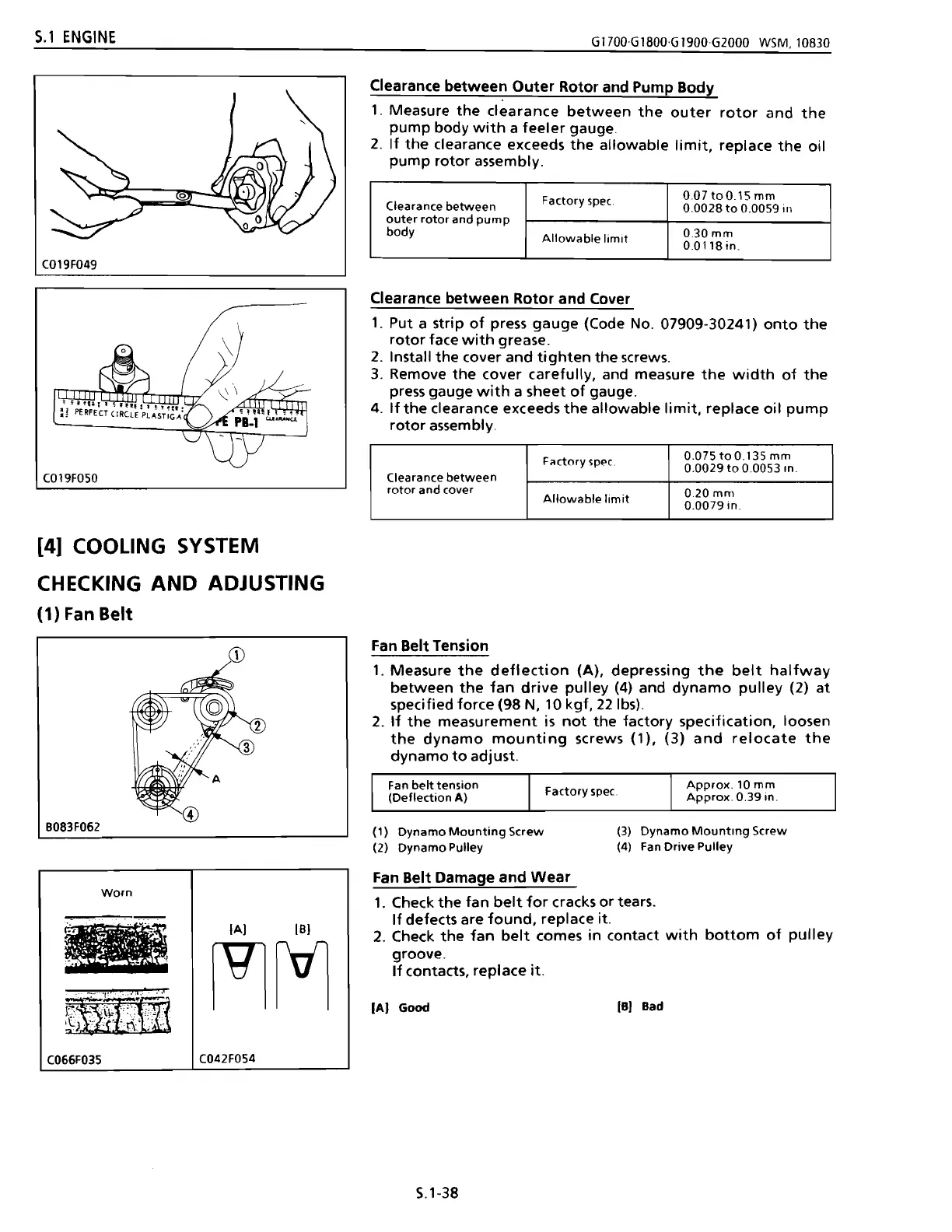

S.l ENGINE
G 1700·G 1800·G 1900G2000 WSM, 10830
Clearance between Outer Rotor and Pump Body
1. Measure the clearance between the outer rotor and the
pump body with a feeler gauge.
2. If the clearance exceeds the allowable limit, replace the oil
pump rotor assembly.
C019F049
Clearance
between
Factory spec
0.07 toO.1S
mm
0.0028 to 0.0059 in
outer rotor and pump
body
Allowable limit
0.30 mm
0.0118 in.
C019F050
Clearance between Rotor and Cover
1. Put a strip of press gauge (Code No. 07909-30241) onto the
rotor face with grease.
2. Install the cover and tighten the screws.
3. Remove the cover carefully, and measure the width of the
press gauge with a sheet of gauge.
4. If the clearance exceeds the allowable limit, replace oil pump
rotor assembly.
Fi'lctory Sp4"C
0.075 to 0.135 mm
Clearance between
0.0029 to 0.0053 In.
rotor and cover
Allowable limit
0.20 mill
0.0079 in.
[4] COOLING SYSTEM
CHECKING
AND ADJUSTING
(1) Fan Belt
B083F062
Worn
IAI IBI
-
MM
• ~I!
C042F054
C066F035
Fan Belt Tension
1. Measure the deflection (A), depressing the belt halfway
between the fan drive pulley (4) and dynamo pulley (2) at
specified force (98 N, 10 kgf, 22Ibs).
2. If the measurement is not the factory specification, loosen
the dynamo mounting screws (1), (3) and relocate the
dynamo to adjust.
Fan belt tension
Approx. 10 mm
Factory spec
(Deflection A)
Approx. 0.39 in.
(1)
Dynamo Mounting Screw
(3)
Dynamo Mounting Screw
(2)
Dynamo Pulley
(4)
Fan Drive Pulley
Fan Belt Damage and Wear
1. Check the fan belt for cracks or tears.
If defects are found, replace it.
2. Check the fan belt comes in contact with bottom of pulley
groove.
If contacts, replace it .
IA) Good
IBJ Bad
5.1-38
184
