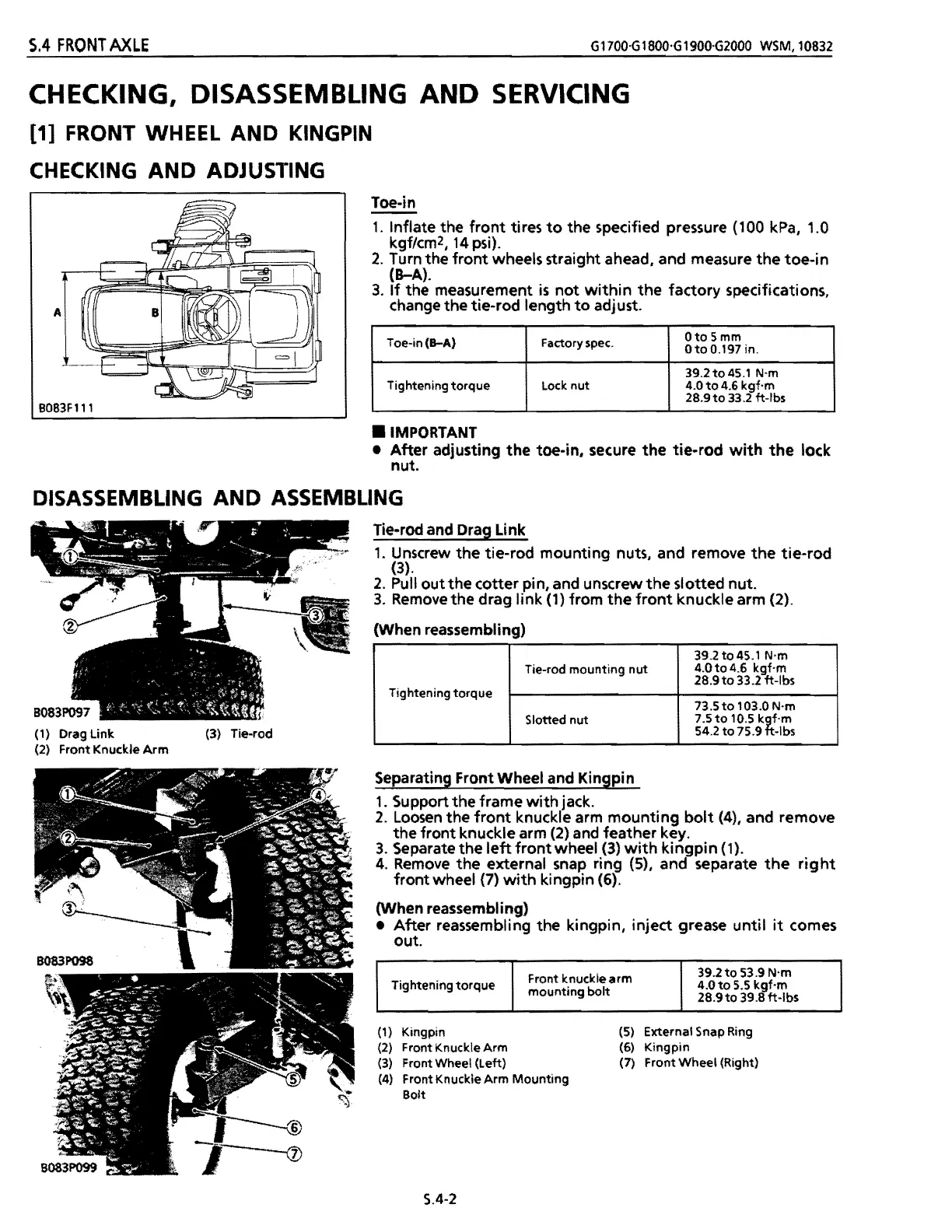

5.4
FRONT
AXLE
61700·61800·61900·62000 WSM,10832
CHECKING, DISASSEMBLING AND SERVICING
[1] FRONT WHEEL AND KINGPIN
CHECKING
AND
ADJUSTING
A
B083Fll1
Toe-in
1.
Inflate the
front
tires
to
the specified pressure (100
kPa,
1.0
kgf/cm2,
14
psi).
2.
Turn the
front
wheels straight ahead, and measure the toe-in
(B-A).
3.
If
the measurement
is
not
within
the factory specifications,
change the tie-rod length
to
adjust.
Toe-in (B-A)
Factory
spec.
Oto
5mm
OtoO.197in.
Tightening torque
Lock
nut
39.2
to
45.1
N'm
4.0
to
4.6 kgf·m
28.9
to
33.2 ft-Ibs
B083P097
•
IMPORTANT
• After adjusting the toe-in. secure the tie-rod
with
the
lock
nut.
DISASSEMBLING
AND
ASSEMBLING
Tie-rod and Drag Link
1.
Unscrew the tie-rod mounting nuts, and remove
the
tie-rod
(3).
2.
Pull
out the cotter pin, and unscrew
the
slotted nut.
3.
Remove
the drag
link
(1)
from
the
front
knuckle arm (2).
(When reassembling)
(1)
Drag Link (3) Tie-rod
(2)
Front Knuckle
Arm
39.2
to
45.1
N'm
Tie-rod mounting nut
4.0
to
4.6 kgf·m
28.9
to
33.2 ft-Ibs
Tightening torque
73.5
to
103.0 N'm
Slotted nut
7.5
to
10.5
kJltm
54.2
to
75.9 -Ibs
Separating Front Wheel and Kingpin
1.
Support the frame
with
jack.
2.
Loosen
the
front
knuckle arm mounting
bolt
(4), and remove
the front knuckle arm
(2)
and
feather key.
3.
Separate the
left
front
wheel (3)
with
kingpin
(1).
4.
Remove
the external
snap
ring (5), and separate
the
right
front wheel (7)
with
kingpin (6).
(When reassembling)
• After reassembling the kingpin, inject grease until
it
comes
out.
Tightening
torque
Front knuckle arm
mounting
bolt
39.2
to
53.9 N'm
4.0
to
5.5
kgf'm
28.9
to
39.8 ft-Ibs
(1)
(2)
(3)
(4)
Kingpin
Front Knuckle Arm
Front Wheel (Left)
Front Knuckle Arm Mounting
Bolt
(5)
(6)
(7)
External Snap
Ring
Kingpin
Front Wheel (Right)
S.4-2
