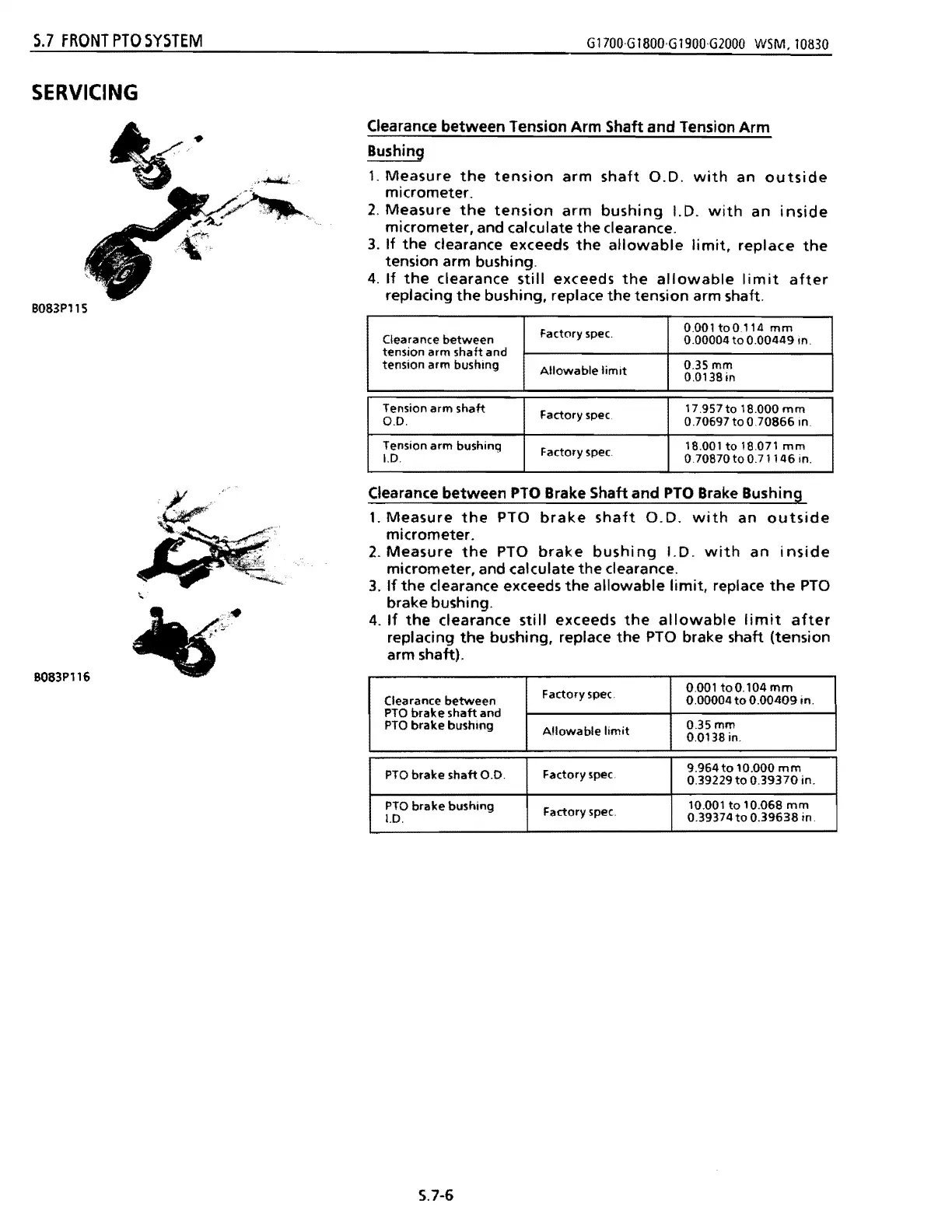

S.7 FRONT PTO SYSTEM
G1700'GT800'GT900'G2000 WSM,10830
SERVICING
B083Pl15
8083P116
Clearance between
tension arm shaft and
Factory SPfK
I 0.001 toO"4 mm
0.00004 to 0.00449 In.
tension arm bushing
Allowable limit
0.35mm
0.0138 in
Clearance between Tension Arm Shaft and Tension Arm
Bushing
1. Measure the tension arm shaft O.D. with an outside
micrometer.
2. Measure the tension arm bushing I.D. with an inside
micrometer, and calculate the clearance.
3. If the clearance exceeds the allowable limit, replace the
tension arm bushing.
4. If the clearance still exceeds the allowable limit after
replacing the bushing, replace the tension arm shaft.
Clearance
between PTa Brake Shaft and PTa Brake Bushing
1. Measure the PTO brake shaft O.D. with an outside
micrometer.
2. Measure the PTO brake bushing I.D. with an inside
micrometer, and calculate the clearance.
3. If the clearance exceeds the allowable limit, replace the PTO
brake bushing.
4. If the clearance still exceeds the allowable limit after
replacing the bushing, replace the PTO brake shaft (tension
arm shaft).
0.001 toO.104mm
Factory spec
0.00004 to 0.00409 in.
PTO brake shaft and
PTO brake bushing
Clearance
between
0.35mm
Allowable limit
0.0138 in.
Tension
arm shaft
0.0.
Factory spec
17.957to 18.000 mm
0.70697 to 0.70866 In.
Tension arm bushing
1.0.
Factory
spec.
18.001 to 18.071 mm
°70870 to 0.71146 in.
PTO brake shaft 0.0.
Factory spec.
9.964
to 10.000 mm
0.39229 to 0.39370 in.
PTO brake bushing
1.0.
Factory spec.
10.001
to 10.068 mm
0.39374 to 0.39638 in.
S.7-6
