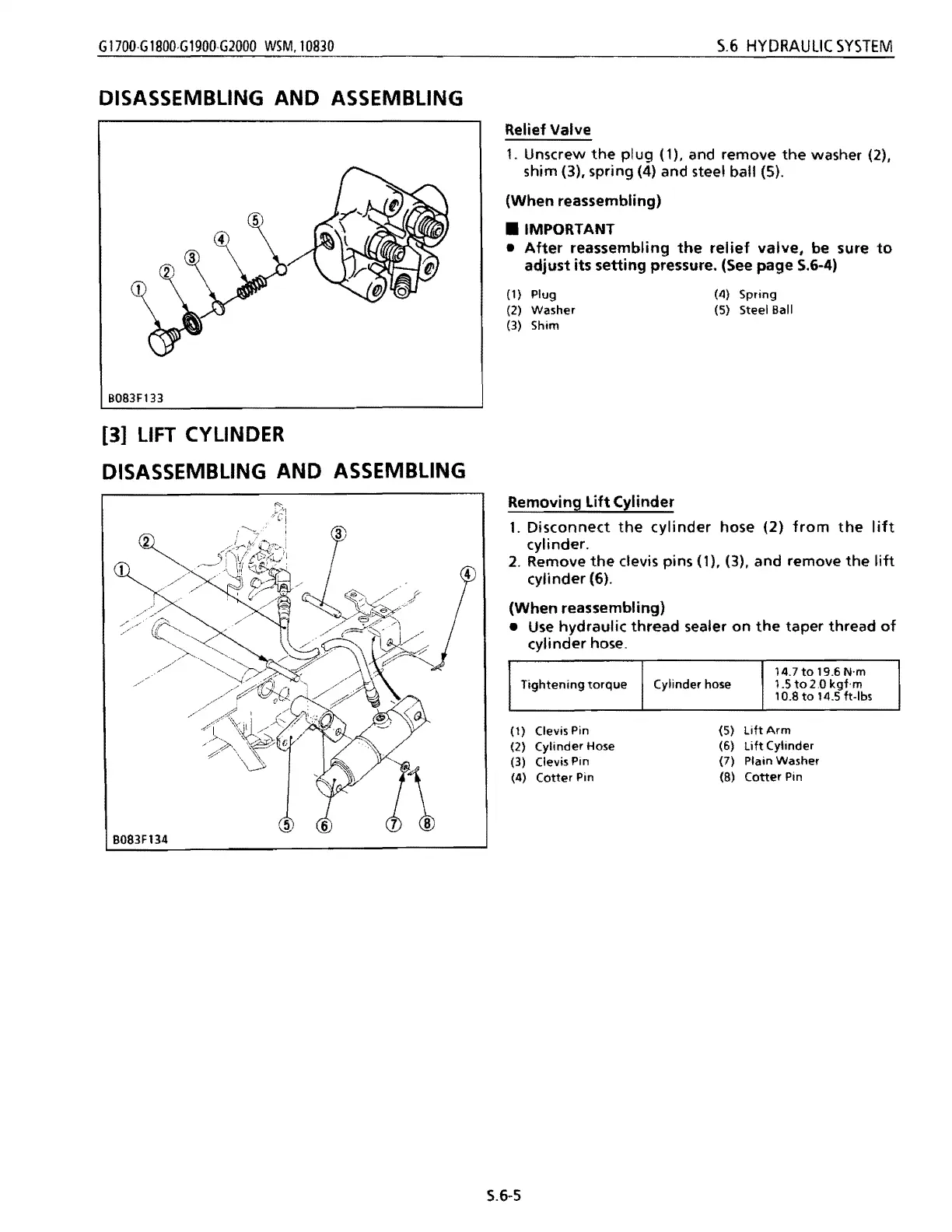

GI700·G1800·G1900·G2000 WSM.l0830 S.6 HYDRAULIC SYSTEM
DISASSEMBLING AND ASSEMBLING
BOS3F 133
[3] LIFT CYLINDER
DISASSEMBLING
AND ASSEMBLING
Relief Valve
1. Unscrew the plug (1). and remove the washer (2),
shim (3), spring (4) and steel ball (5).
(When reassembling)
• IMPORTANT
•
After reassembling the relief valve, be sure to
adjust its setting pressure. (See page 5.6-4)
(1) Plug (4) Spring
(2) Washer
(5) Steel Ball
(3) Shim
Removing Lift Cylinder
1. Disconnect the cylinder hose (2) from the lift
cylinder.
2. Remove the clevis pins (1), (3), and remove the lift
cylinder (6).
(When reassembling)
• Use hydraulic thread sealer on the taper thread of
cylinder hose.
Tightening torque
Cylinder hose
14.7to 19.6N·m
1.5 to 2.0 kgf·m
1 O.S to 14.5 ft·lbs
(1) Clevis Pin
(5) lift Arm
(2)
Cylinder Hose
(6)
Lift Cylinder
(3) Clevis Pin
(7) Plain
Washer
(4)
Cotter Pin
(S)
Cotter Pin
5.6-5
