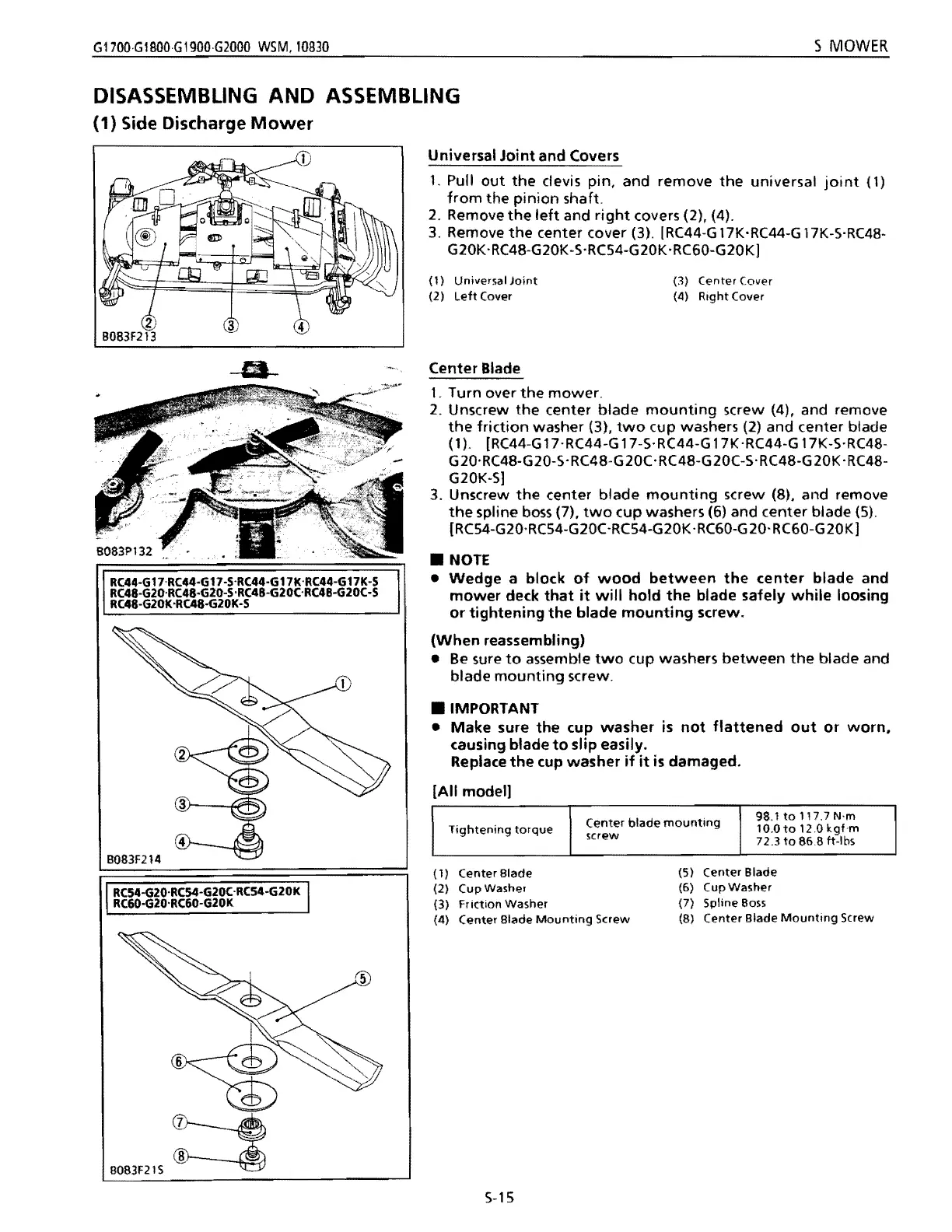

DISASSEMBLING AND ASSEMBLING
(1) Side Discharge Mower
RCS4-G20'RCS4-G20C'RC54-G20K
RC60·G20·RC60-G20K
Universal Joint and Covers
1. Pull out the clevis pin, and remove the universal joint (l)
from the pinion shaft,
2, Remove the left and right covers (2), (4),
3, Remove the center cover (3), [RC44-G17K·RC44-G17K-S·RC48-
G20K -RC48-G20K -S-RC54-G20K -RC60-G20
K)
(1) Universal Joint
(3) Center Cover
(2)
Left Cover
(4) Right Cover
Center Blade
1. Turn over the mower,
2, Unscrew the center blade mounting screw (4), and remove
the friction washer (3), two cup washers (2) and center blade
(1),
[RC44-G 17'RC44-G 17-S-RC44-G 17K 'RC44-G 17K-S'RC48-
G20-RC48-G20-S-RC48-G20C'RC48-G20C-S'RC48-G20K'RC48-
G20K-Sl
3. Unscrew the center blade mounting screw (8), and remove
the spline boss (7), two cup washers (6) and center blade (5),
(RC54-G20'RC54-G20C-RC54-G20K'RC60-G20'RC60-G20K]
• NOTE
• Wedge a block of wood between the center blade and
mower deck that it will hold the blade safely while loosing
or tightening the blade mounting screw.
(When reassembling)
• Be sure
to assemble two cup washers between the blade and
blade mounting screw,
• IMPORTANT
• Make sure the cup washer is not flattened out or worn.
causing blade to slip easily_
Replace
the cup washer if it is damaged.
[All model]
Tightening torque
Center blade mounting
screw
98,1
to 117,7 N'm
10,Oto 12,0 kgfm
72.3 to 86,8 ft-Ibs
(1) Center Blade
(5)
Center Blade
(2)
Cup Washel
(6) Cup
Washer
(3) Friction Washer
(7) Spline Boss
(4) Center Blade
Mounting Screw
(8)
Center Blade Mounting Screw
5-15
379
