G 1700·G 1800·G 1900·G2000 WSM, 10832
S.2 TRANSMISSION AND REAR AXLE

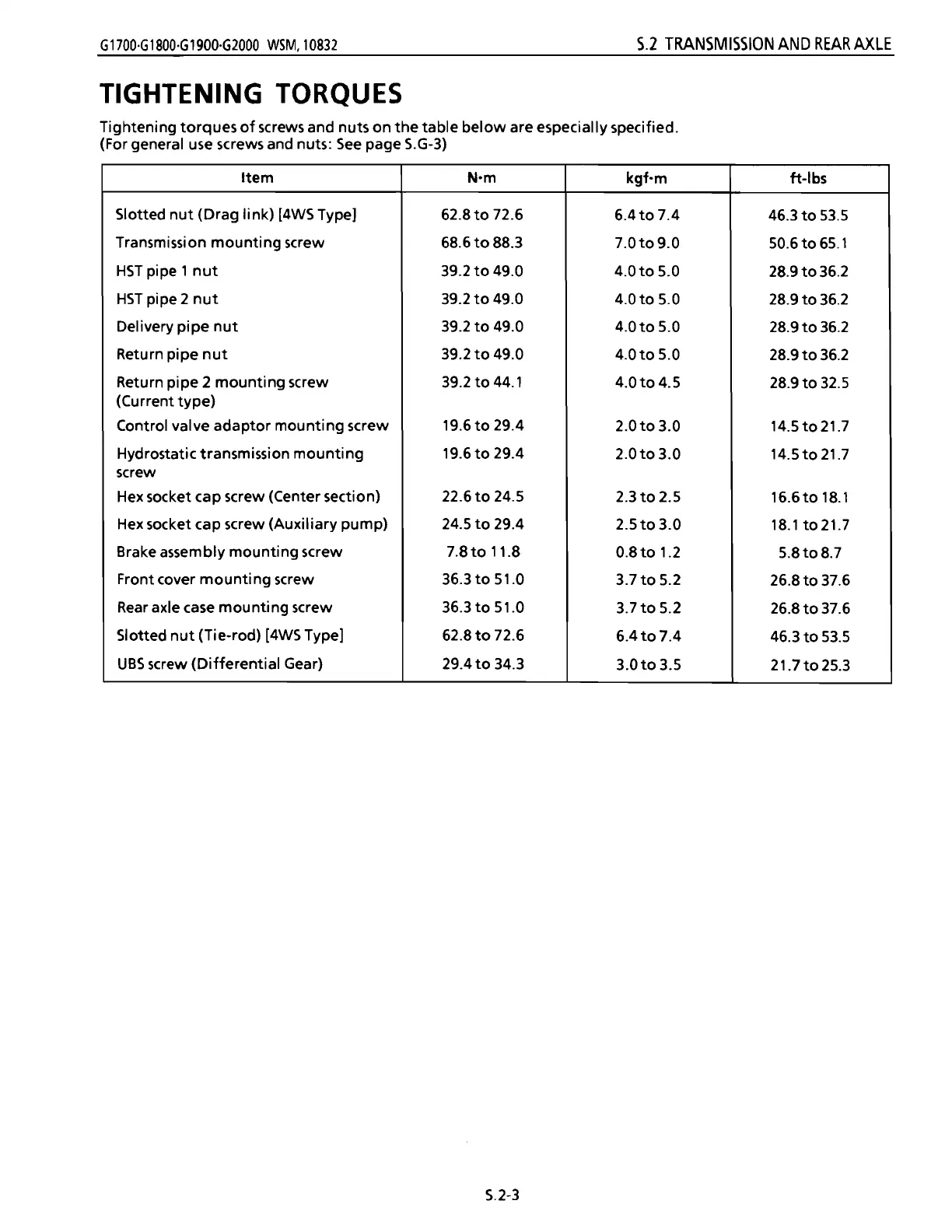

TIGHTENING TORQUES
Tightening torques of screws and nuts on the table below are especially specified.
(For general use screws and nuts:
See page S.G-3)
Item
N-m
kgf-m
ft-Ibs
Slotted
nut (Drag link) [4WS Type]
62.Sto 72.6
6.4t07.4
46.3 to 53.5
Transmission mounting screw 6S.6toSS.3
7.0t09.0
50.6 to 65.1
HST pipe 1 nut 39.2 to 49.0 4.0to 5.0
2S.9t036.2
HST pipe 2 nut 39.2 to 49.0 4.0 to 5.0
2S.9 to 36.2
Delivery
pipe nut 39.2 to 49.0
4.0to 5.0
2S.9to
36.2
Return pipe nut 39.2 to 49.0
4.0to 5.0
2S.9to
36.2
Return pipe 2 mounting screw 39.2 to 44.1
4.0to 4.5
2S.9 to 32.5
(Current type)
Control valve adaptor mounting screw
19.6
to 29.4
2.0to 3.0 14.5 to 21.7
Hydrostatic transmission
mounting 19.6 to 29.4
2.0to 3.0 14.5t021.7
screw
Hex socket cap screw (Center section) 22.6 to 24.5
2.3
to 2.5
16.6to 1S.1
Hex socket cap screw (Auxiliary pump) 24.5 to 29.4
2.5to 3.0
1S.1 to 21.7
Brake assembly
mounting screw 7.S to 11.S
O.Sto 1.2
5.StoS.7
Front cover
mounting screw
36.3
to 51.0
3.7
to 5.2
26.Sto 37.6
Rear axle case mounting screw 36.3 to 51.0
3.7
to 5.2
26.St037.6
Slotted
nut (Tie-rod) [4WS Type] 62.Sto 72.6
6.4to 7.4
46.3
to 53.5
UBS screw (Differential Gear)
29.4
to 34.3
3.0to 3.5
21.7to 25.3
S.2-3
241
