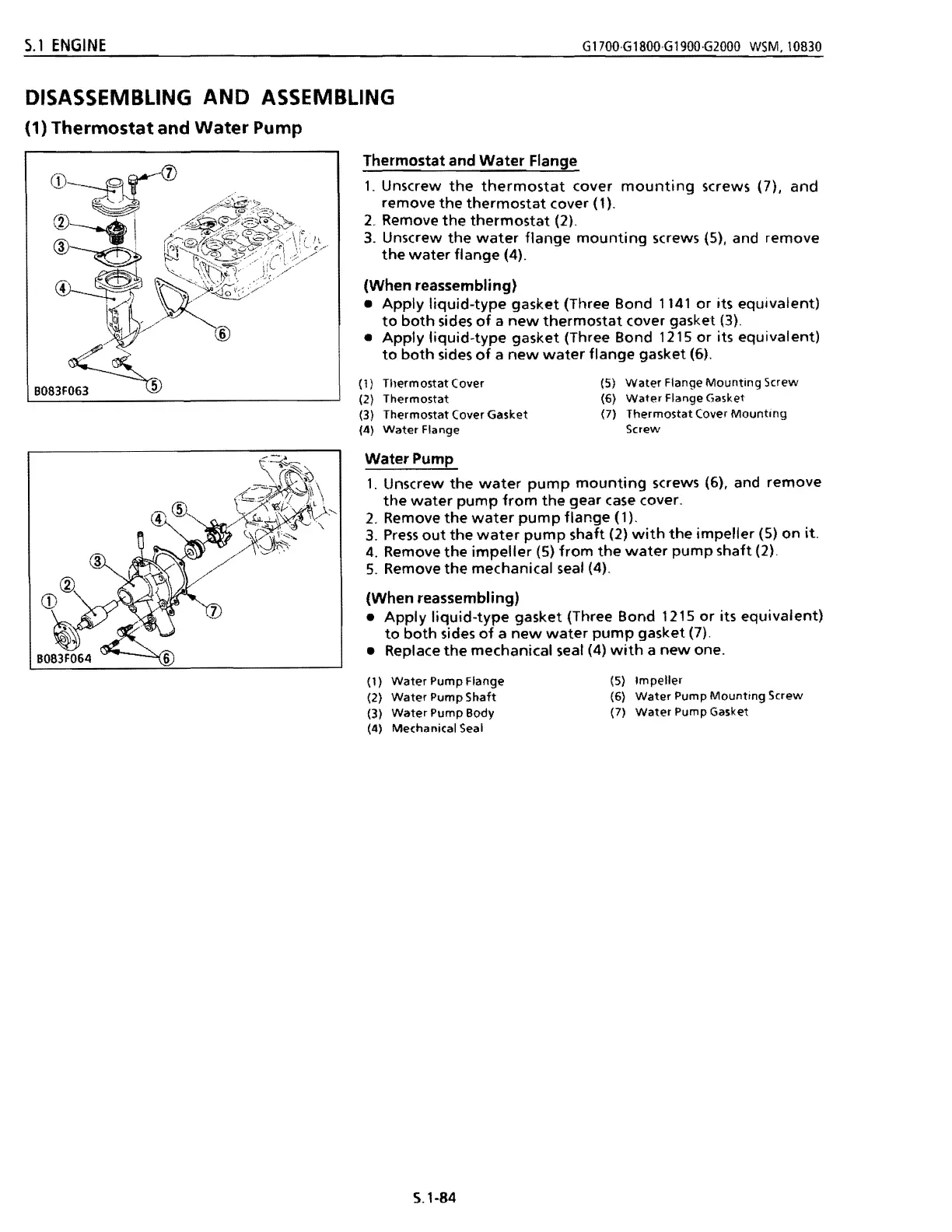

5.1 ENGINE G1700·GI800·G1900·G2000 WSM,10830
DISASSEMBLING AND ASSEMBLING
(1) Thermostat and Water Pump
Thermostat and Water Flange
1 Unscrew
the thermostat cover mounting screws (7), and
remove the thermostat cover (1).
2. Remove the thermostat (2).
3. Unscrew the water flange mounting screws (5), and remove
the water flange (4).
(When reassembling)
•
Apply liquid-type gasket (Three Bond 1141 or its equivalent)
to both sides of a new thermostat cover gasket (3) .
•
Apply liquid-type gasket (Three Bond 1215 or its equivalent)
to both sides of a new water flange gasket (6).
(1) Tilermostat Cover
(5)
Water Flange Mounting Screw
(2) Thermostat
(6) Water Flange Gasket
(3)
Thermostat Cover Gasket
(7) Thermostat Cover Mounting
{4} Water Flange
Screw
Water Pump
1. Unscrew the water pump mounting screws (6), and remove
the water pump from the gear case cover.
2. Remove the water pump flange (1).
3. Press out the water pump shaft (2) with the impeller (5) on it.
4. Remove the impeller (5) from the water pump shaft (2).
5. Remove the mechanical seal (4).
(When reassembling)
•
Apply liquid-type gasket (Three Bond 1215 or its equivalent)
to both sides of a new water pump gasket (7).
• Replace
the mechanical seal (4) with a new one.
(1) Water Pump Flange
(5)
Impeller
(2) Water Pump Shaft
(6) Water Pump Mounting Screw
(3)
Water Pump Body
(7)
Water Pump Gasket
(4) Mechanical Seal
S.I-84
