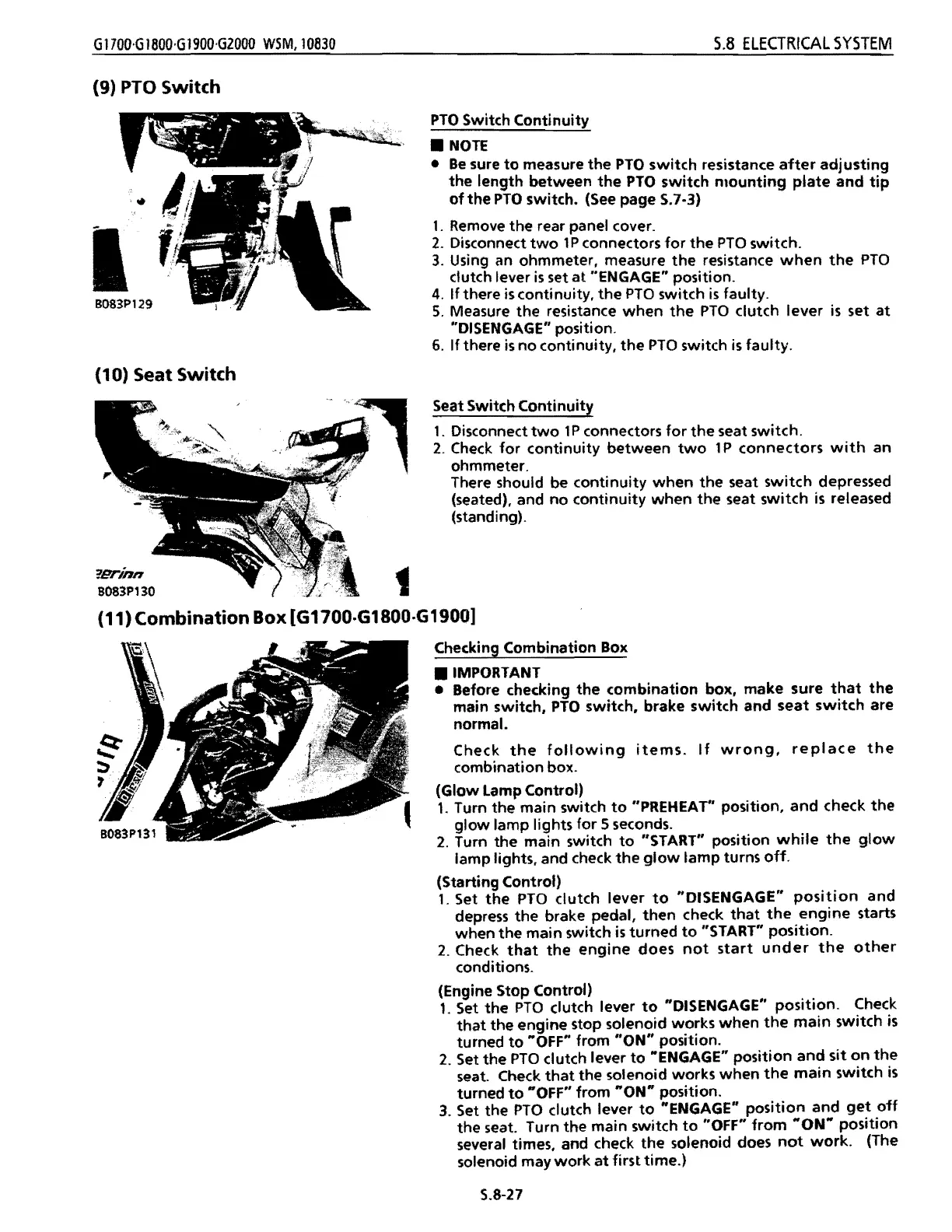

G 1700·G 1800'G 1900'G2000 WSM,10830
S.8 ELECTRICAL SYSTEM
(9) PTO Switch
PTO Switch Continuity
•
NOTE
• Be sure to measure the PTO switch resistance after adjusting
the length between the PTO switch mounting plate and tip
of the PTO switch. (See page S.7-3)
1. Remove the rear panel cover.
2. Disconnect two 1 P connectors for the PTO switch.
3. Using an ohmmeter, measure the resistance when the PTO
clutch lever is set at "ENGAGE" position.
4. If there is continuity, the PTO switch is faulty.
S. Measure the resistance when the PTO dutch lever is set at
"DISENGAGE" position.
6. If there is no continuity, the PTO switch is faulty.
(10) Seat Switch
Seat Switch Continuity
1. Disconnect two 1 P connectors for the seat switch.
2. Check for continuity between two 1 P connectors with an
ohmmeter.
There should be
continuity when the seat switch depressed
(seated), and
no continuity when the seat switch is released
(standing).
(11) Combination Box [G1700.G1800·G1900]
Checking Combination Box
• IMPORTANT
• Before checking
the combination box, make sure that the
main switch, PTO switch, brake switch and seat switch are
normal.
Check
the following items. If wrong, replace the
combination box.
(Glow Lamp Control)
1. Turn the main switch to "PREHEAr position, and check the
glow lamp lights for 5 seconds.
2. Turn the main switch to "START" position while the glow
lamp lights, and check the glow lamp turns off.
(Starting Control)
1. Set the PTO clutch lever to "DlSENGAGE" position and
depress the brake pedal, then check that the engine starts
when the main switch is turned to "START" position.
2. Check that the engine does not start under the other
conditions.
(Engine Stop Control)
1. Set the PTO dutch lever to "DISENGAGE" position. Check
that the engine stop solenoid works when the main switch is
turned
to "OFF" from "ON" position.
2. Set the PTO clutch lever to NENGAGE" position and sit on the
seat. Check that the solenoid works when the main switch is
turned to "OFF" from "ON" position.
3. Set the PTO clutch lever to "ENGAGE" position and get off
the seat. Turn the main switch to "OFF" from "ON" position
several times, and check
the solenoid does not work. (The
solenoid may
work at first time.)
I
B083P129
?erinn
B083P130
5.8-27
