S,S STEERING
G1700·G1BOO·G1900·G2000 WSM,10831

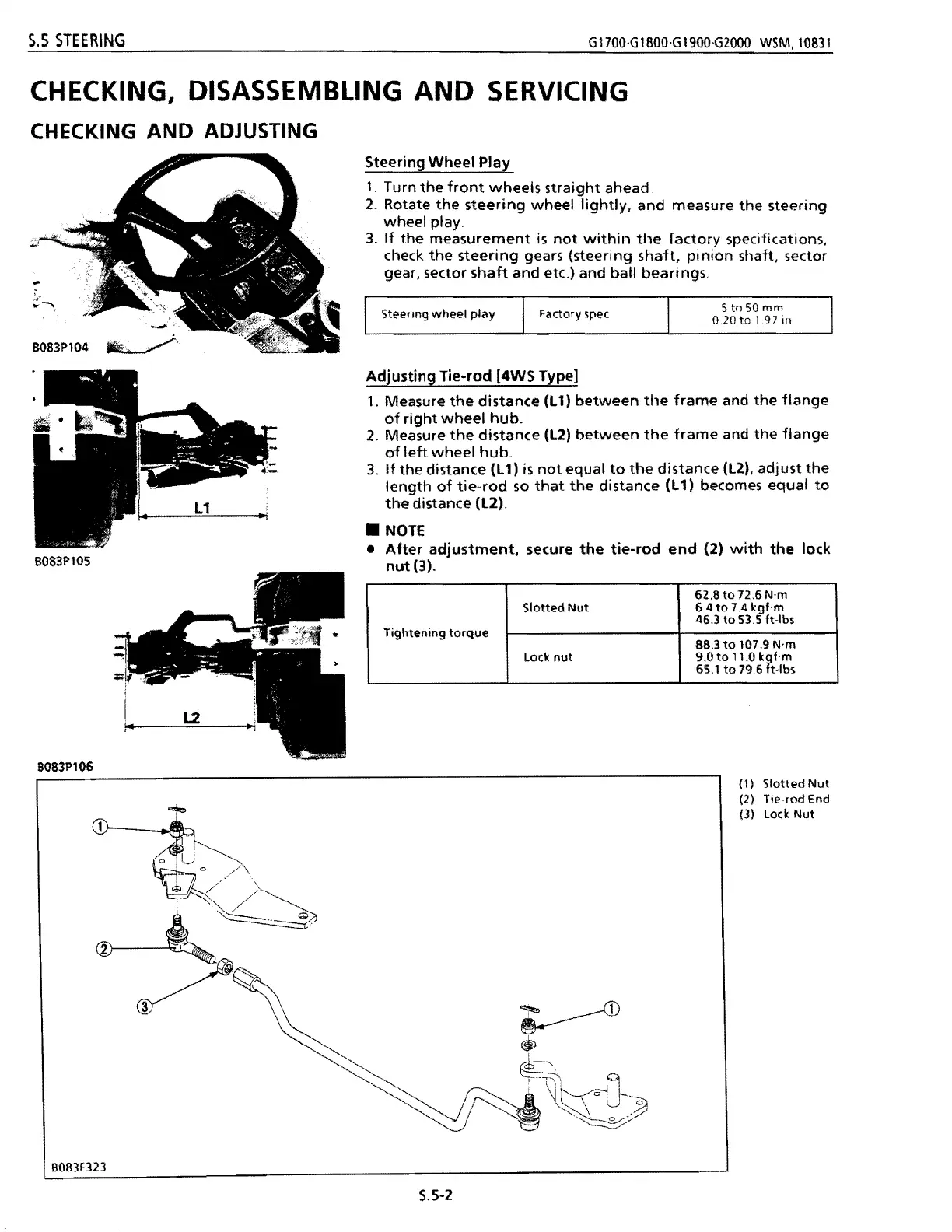

CHECKING, DISASSEMBLING AND SERVICING
CHECKING AND ADJUSTING
Steering Wheel Play
1. Turn the front wheels straight ahead
2. Rotate the steering wheel lightly, and measure the steering
wheel play.
3. If the measurement is not within the ractory specifications,
check the steering gears (steering shaft, pinion shaft, sector
gear, sector
shaft and etc.) and ball bearings.
5 to 50 mm
St!?ermg wlle!?1 play Factory spec
0.20 to 1.97 in
80831>105
Adjusting Tie-rod [4WS Type)
1. Measure the distance (ll) between the frame and the flange
of right wheel hub.
2. Measure the distance (l2) between the frame and the flange
of left wheel hub.
3. If the distance (l1) is not equal to the distance (l2), adj ust the
length of tie-rod so that the distance (l1) becomes equal to
the distance (l2) .
• NOTE
• After adjustment. secure the tie-rod end (2) with the lock
nut (3).
Tightening torque
Slotted Nut
62.8 to 12.6 N'm
6.4 to 7.4 kgf.m
46.3 to 53.5 ft-Ibs
Lock nut
88.3 to 107.9 N·m
9.0
to 11.0 ktm
65.1 to 796 t·lbs
B0831>106
(1) Slotted Nut
(2) Tie-rod End
(3) Lock Nut
B083F323
