(3) Starter [G1700-G1800-G1900] : Reduction Type

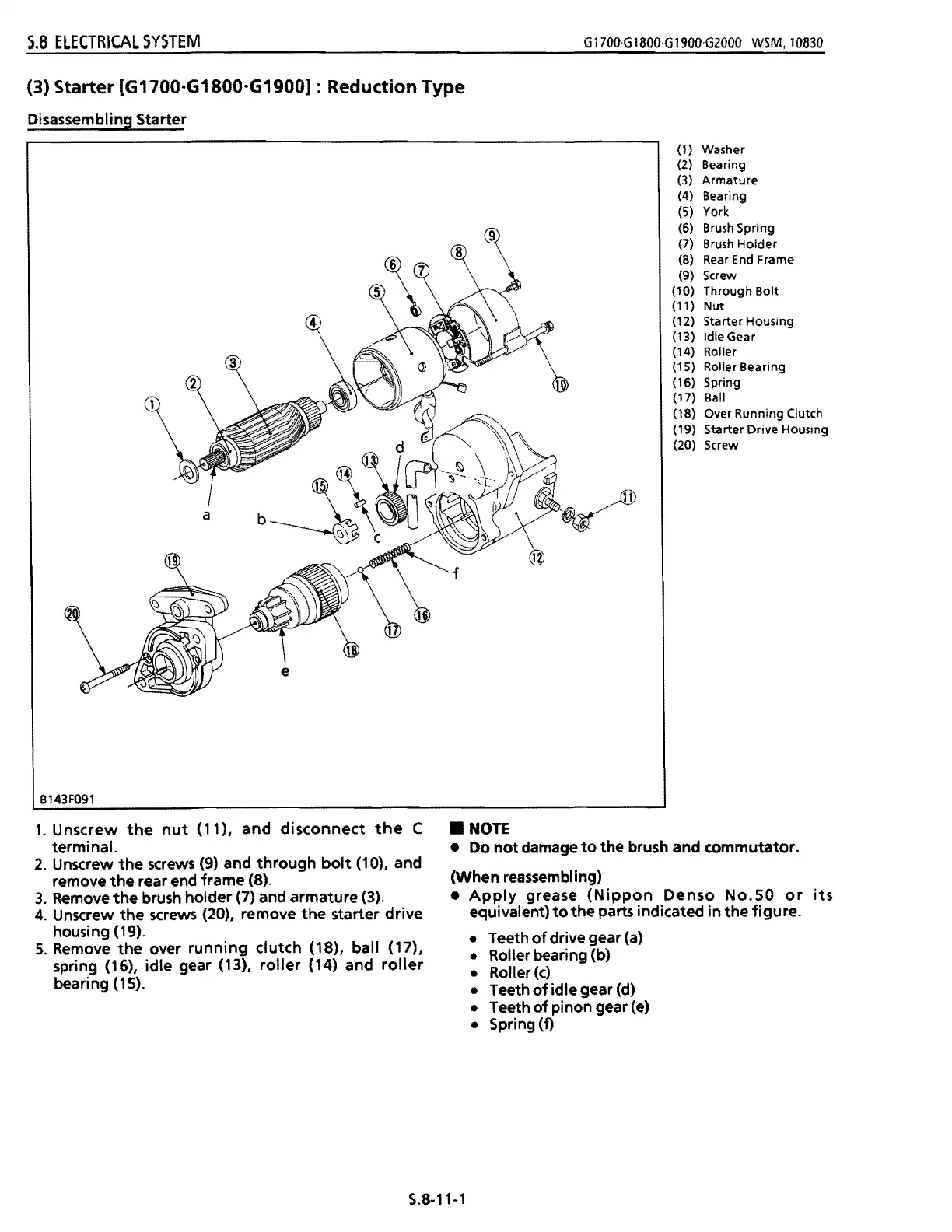

Disassembling Starter
S143F091
(1) Washer
(2) Searing
(3) Armature
(4) Bearing
(5) York
(6) Brush Spring
(7) Brush Holder
(8) Rear End Frame
(9) Screw
(10) Through Bolt
(11) Nut
(12) Starter Housing
(13) Idle Gear
(14) Roller
(15) Roller Bearing
(16) Spring
(17) Ball
(18) Over Running Clutch
(19) Starter Drive Housing
(20) Screw
1. Unscrew the nut (11), and disconnect the C
terminal.
2. Unscrew the screws (9) and through bolt (10), and
remove
the rear end frame (8).
3. Remove the brush holder (7) and armature (3).
4. Unscrew the screws (20), remove the starter drive
housing
(19).
S. Remove the over running clutch (18), ball (17),
spring
(16), idle gear (13), roller (14) and roller
bearing (15).
• NOTE
• Do not damage to the brush and commutator.
(When reassembling)
•
Apply grease (Nippon Denso No.50 or its
equivalent) to the parts indicated in the figure.
• Teeth
of drive gear (a)
• Roller bearing (b)
• Roller
(c)
• Teeth of idle gear (d)
• Teeth of pinon gear (e)
• Spring (f)
