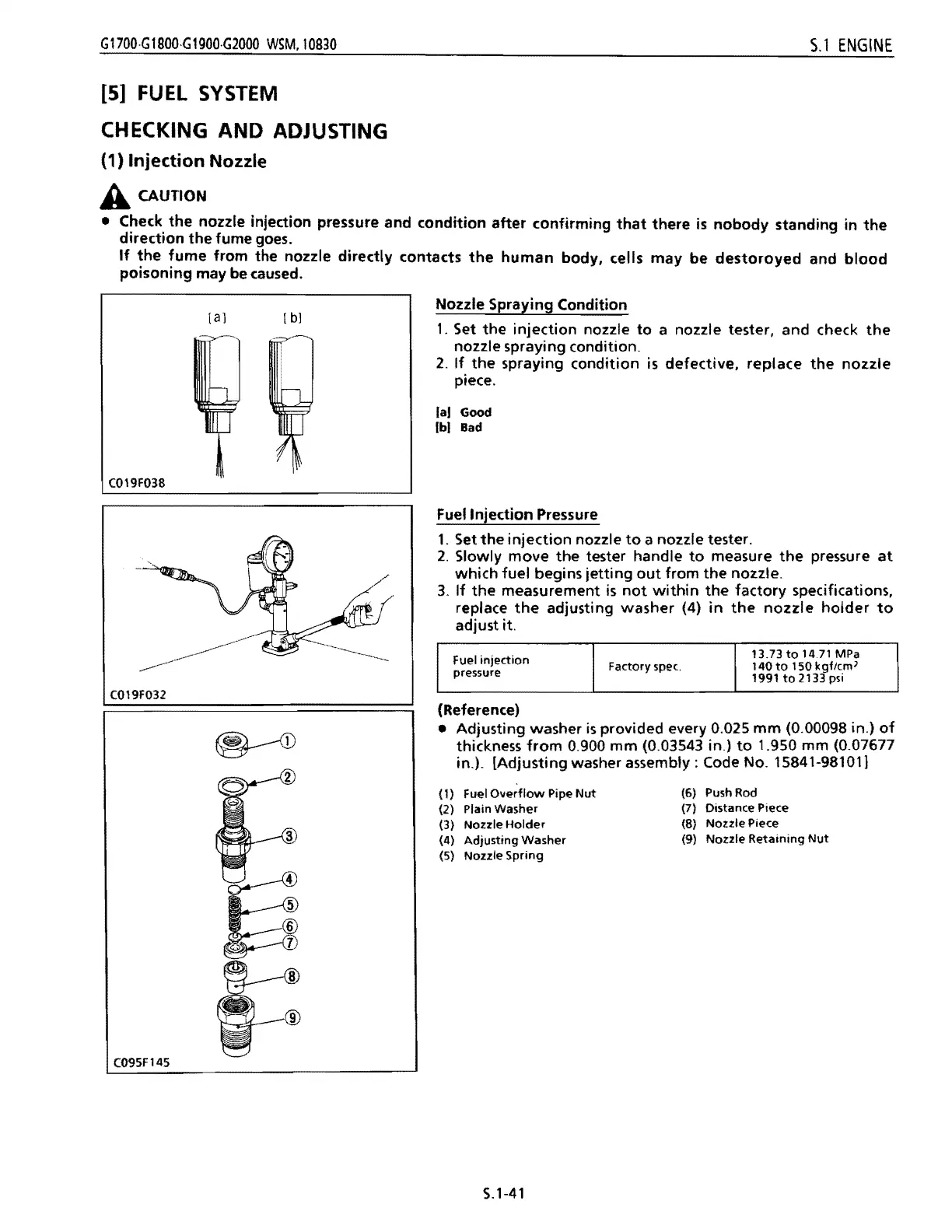

S.l ENGINE
[5] FUEL SYSTEM
CHECKING AND ADJUSTING
(1) Injection Nozzle
A CAUTION
• Check the nozzle injection pressure and condition after confirming that there is nobody standing in the
direction the fume goes.
If the fume from the nozzle directly contacts the human body, cells may be destoroyed and blood
poisoning may be caused.
raj [ bJ
C019F038
C019F032
Nozzle Spraying Condition
1 Set
the injection nozzle to a nozzle tester, and check the
nozzle spraying condition.
2. If the spraying condition is defective, replace the nozzle
piece.
(a) Good
(bl Bad
Fuel Injection Pressure
1. Set the injection nozzle to a nozzle tester.
2. Slowly move the tester handle to measure the pressure at
which fuel begins jetting out from the nozzle.
3. If the measurement is not within the factory specifications,
replace
the adjusting washer (4) in the nozzle holder to
adjust it.
Fuel injection
13.73 to 14.71 MPa
Factory spec.
140
to 150 kgflcm)
pressure
1991 to 2133 psi
(Reference)
• Adjusting washer is provided every 0.025 mm (0.00098 in.) of
thickness from 0.900 mm (0.03543 in.) to 1.950 mm (0.07677
in.).
[Adjusting washer assembly: Code No. 15841-98101]
(1)
Fuel Overflow Pipe Nut
(6) Push Rod
(2) Plain Washer
(7) Distance Piece
(3)
Nozzle Holder
(8)
Nozzle Piece
(4) Adjusting Washer
(9)
Nozzle Retaining Nut
(5) Nozzle Spring
C095F145
5.1-41
187
