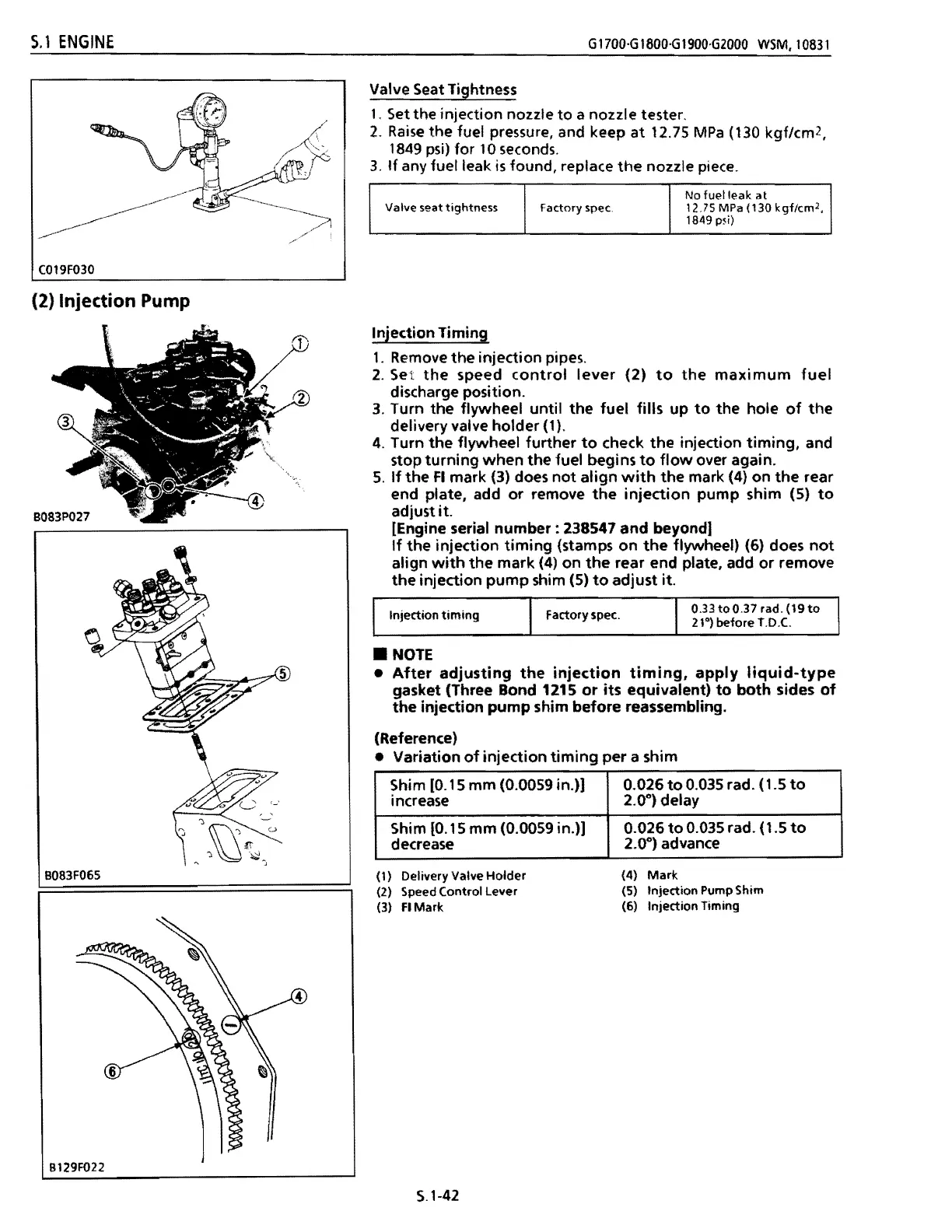

S.l
ENGINE
G
1700·G
1800·G
1900'G2000
WSM.
10831
C019F030
(2) Injection Pump
B083F065
Valve
Seat
Tightness
1.
Set the injection nozzle
to
a nozzle tester.
2.
Raise
the fuel pressure, and keep
at
12.75
MPa
(130 kgf/cm2.
1849
psi)
for 10
seconds.
3.
If
any fuel leak
is
found, replace
the
nozzle piece.
No
fuel
leak
at
Valve seat
tightness
Factory spec 12,75 MPa (130 kgf/cm2.
1849
p~i)
Injection Timing
1.
Remove the injection pipes.
2.
Set
the
speed
control
lever
(2)
to
the
maximum
fuel
discharge position.
3. Turn the flywheel until the fuel fills up
to
the hole
of
the
delivery valve holder (1).
4. Turn
the
flywheel further
to
check
the
injection
timing,
and
stop
turning
when
the fuel begins
to
flow
over again.
5.
If
the
FI
mark (3) does
not
align
with
the
mark (4)
on
the
rear
end plate, add
or
remove
the
injection
pump
shim
(5)
to
adjust
it.
[Engine serial
number:
238547
and
beyond)
If
the injection
timing
(stamps
on
the
flywheel) (6) does
not
align
with
the
mark (4)
on
the
rear end plate, add
or
remove
the
injection
pump
shim (5)
to
adjust it.
0.33
to
0.37 rad. (19
to
Injection
timing
Factory spec.
21")
before T.D.C.
•
NOTE
•
After
adjusting
the
injection
timing,
apply
liquid·type
gasket (Three Bond 1215
or
its equivalent)
to
both
sides
of
the
injection
pump
shim before reassembling.
(Reference)
• Variation
of
injection
timing
per a shim
Shim
[0.15 mm (0.0059 in.)]
increase
0.026
to
0.035 rad. (1.5
to
2.0°) delay
Shim
(0.15
mm
(0.0059 in.)]
decrease
0.026
to
0.035 rad. (1.5
to
2.0°) advance
(1) Delivery Valve
Holder
(4)
Mark
(2) Speed Control Lever
(5) Injection Pump Shim
(3)
FI
Mark
(6) Injection Timing
B129F022
S.1-42
