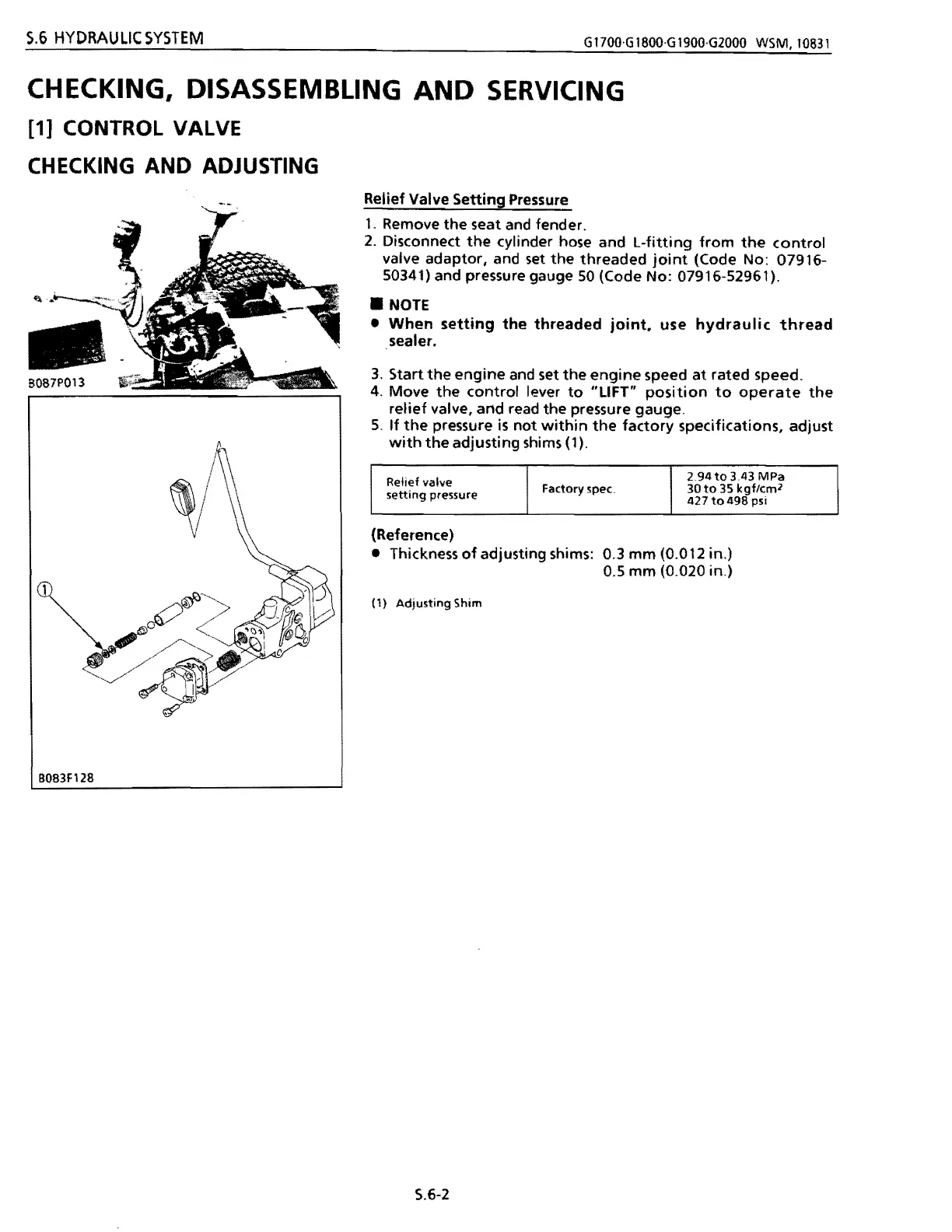

S.6
HYDRAULIC
SYSTEM
GI700·GI8oo·GI900·G2000 WSM.l0831
CHECKING, DISASSEMBLING
AND
SERVICING
[1] CONTROL VALVE
CHECKING AND ADJUSTING
Relief Valve Setting Pressure
1.
Remove
the
seat and fender.
2.
Disconnect
the
cylinder hose and
L-fitting
from
the
control
valve adaptor, and set
the
threaded
joint
(Code No: 07916-
50341) and pressure gauge
50
(Code No: 07916-52961).
NOTE
When
setting
the
threaded
joint.
use
hydraulic
thread
sealer.
3. Start
the
engine
and
set
the
engine
speed
at
rated speed.
4.
Move
the
control
lever
to
"LIFT"
position
to
operate
the
relief
valve, and read
the
pressure gauge.
5.
If
the
pressure
is
not
within
the
factory
specifications, adjust
with
the
adjusting shims (1).
Refiefvalve
setting
pressure
Factory spec.
2.94
to
3.43
MPa
30
to
35
kgf/cm2
427
to
498
psi
(Reference)
Thickness
of
adjusting shims: 0.3
mm
(0.012 in.)
0.5
mm
(0.020 in.)
(1)
Adjusting
Shim
B083F128
S.6-2
