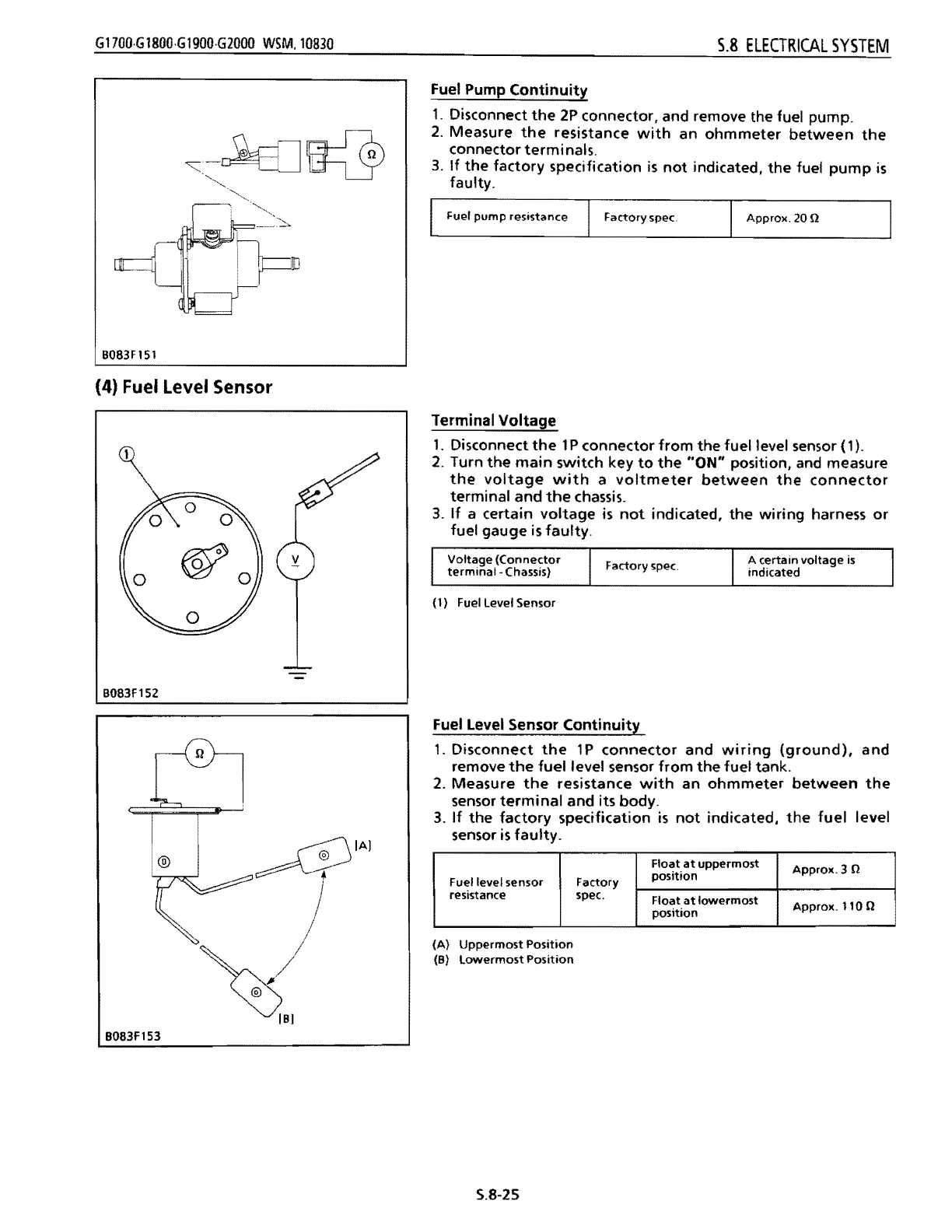

5.8 ELECTRICAL SYSTEM
B083F151
(4) Fuel Level Sensor
B083f152
®
r;;\IA)
~
~/
)
~BI
B083f153
Fuel Pump Continuity
1. Disconnect the 2P connector, and remove the fuel pump.
2. Measure the resistance with an ohmmeter between the
connector terminals.
3. If the factory specification is not indicated, the fuel pump is
faulty.
Fuel pump resistance
Factory
spec
ApprOl<.20n
Terminal Voltage
1. Disconnect the 1 P connector from the fuel level sensor (1).
2. Turn the main switch key to the "ON" position, and measure
the voltage with a voltmeter between the connector
terminal and the chassis.
3. If a certain voltage is not indicated, the wiring harness or
fuel gauge is faulty.
Voltage (Connector
A certain voltage is
ctory spec.
terminal- Chassis}
indicated
(I} FuelLevelSensor
Fuel Level Sensor Continuity
1. Disconnect the 1 P connector and wiring (ground), and
remove the fuel level sensor from the fuel tank.
2. Measure the resistance with an ohmmeter between the
sensor terminal and its body.
3. If the factory specification is not indicated. the fuel level
sensor
is faulty.
Fuel level sensor
resistance
Factory
spec.
Float
at uppermost
position
Approx.3 Q
Float at lowermost
position
Approx. 110
Q
(A) Uppermost Position
(B)
Lowermost Position
S.8-2S
339
