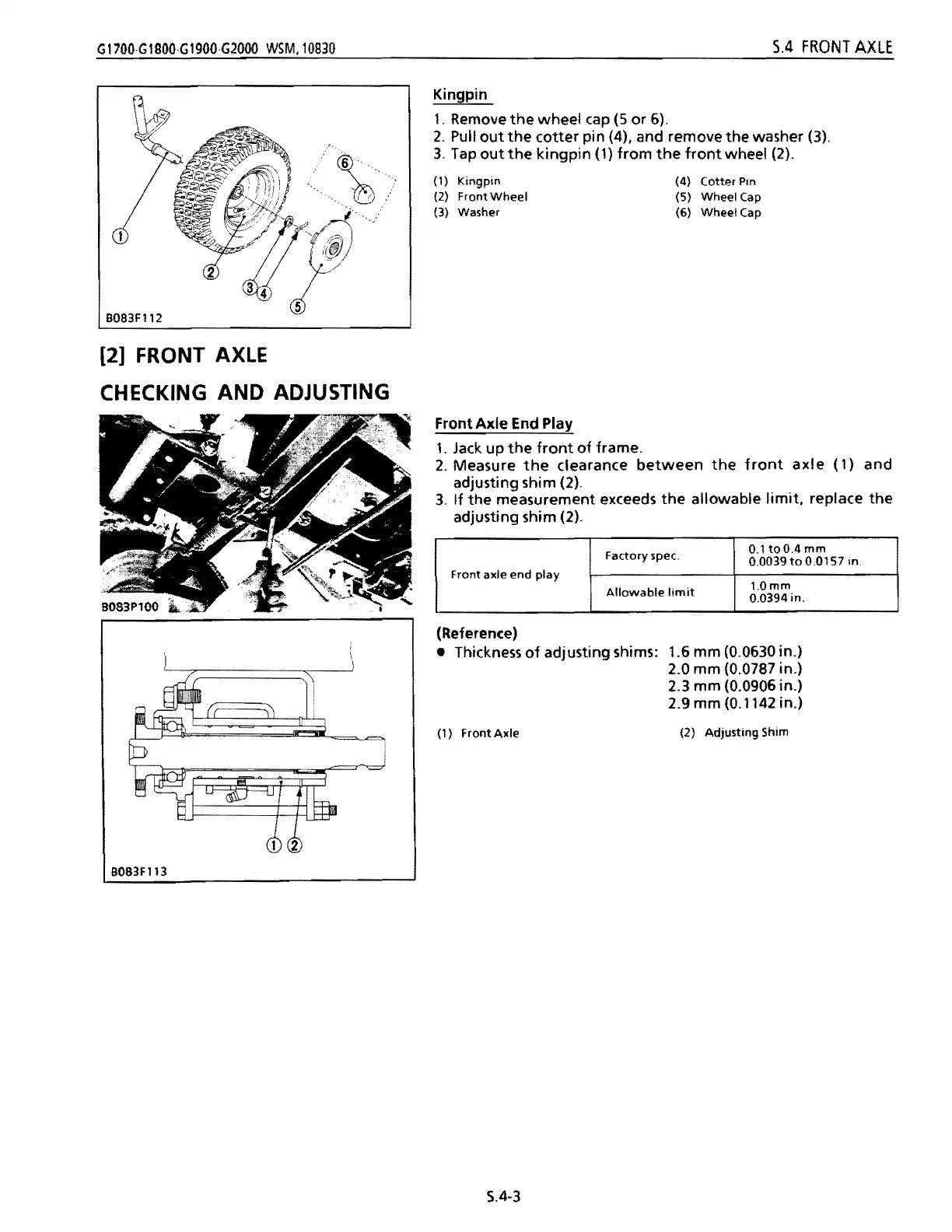

G 1700·G 1 BOO·G 1900·G2000 WSM. 10930
5.4 FRONT AXLE
Factory spec.
0.1 toO.4 mm
0.0039 to 0.0157 in.
Front axle
end play
Allowable limit
1.0mm
0.0394 in.
(Reference)
• Thickness
of adjusting shims: 1.6 mm (0.0630 in.)
2.0 mm (0.0787 in.)
2.3 mm (0.0906 in.)
2.9 mm (0.1142 in.)
(1) Front Axle (2) Adjusting Shim
BOB3F113
B083Fl12
[2] FRONT AXLE
CHECKING
AND ADJUSTING
Kingpin
1. Remove the wheel cap (5 or 6).
2. Pull out the cotter pin (4), and remove the washer (3).
3. Tap outthe kingpin (1) from the front wheel (2).
(1) Kingpin
(4) Cotter
Pm
(2) Front
Wheel
(5) Wheel Cap
(3) Washer
(6) Wheel
Cap
Front Axle End Play
1. Jack up the front of frame.
2. Measure the clearance between the front axle (1) and
adjusting shim (2).
3. If the measurement exceeds the allowable limit, replace the
adjusting shim (2).
S.4-3
277
