S.2 TRANSMISSION AND REAR AXLE
G1700'G1800'G1900'G2000 WSM,10832

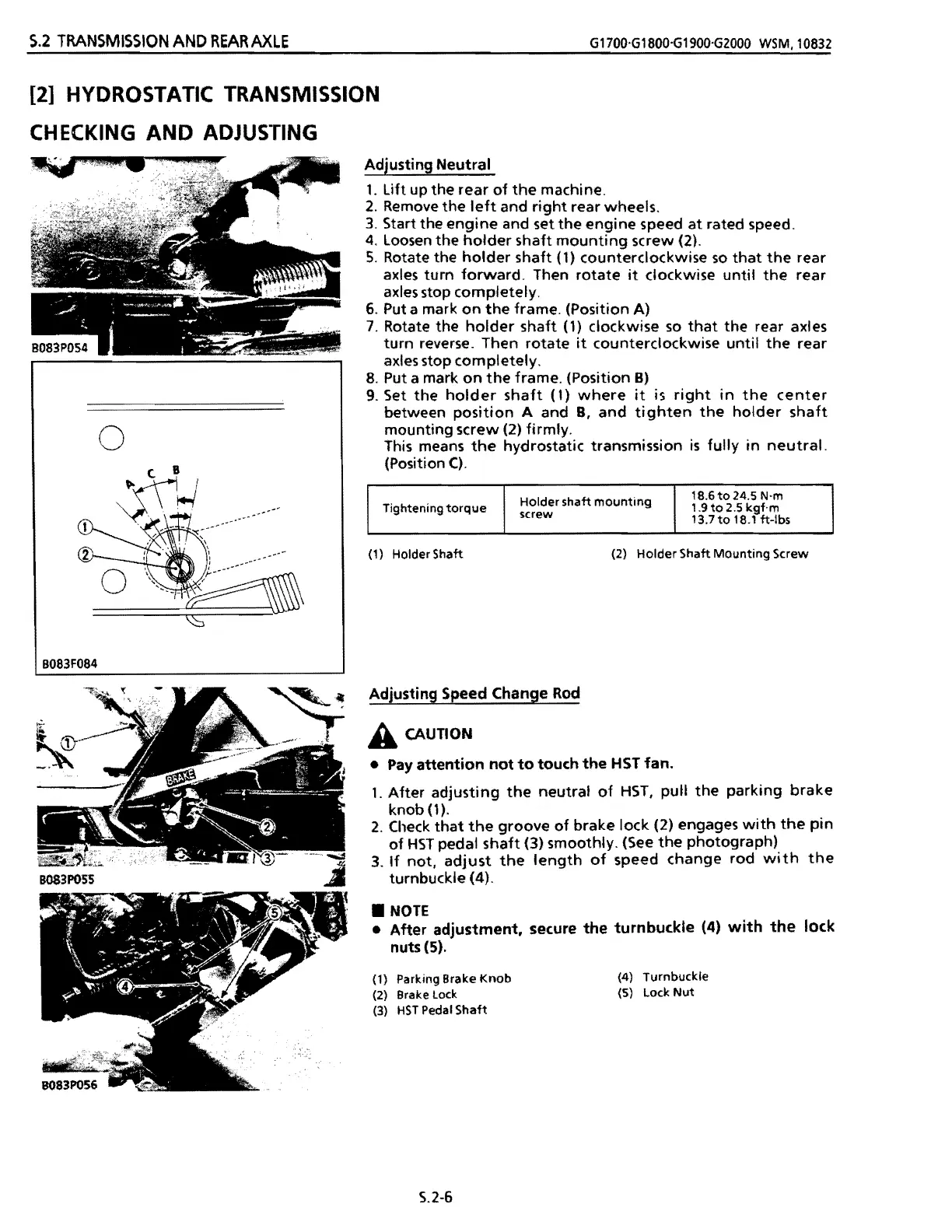

[2] HYDROSTATIC TRANSMISSION
CHECKING
AND ADJUSTING
B083F084
Adjusting Neutral
1. lift up the rear of the machine.
2. Remove the left and right rear wheels.
3. Start the engine and set the engine speed at rated speed.
4. loosen the holder shaft mounting screw (2).
S. Rotate the holder shaft (1) counterclockwise so that the rear
axles
turn forward. Then rotate it clockwise until the rear
axles stop completely.
6. Put a mark on the frame. (Position A)
7. Rotate the holder shaft (1) clockwise so that the rear axles
turn reverse. Then rotate it counterclockwise until the rear
axles stop completely_
8. Put a mark on the frame. (Position B)
9. Set the holder shaft (1) where it is right in the center
between position A and B, and tighten the holder shaft
mounting screw (2) firmly.
This means the hydrostatic transmission is fully in neutral.
(Position C).
Tightening torque
Holder shaft mounting
screw
18.6
to 24.5 N'm
1.9
to 2.5 k.gf·m
13.7to 18.1 ft-Ibs
(1) Holder Shaft
(2) Holder Shaft Mounting Screw
Adjusting Speed Change Rod
A CAUTION
• Pay attention not to touch the HST fan.
1. After adjusting the neutral of HST, pull the parking brake
knob (1).
2.
Check that the groove of brake lock (2) engages with the pin
of HST pedal shaft (3) smoothly. (See the photograph)
3. If not, adjust the length of speed change rod with the
turnbuckle (4) .
• NOTE
• After adjustment, secure the turnbuckle (4) with the lock
nuts (5).
(1)
(2)
(3)
Parking Brake
Knob
Brake lock
HST Pedal Shaft
(4)
(5)
Turnbuckle
Lock
Nut
S.2-6
244
