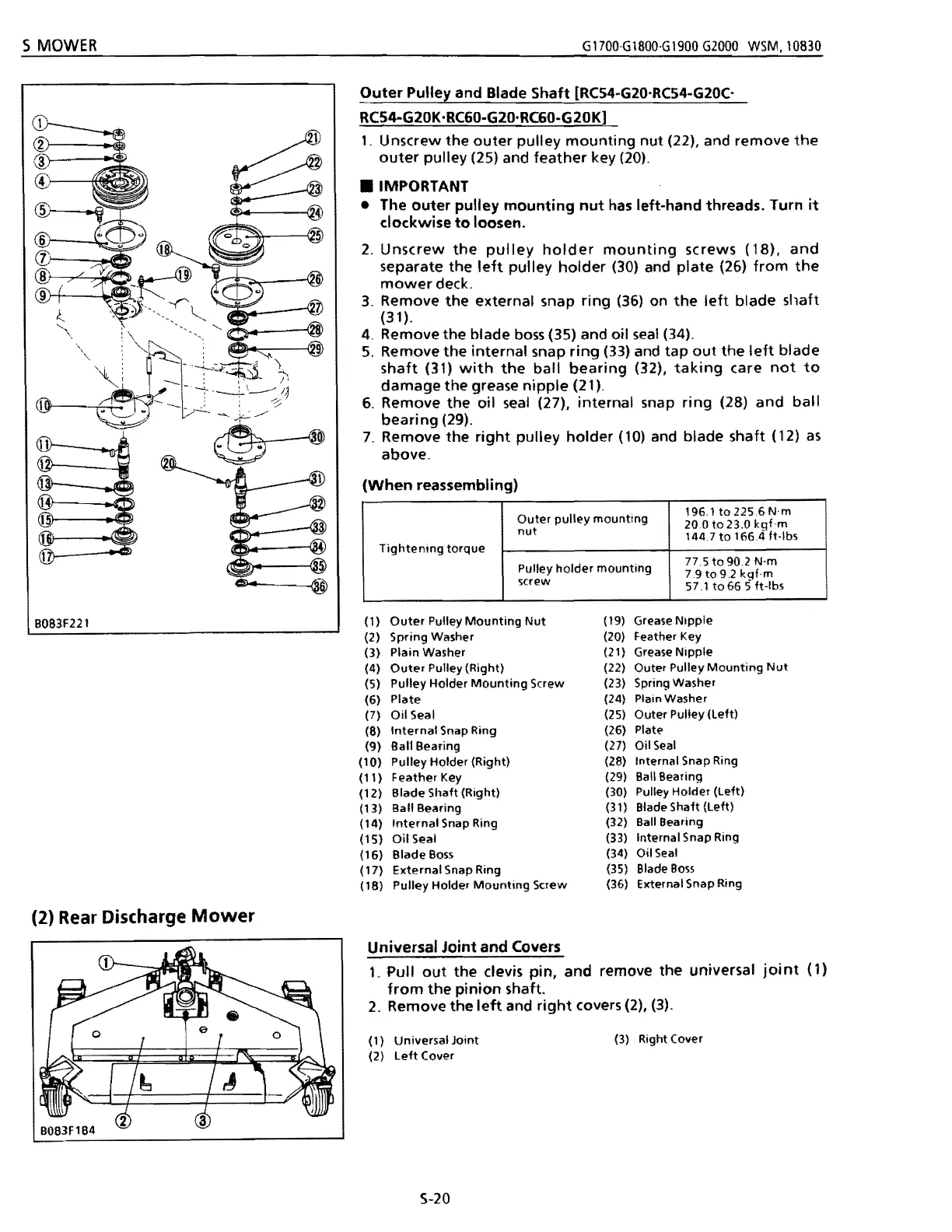

S
MOWER
G1700'G1BOO'G1900
G2000
WSM,10830
Outer
Pulley and Blade
Shaft
[RC54-G20·RC54-G20C·
RC54-G20K ·BC60-G20·RC60-G20K]
1.
Unscrew
the
outer
pulley
mounting
nut
(22), and remove
the
outer
pulley (25) and
feather
key (20) .
IMPORTANT
The
outer
pulley
mounting
nut
has
left-hand threads. Turn
it
clockwise
to
loosen.
2.
Unscrew
the
pulley
holder
mounting
screws
(18).
and
separate
the
left
pulley
holder
(30) and
plate
(26)
from
the
mower
deck.
3.
Remove
the
external snap
ring
(36) on
the
left
blade shaft
(31 ).
4. Remove
the
blade
boss
(35) and oil
seal
(34).
5.
Remove
the
internal
snap
ring
(33) and
tap
out
the
left
blade
shaft
(31)
with
the
ball
bearing
(32),
taking
care
not
to
damage
the
grease
nipple
(21).
6.
Remove
the
oil
seal
(27),
internal
snap
ring
(28)
and
ball
bearing
(29).
7.
Remove
the
right
pulley
holder
(10) and blade shaft (12)
as
above.
(When
reassembling)
Tightening
torque
Outer
pulley
mounting
nut
196.1
to
225.6
N'm
20.0
to
23.0
kgf·m
144.7
to
166.4
ft·lbs
Pulley
holder
mounting
screw
77.5
to
90.2 N·m
7.9t092kgf·m
57.1
to
665
ft-Ibs
B083F221
(1)
Outer
Pulley
Mounting
Nut
(19) Grease
NIpple
(2)
Spring
Washer
(20) Feather Key
(3)
Plain
Washer
(21
)
Grease
Nipple
(4)
Outer
Pulley
(Right)
(22)
Outer
Pulley
Mounting
Nut
{5}
Pulley
Holder
Mounting
Screw
(23) Spring Washer
(6)
Plate
(24) Plain Washer
(7)
Oil
Seal
(25)
Outer
Pulley (Left)
(8)
Internal
Snap Ring
(26)
PlatE'
(9)
Ball Bearing
(27)
Oil
Seal
(10)
Pulley
Holder
(Right)
(28)
Internal
Snap Ring
(11 )
Feather
Key
(29) Ball Bearing
(12)
Blade
Shaft
(Right)
(30)
Pulley
Holder
(Left)
(13)
Ball Bearing
(31) Blade
Shaft
(left)
(14)
Internal
Snap Ring
(32)
Ball Bearing
(15)
Oil
Seal
(33)
Internal
Snap Ring
(16)
Blade
Boss
(34) Oil Seal
(17)
External
Snap Ring
(35)
Blade
Bos5
( 18)
Pulley
Holder
Mounting
Screw
(36) External Snap Ring
(2) Rear Discharge
Mower
Universal Joint and Covers
1.
Pull
out
the
clevis
pin,
and
remove
the
universal
joint
(1)
from
the
pinion
shaft.
2.
Remove
the
left
and
right
covers (2), (3).
(1
)
Universal
Joint
(3) Right Cover
(2)
left
Cover
S-20
