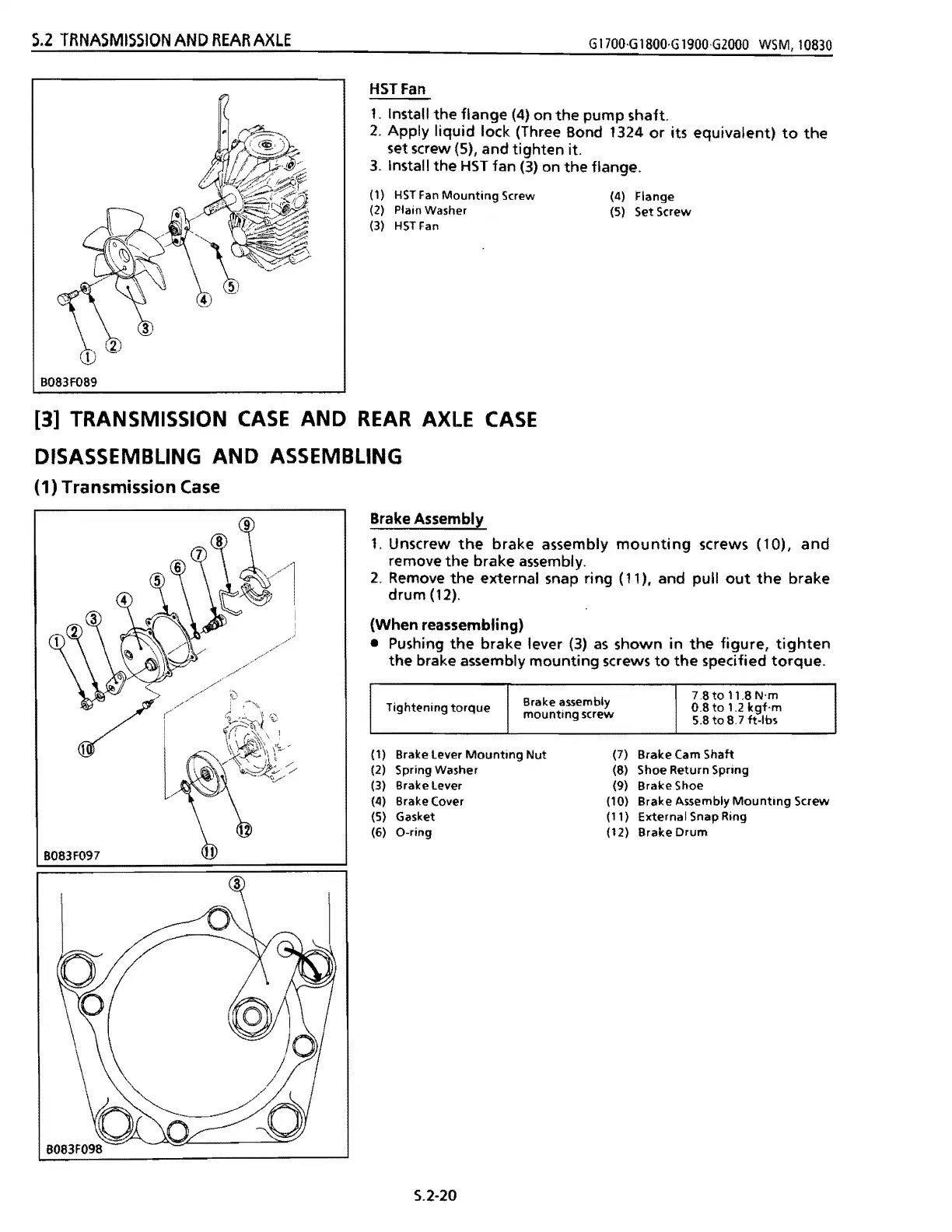

HSTFan
1. Install the flange (4) on the pump shaft.
2. Apply liquid lock (Three Bond 1324 or its equivalent) to the
set screw (5), and tighten it.
3. Install the HST fan (3) on the flange.
(1) HST Fan Mounting Screw (4) Flange
(2) Plain Washer (5) Set Screw
(3) HST Fan
[3] TRANSMISSION CASE AND REAR AXLE CASE
DISASSEMBLING AND ASSEMBLING
(1) Transmission Case
Brake Assembly
1. Unscrew the brake assembly mounting screws (10), and
remove the brake assembly.
2. Remove the external snap ring (11), and pull out the brake
drum (12).
(When reassembling)
• Pushing
the brake lever (3) as shown in the figure, tighten
the brake assembly mounting screws to the specified torque .
. 8N·m
Brake assembly
2 kgf·m
Tightening torque
mounting screw
7 ft-Ibs
(1 )
Brake lever Mounting Nut
(7)
Brake Cam Shaft
(2)
Spring Washer (8)
Shoe Return Spring
(3) Brake lever (9)
Brake Shoe
(4)
Brake Cover (10) Brake Assembly Mounting Screw
(5)
Gasket
(11)
External Snap Ring
(6)
O-ring (12)
Brake
Drum
