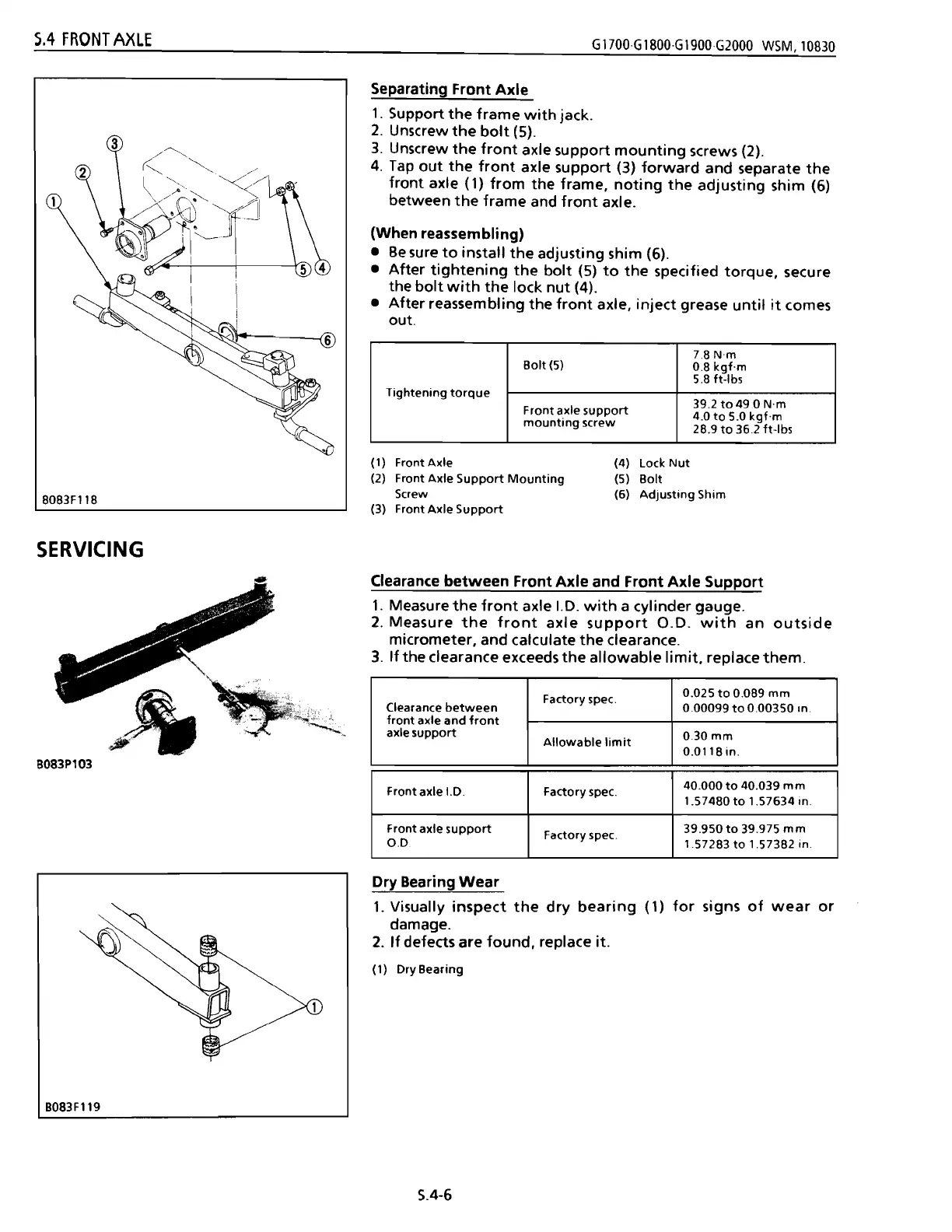

S.4 FRONT AXLE
G1700·G1800·G1900·G2000 WSM,10830
Separating Front Axle
1. Support the frame with jack.
2. Unscrew the bolt (5).
3. Unscrew the front axle support mounting screws (2).
4. Tap out the front axle support (3) forward and separate the
front axle (1) from the frame, noting the adjusting shim (6)
between the frame and front axle.
(When reassembling)
• Be sure to install the adjusting shim (6).
• After tightening the bolt (5) to the specified torque, secure
the bolt with the lock nut (4) .
• After reassembling the front axle, inject grease until it comes
out.
Tightening torque
Bolt (5)
7.8N·m
0.8 kgf·m
5.8 ft-Ibs
Front axle support
mounting screw
39.2
to 490 N'm
4.0 to 5.0 kgf·m
28.9
to 36.2 ft-Ibs
8083Fl18
SERVICING
~
.
\~ .
..
,. .
B083Pl03
B083F119
(1) Front Axle
(4) Lock
Nut
(2) Front Axle Support Mounting
(5) Bolt
Screw
(6)
Adjusting Shim
(3) Front
Axle Support
Clearance between Front Axle and Front Axle Support
1. Measure the front axle 1.0. with a cylinder gauge.
2. Measure the front axle support 0.0. with an outside
micrometer, and calculate the clearance.
3. If the clearance exceeds the allowable limit, replace them.
Clearance between
Factory spec.
0.025
to 0.089 mm
0.00099 to 0.00350 an.
front axle and front
axle support
Allowable limit
0.30 mm
0.0118 in.
Front axle 1.0.
Factory spec.
40.000 to 40.039 mm
1.57480 to 1.57634 in.
Front axle support
0.0
Factory spec.
39.950 to 39.975 mm
157283 to 1.57382 in.
Dry Bearing Wear
1. Visually inspect the dry bearing (1) for signs of wear or
damage.
2. If defects are found, replace it.
(1) Dry Bearing
5.4-6
280
