. DRIVE AND DRIVEN PULLEYS/
KICK STARTER
8-12
DINK 50/125

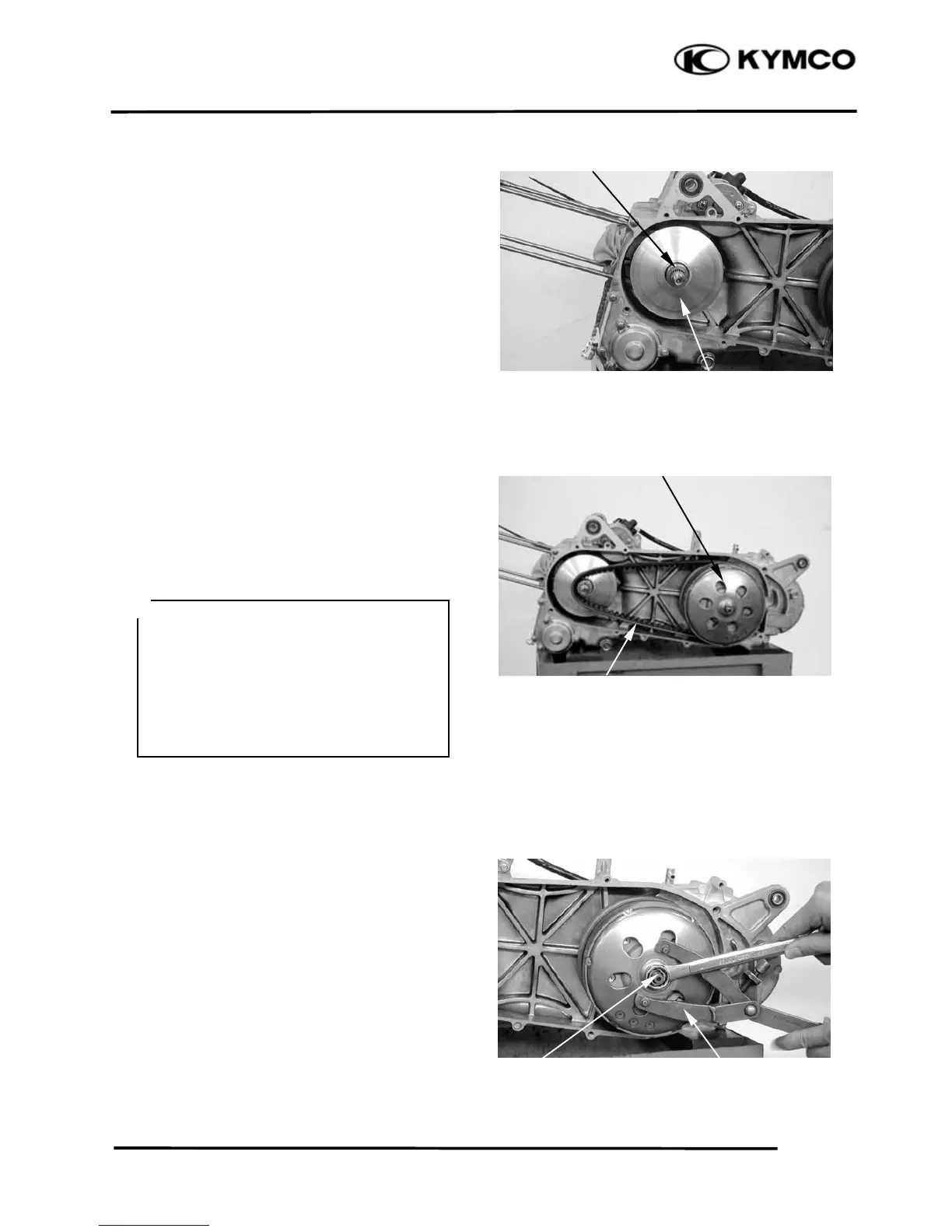

INSTALLATION
Apply lubricant to the drive face boss inner
surface, then install the movable drive face
assembly.
Install the clutch outer onto the driven pulley
assembly.
Compress the driven pulley assembly by hand,
then install the drive belt into the driven
pulley assembly.
Install the driven pulley assembly/clutch
outer and drive belt together.
Use the special tool to hold clutch outer, then
tighten the nut to the specified torque.
Torque: 5.5 kgf-m (55 N-m, 40 lbf-ft)
Special tool:
Universal holder A120E00017
A120E00056
Movable Drive Face Assembl
● The drive belt should be installed so
that the arrows on the drive belt
periphery point in the normal turning
direction if the drive belt has arrow
mark.
● The drive belt contact surface of the
driven face should be thoroughly
cleaned.
＊
