15. REAR BRAKE/REAR FORK/REAR
WHEEL/REAR SHOCK ABSORBER
15-21
DINK 50/125
REAR WHEEL/REAR FORK
REMOVAL
Remove the muffler (refer to the
“EXHAUST MUFFLER” section in the
chapter 2).

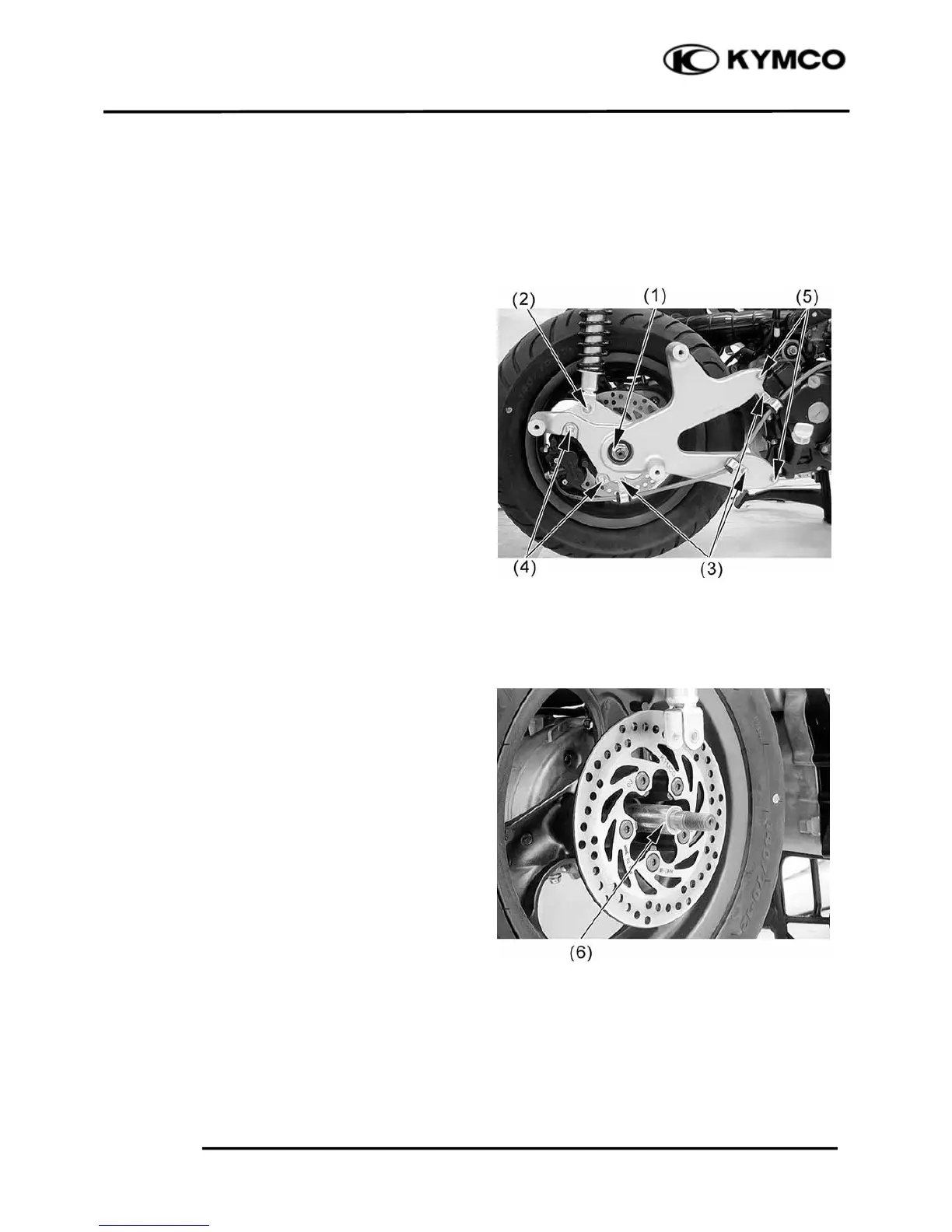

Loosen the rear axle nut (1).
Support the scooter securely on its main
stand.
Remove the rear shock absorber lower mount
bolt (2).
Remove the three bolts (3) and brake hose
clamps from the rear fork.
Remove the two mounting bolts (4), then
remove the rear brake caliper.
Remove the rear axle nut.
Remove the two mounting bolts (5), then
remove the rear fork.
Remove the inner side collar (6).
