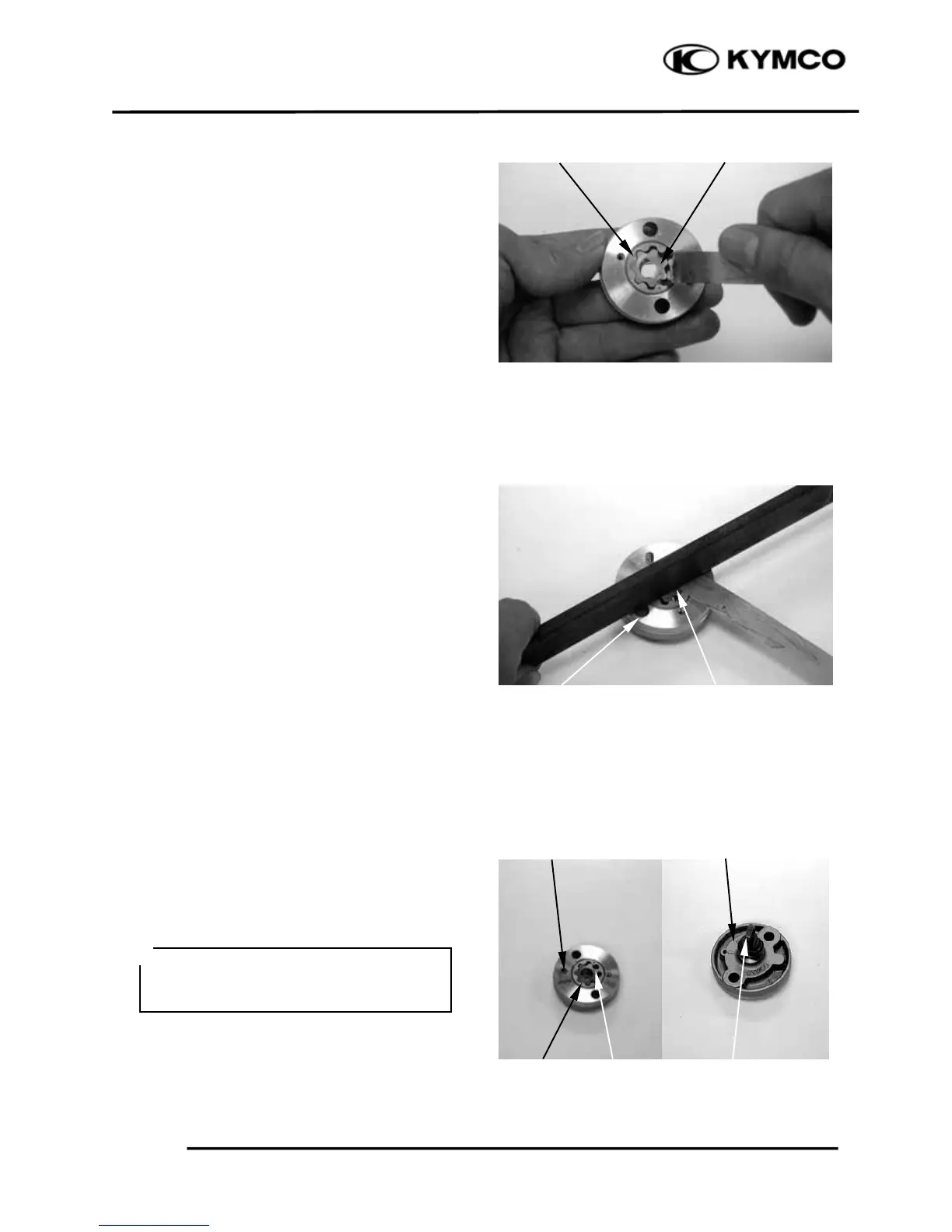

Measure the inner rotor-to-outer rotor
clearance.
Service Limit: 0.2 mm (0.008 in)
Measure the rotor end-to-pump body
clearance.
Service Limit: 0.12 mm (0.0048 in)
ASSEMBLY
Install the outer rotor, inner rotor and pump
shaft into the pump body.
There is one punch mark on the surface of the
inner rotor and outer rotor.
The mark is upside.
Insert the pump shaft by aligning the flat
on the shaft with the flat in the inner
rotor. Install the dowel pin.
＊
