15. REAR BRAKE/REAR FORK/REAR
WHEEL/REAR SHOCK ABSORBER
15-14
DINK50/125

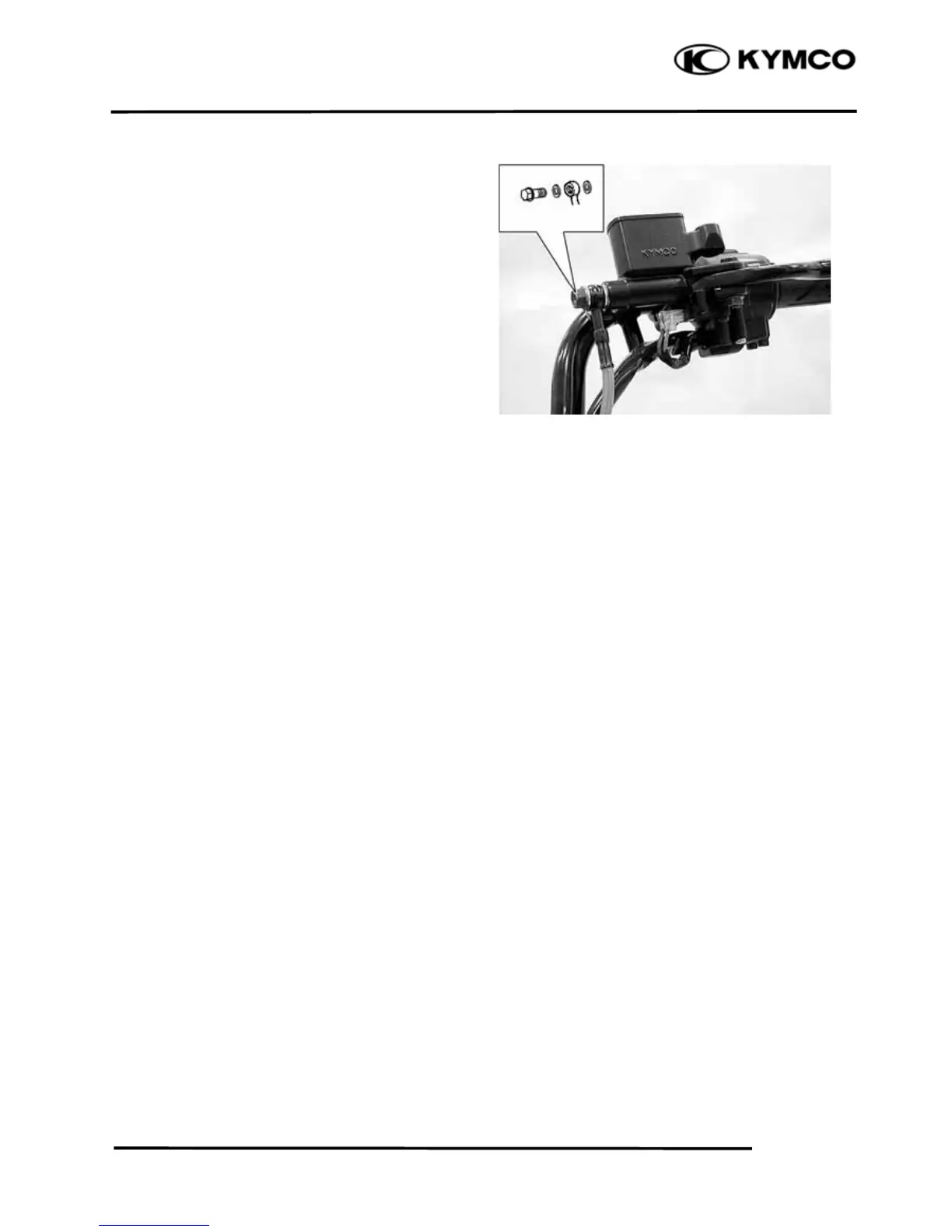

Rest the brake hose eyelet against the stopper.
Install the brake hose eyelet with the oil bolt
and new sealing washers.
Tighten the oil bolt to the specified torque.
Torque: 35 N•m (3.5 kgf•m, 25 lbf•ft)
Apply silicone grease to the master piston tip.
Install the brake lever.
Apply silicone grease to the brake lever pivot
bolt sliding surface.
Install and tighten the pivot bolt to the
specified torque.
Torque: 2 N•m (0.2 kgf•m, 1.4 lbf•ft)
Install and tighten the pivot nut to the
specified torque.
Torque: 10 N•m (1 kgf•m, 7.2 lbf•ft)
Connect the brake light switch connectors.
Fill the reservoir to the upper level and bleed
the brake system (refer to the “REAR
BRAKE FLUID” section in this chapter).
To Next Page
