5.10.11.2 Results Display

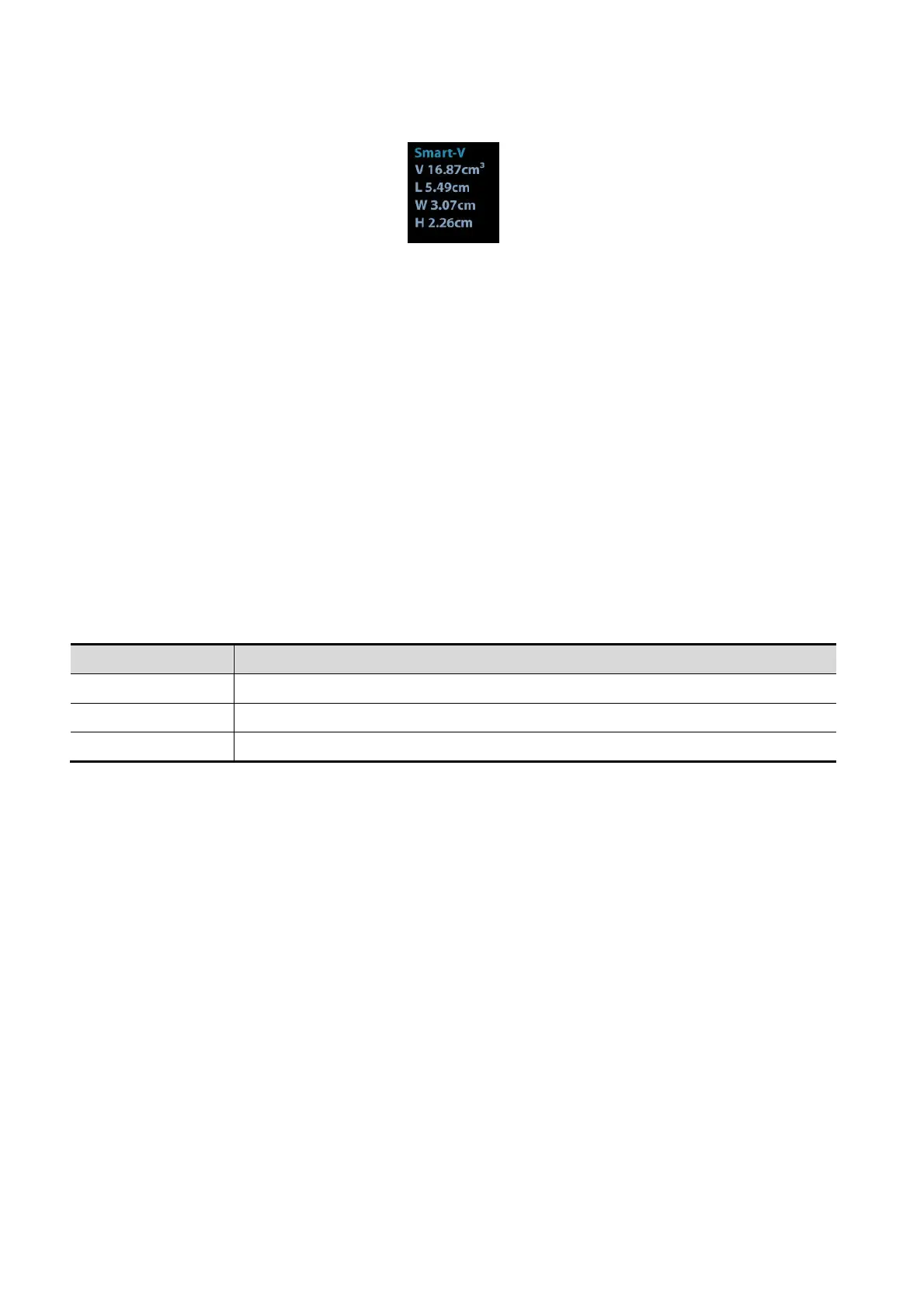

After calculating, the following result will be displayed in the top-right part of the screen.
Where L, W and H represent 3 diameter lengths of the fitting ellipsoid.
V represents the calculated volume value.
5.10.11.3 Operation Controls
Edit the VOI (Volume of Interest)
Adjusting the VOI box size and position selects the volume data needed for calculation.
(1) Touch [Edit VOI] on the touch screen to turn it on (green highlighted status).
(2) Select the desired MPR image by touching [A], [B] or [C].
(3) Roll the trackball to adjust the VOI position and size, and press <Set> to switch between the
adjusting statuses. Or, rotate the <4D> knob on the control panel to adjust the section image
position.
Accept VOI
After touching [Calc] to be on, the system starts calculation.
Reset Curve
Parameter Description
Reset Ori. To reset the volume rotation, shifting and zooming to its original status.
Reset Curve /
Reset All /
Zoom
Same as for 3D/4D image zooming.
Comments and Body Marks
The operations are the same as those in the other modes.
MPR measurement.
2D related measurements can be performed on MPRs. For details, see [Advanced Volume].
5.10.12 iLive
iLive brings you a better imaging experience by adding a light rendering effect to the traditional method.
It supports the point lighting mode, parallel lighting mode as well as the torch lighting mode, allowing
human tissue texture to be revealed more clearly.
iLive is an option, and is available under Smart 3D, Static 3D and 4D modes. To use the iLive function,
you must configure the Smart 3D module or the 4D module.
