11-16 DICOM/HL7
3. Click [Query], the system performs the query and lists out the results into the patient (source)
list.
You can perform further query basing on the results by entering new query information.
4. Select one or more patient records according to the actual situation.
Click [Select All] to select all the patient records in the list.
Click [Deselect All] to deselect all the patient records in the list.
5. Click [Retrieve] to retrieve the patient records in the DICOM query/retrieve server into the local
machine.
6. Click [Exit], you can see the retrieved patient records are listed in the iStation screen.
11.4 DICOM Media Storage
Patient data in the ultrasound system can be saved on external media in DCM format, while DCM
files can be accessed in the ultrasound system.
Media Storage
1. Select patient records in the iStation screen.

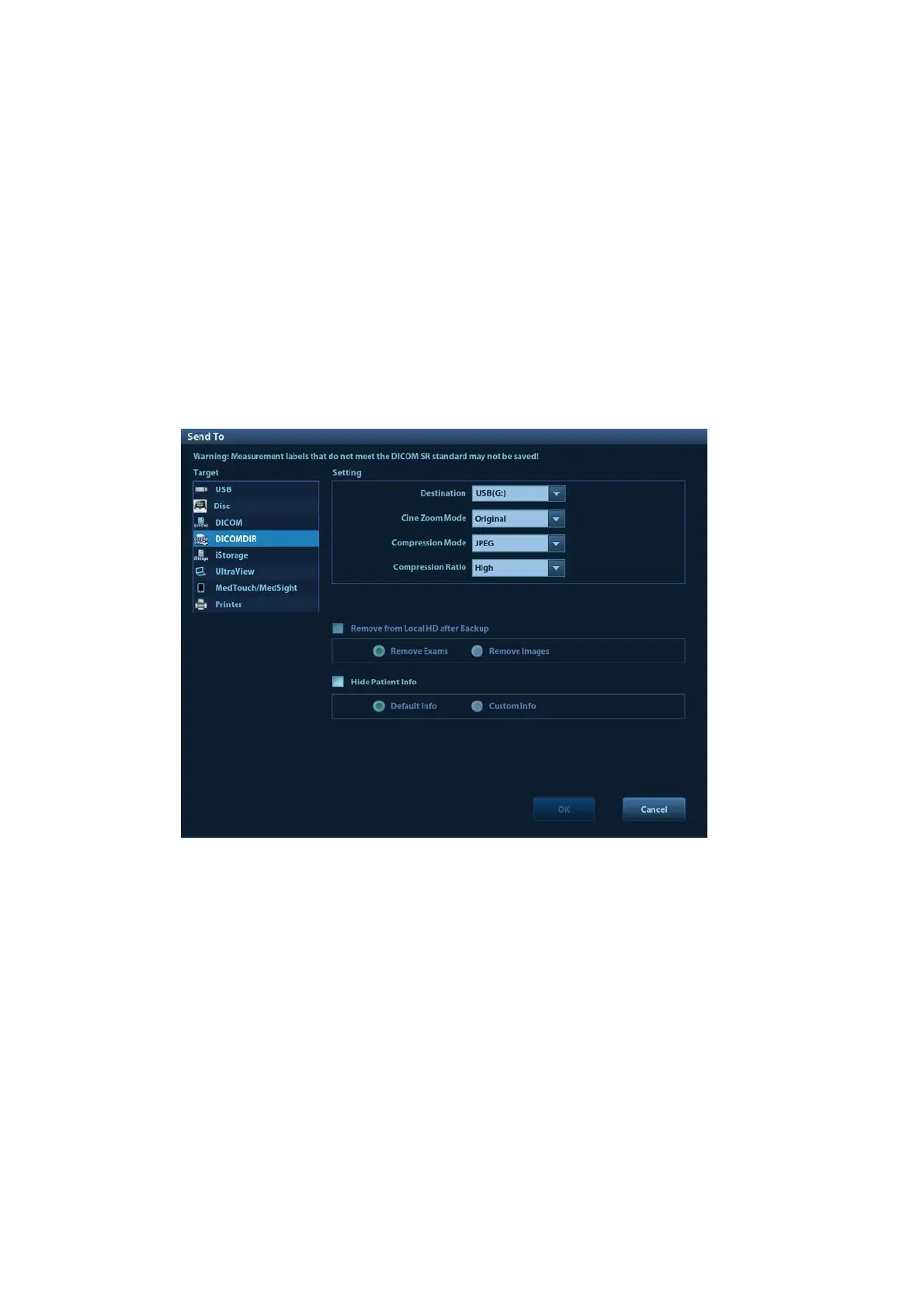

2. Click [Send Exam] in the menu which appears to open the dialog box.
3. Select the destination to “DICOMDIR”, cize zoom mode, compression mode, and
compressiom ratio. You can select to delete the exam or the image after the backup, and
select to hide patient information.
4. Click [OK] to begin the storage.
If the backup is successful, a tick will appear in the Backup list in the iStation screen. If not, there
will be no tick.
There must be no DICOMDIR/DCMIMG/IHE_PDI files on the external storage media of the same
name as the one being backed up. Otherwise, the backup cannot proceed. Ensure there is enough
storage space, or the backup may fail due to shortage of space.
Data Restore
After the DICOM format data are saved to external media, restore the data to the ultrasound
system.
