System Overview 2-9

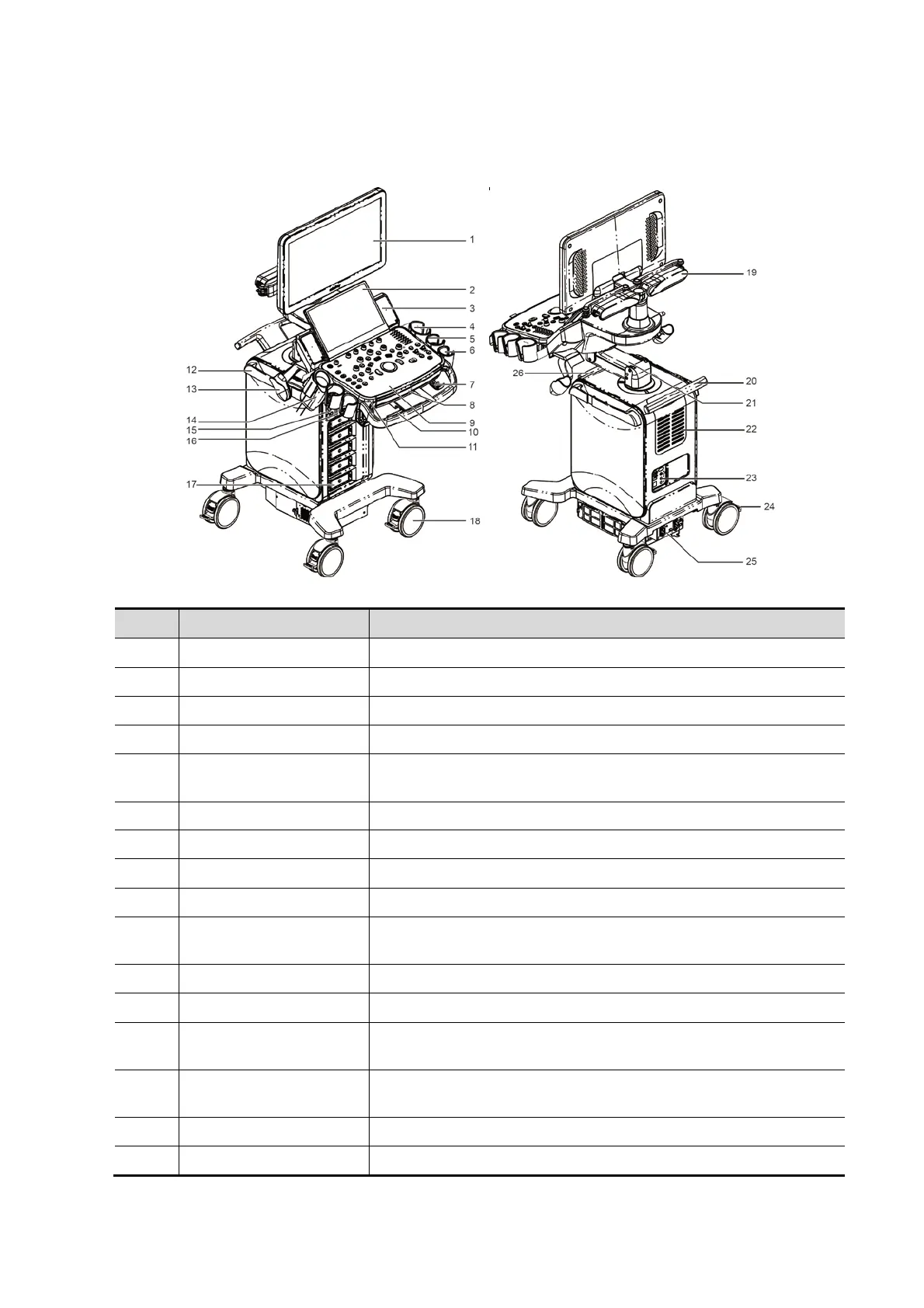

2.6 Introduction of Each Unit
No. Name Function
1. Monitor Displays the images and parameters during scanning.
2. Touch screen panel Operator-system interface or control.
3. Speaker Sound output.
4. Ultrasound gel holder Used for placing the ultrasound gel.
5. Probe holder
Used for placing the general probe (not including pencil probe
or intra-cavity probe).
6. Pencil probe holder Used for placing the pencil probe.
7. Probe cable hook Used for fixing the probe cable.
8. Keyboard Used for typing characters or entering some functions.
Operator-system interface or control.
10.
Control panel adjusting
lever
Used for lifting or swiveling the control panel.
11. USB_MIC port USB/MIC port
12. Hanger /
13.
Intracavitary probe
holder
Used for fixing the intracavitary probe.
14.
Ultrasound gel
holder/gel warmer
Used for placing the ultrasound gel or installing the gel warmer.
15. Physio panel Used for connecting the ECG leads and external ECG device.
Used for positioning the B/W video printer.
