13-18 Probes and Biopsy
13.2.1 Needle-Guided Brackets
Needle-guided brackets are available for purchase as optional accessories and are used in
combination with the probe. Some probes have corresponding needle-guided brackets and
needles. To order needle-guided brackets, contact the MINDRAY Customer Service Department or
a sales representative.
For biopsy or treatment, ultrasound-guided biopsy procedures can be performed using the probe
together with a needle-guided bracket (optional accessory) and a biopsy needle (provided by the
user).
Names of Parts
This section describes the parts and corresponding functions of each needle-guided bracket. Here,
we take a corresponding probe as an example.

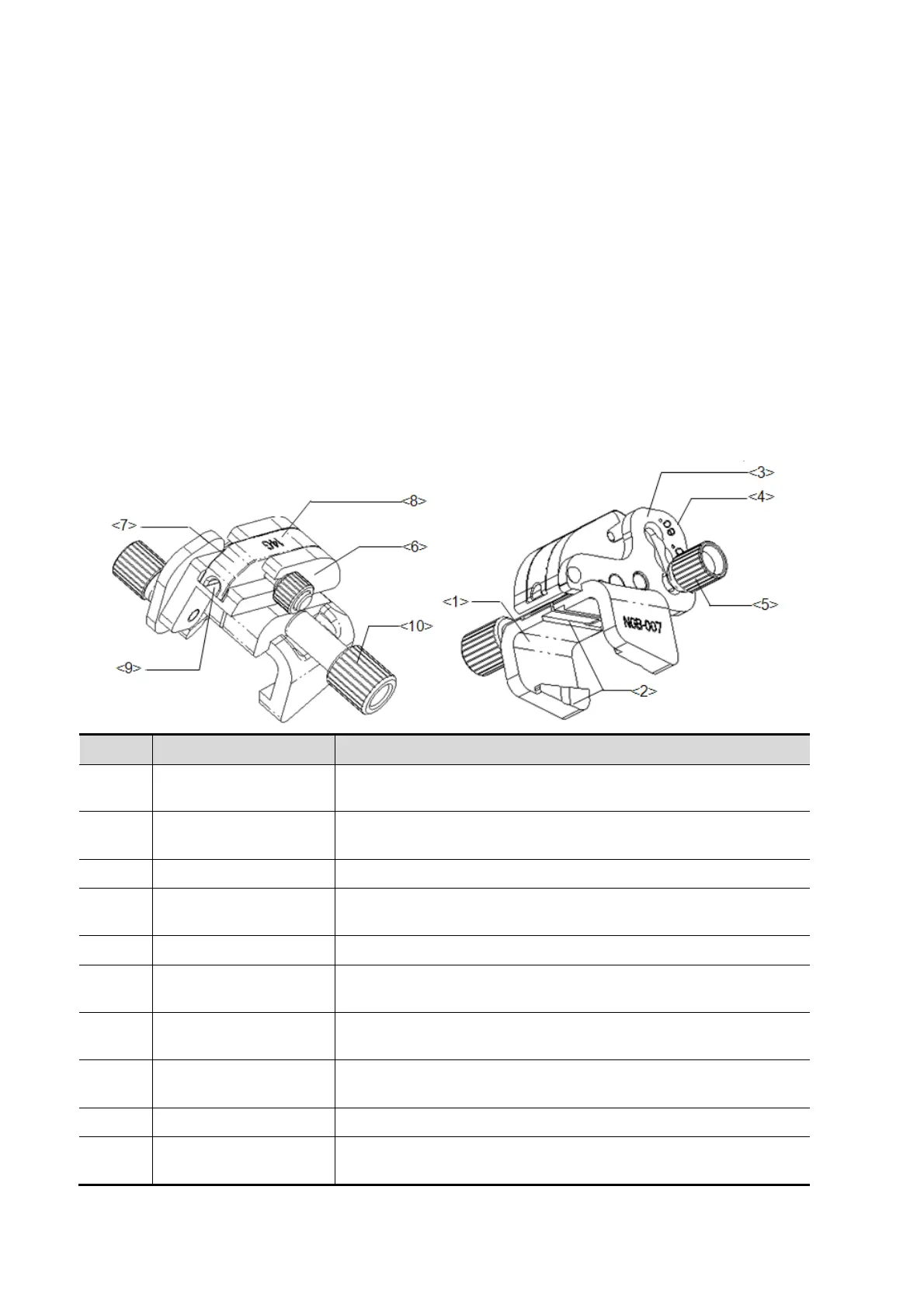

 NGB-007
Metal/needle detachable needle-guided bracket:
No. Name Description
<1>
Support for needle-
guided bracket
Used for installing the needle-guided bracket on the probe.
<2>
Tab and groove for the
needle-guided bracket
Corresponding to the tab and groove of the probe.
<3> Angle-adjusting base There are 3 types of angles available for adjustment.
<4>
Angle shift sign
(40°, 50°, 60°)
Corresponding to the biopsy angle (40°, 50° and 60°).
<5> Angle pinch nut Used for fixing the angle lock at a chosen angle.
<6> Angle block
Used for determining the angle of the biopsy. Different
specifications of blocks can be used.
<7> Guiding block
Used for installing biopsy needles. There are five guiding block
specification for different biopsy needles.
<8>
Guiding block
specification (14G)
Matched with the corresponding biopsy needle (14G).
<9> Needle guide hole Used for installing the biopsy needle.
<10>
Needle-guided bracket
pinch nut
Used for locking the needle-guided bracket and the probe.
