Image Optimization 5-71
3. Rotate [Font Size] knob to adjust the font size of the comment.
4. See “9.1 Comments” for adding, moving or deleting the comments.
5. Save the image.
6. Click [Auto Comment] again to clean them.
Axis Rotation
1. Acquire 3D data. Tap [S-Planes CNS] to enter the automatic detection of the mode.
2. Tap [TCP]/[TTP]/[TVP] to select the plane, and rotate <M>, <PW> or <C> knob to rotate the image
plane along with X/Y/Z axis. The angle value appears on the right of the image.
NOTE: it supports the rotation to the saved image.
Reference line rotating
1. Acquire 3D data. Tap [S-Planes CNS] to enter the automatic detection of the mode.
2. Press <Cursor> to show the cursor. Move the cursor over the red line of the MSP plane. Press left
<Set> to select the red reference line after the cursor becomes hand-shaped. Then, the red
reference line becomes dotted line.
3. Move the trackball left or downwards. The reference line rotates anticlockwise along the center.
TCP image rotates clockwise along the Y-axis, and the value of Y-axis becomes bigger.
4. Move the trackball right or downwards. The reference line rotates clockwise along the center. TCP
image rotates anticlockwise along the Y-axis, and the value of Y-axis becomes smaller.
5. The operations to green reference line and blue reference line are the same.TTP rotates along Y-
axis when green reference line rotating. TVP rotates along Y-axis when blue reference line rotating.

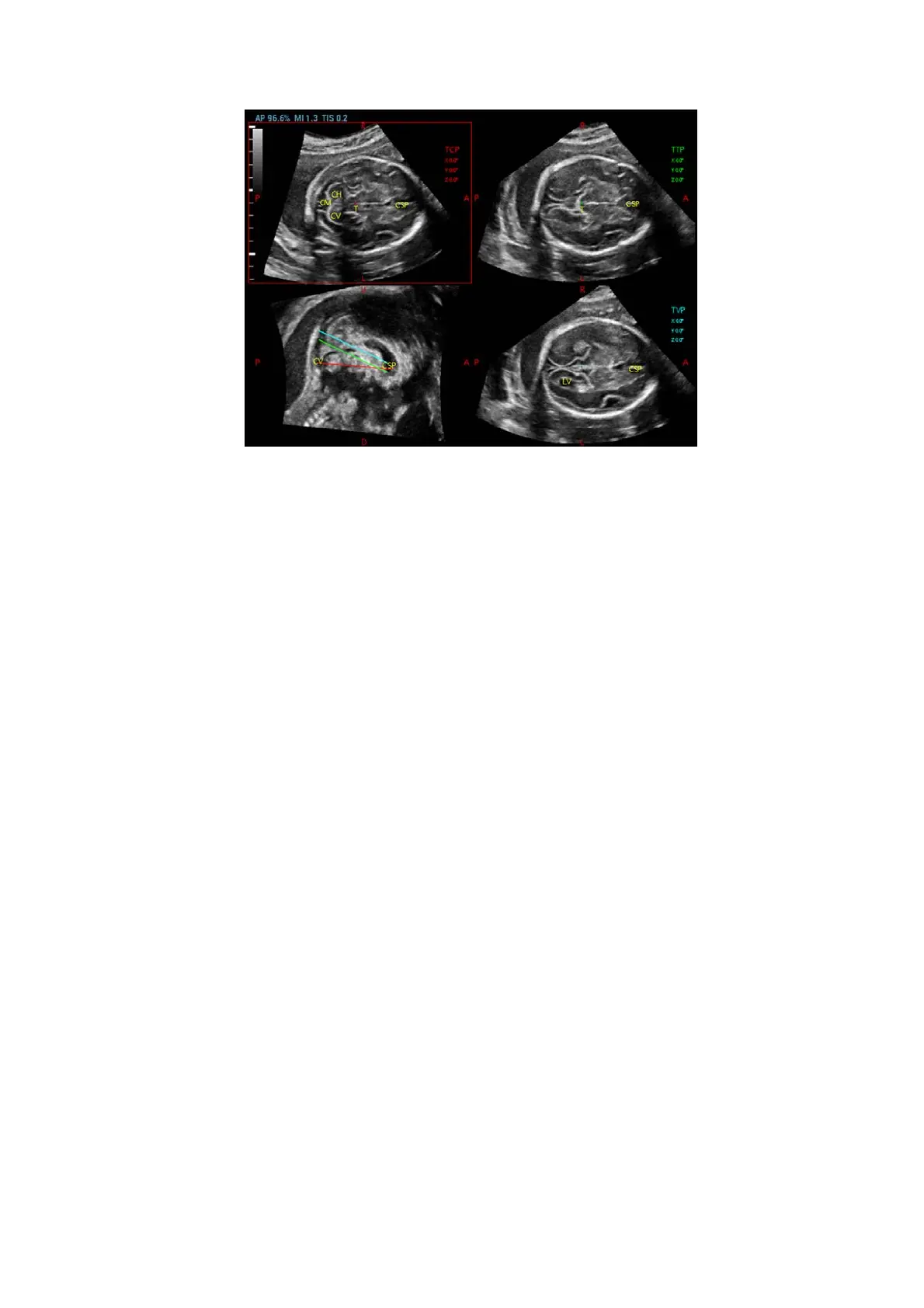

MSP editing
1. Acquire 3D data. Tap [S-Planes CNS] to enter the automatic detection of the mode.
2. Tap [MSP]. There are A, B and C views appearing on the screen, in which C plane refers to MSP, and A
and B planes refer to MPR plane.
3. Rotate A, B or C plane respectively, or rotate <4D> to adjust each plane.
4. Tap [Accept] to accept the edit to the MSP. The system recalculates the TCP, TTP and TVP according to
MSP’s position. The position and the angle for TCP, TTP and TVP appear on MSP plane.
5. Click [Cancel] to cancel the editing result.
