Barcode Reader B-5

B.1.5 Scanning in Hands-Free Mode

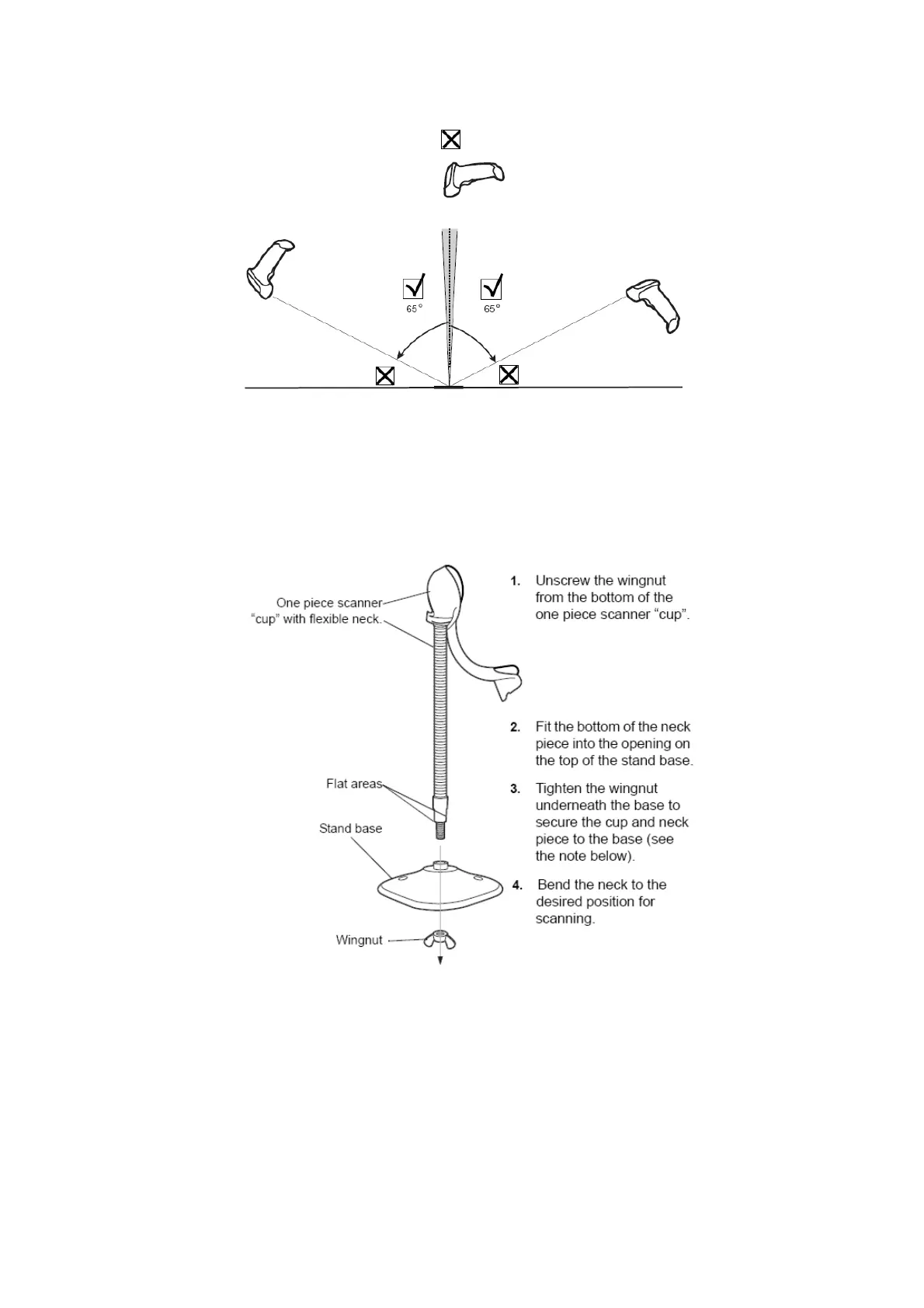

B.1.5.1 Assembling the Intellistand

NOTE Before tightening the wingnut under the base, ensure that the flat areas on the

flexible neck fit securely in the grooves in the base.

B.1.5.2 Mounting the Stand (optional)

You can attach the base of the reader’s stand to a flat surface using two screws or

double-sided tape (not provided).
