Image Optimization 5-107

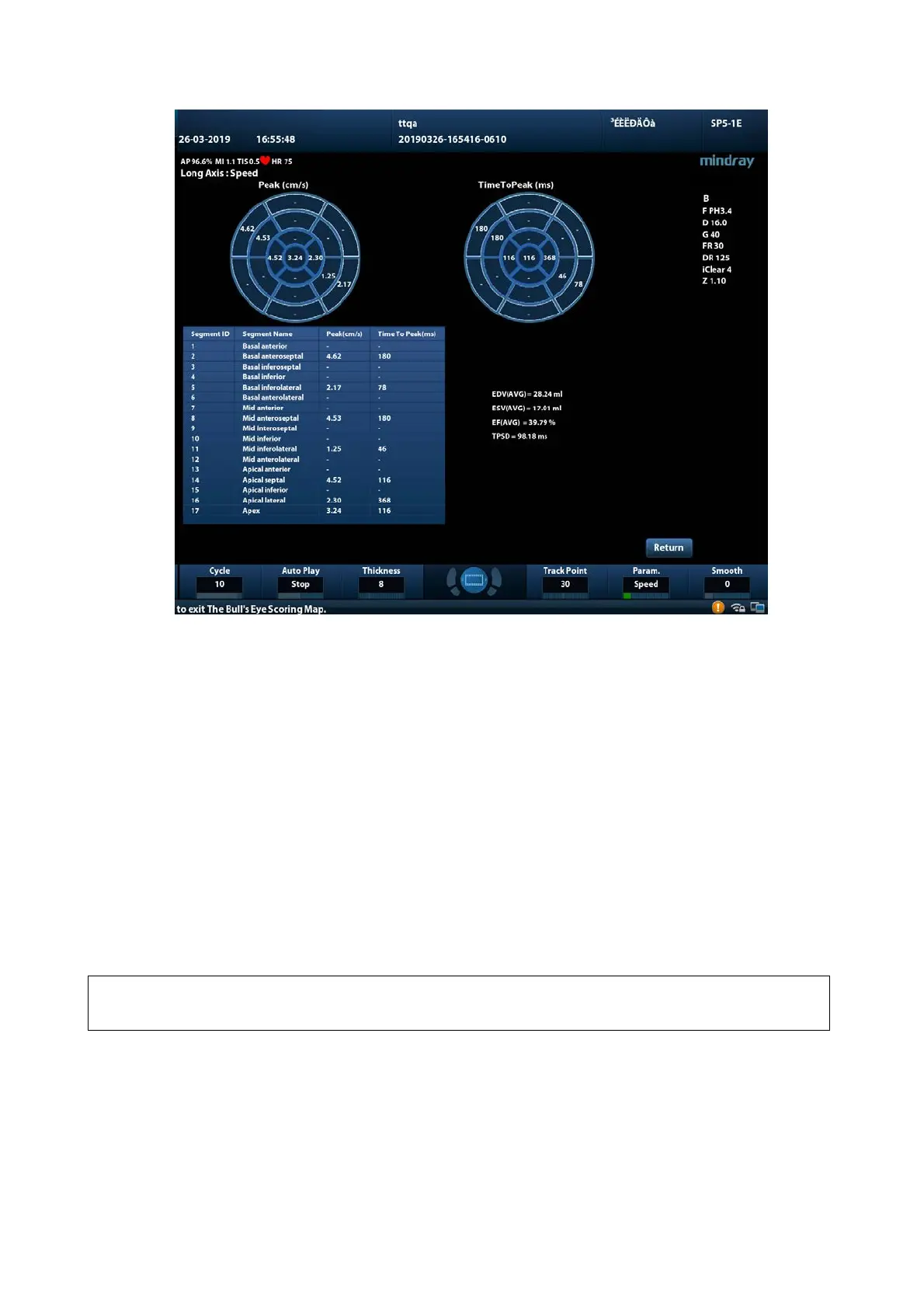

“-” will display in the table to indicate those segments that are not well tracked.
5.15.7 Measurement/Comment
In tissue tracking QA mode, only the Time measurement is available. For details, see the Operator’s
Manual [Advanced Volume].
Comments and Body Mark operations are the same as in other modes.
5.15.8 Data Export
The system provides a data exporting function, so that you can export calculation results for analysis
(for instance, SPSS analysis).
Touch [Data Export] on the touch screen to export analyzed data for each segment in .csv format.
5.16 Smart Pelvic Floor
Description
1. Smart Pelvic Floor is an option.
2. This feature is available only under GYN or pelvic floor exam mode.
Two Dimensional Image
1. Perform scanning under GYN or pelvic floor exam mode. Press <Freeze> and tap [Smart Pelvic]
tab.
2. Roll the trackball to select the target frame in the frozen cine file and tap [Rest] to set rest frame.
3. Tap [Measure] and press <Set> to anchor measurement calipers of location S/P/U/E/R/V by the
indications on the screen. The system then calculates corresponding parameters.
S- Symphysis Pubis bottom, P- Central axis of Symphysis pubis, U- Uretha-Bladder joint, E- Uretha
To Next Page
