Mitsubishi Q01CPU User Manual

4
HARDWARE SPECIFICATIONS OF THE CPU MODULE
4.4 Universal Model QCPU
4.4.3 Reset Operation
4 - 43
1
OVERVIEW
2
SYSTEM CONFIGURATION
3
GENERAL SPECIFICATIONS
4
HARDWARE SPECIFICATIONS OF THE CPU MODULE
5
POWER SUPPLY MODULE
6
BASE UNIT AND EXTENSION CABLE
7
MEMORY CARD AND BATTERY
8
CPU MODULE START- UP PROCEDURES
4.4.3 Reset Operation
For the Universal model QCPU, the RUN/STOP/RESET switch of the CPU module is used
to switch between the "RUN status" and "STOP status" and to perform "RESET
operation".
When using the RUN/STOP/RESET switch to reset the CPU module, moving the RUN/
STOP/RESET switch to the reset position will not reset it immediately.
POINT
Hold the RUN/STOP/RESET switch in the RESET position until reset processing
is complete (the flickering ERR. LED goes off).
If you release your hand from the RUN/STOP/RESET switch during reset
processing (during rapid flickering of ERR. LED), the switch will return to the
STOP position and reset processing cannot be completed.

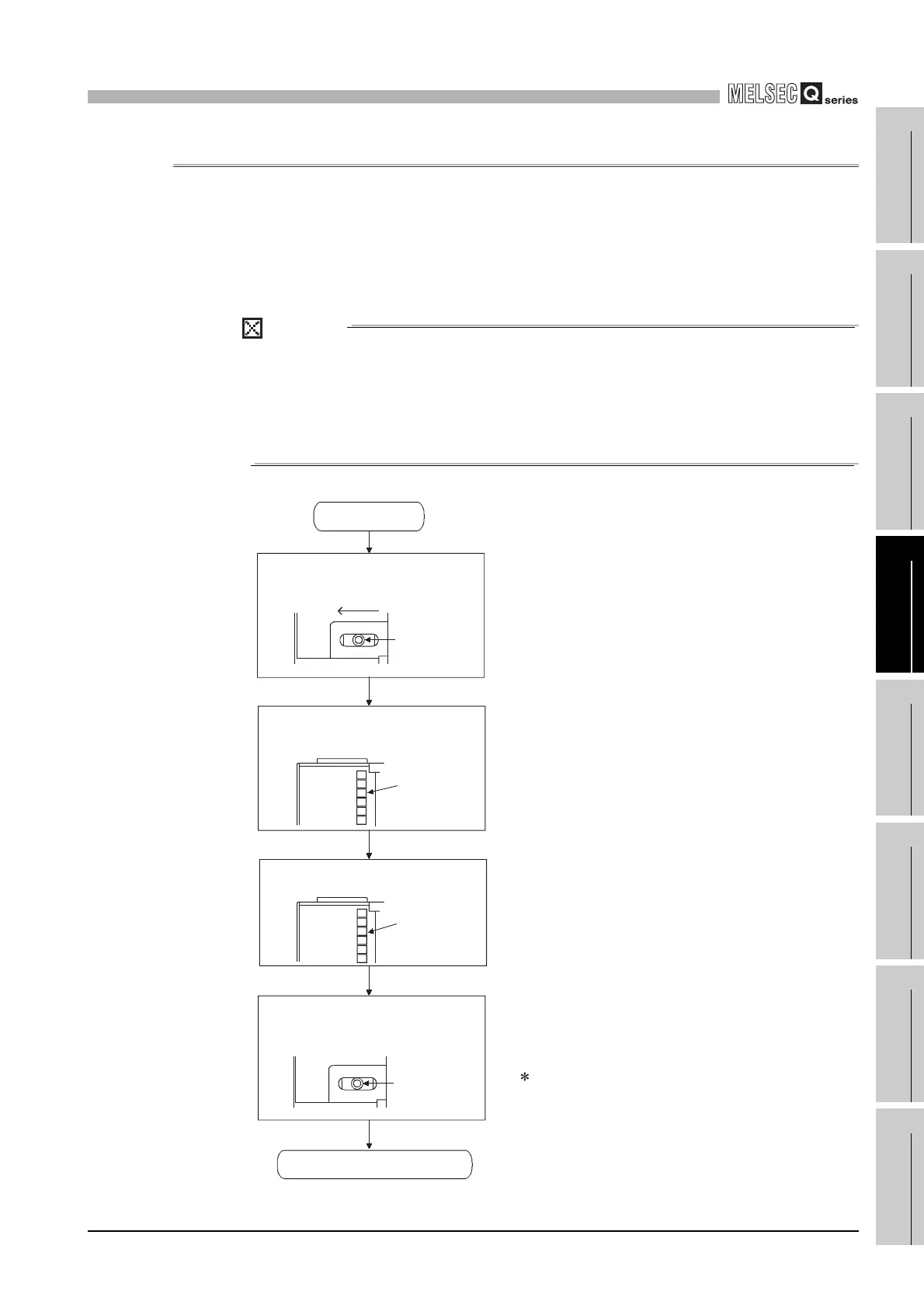

Perform reset operation with the RUN/STOP/RESET switch as shown in Diagram 4.23.
Diagram 4.23 Reset Operation
Start
Termination , completed , end
Hold the RUN/STOP/RESET switch
in the "RESET" position.
Reset operation is started using
the RUN/STOP/RESET switch.
.......................
Reset is accepted and reset
processing is performed.
.......................
Reset is completed.
.......................
Reset is canceled.
.......................
Releasing your hand from the
RUN/STOP/RESET switch returns it
to the STOP position.
RESET
RUN
STOP
RUN/STOP/RESET
switch
Flickers.
Goes off.
The ERR. LED flickers several times
(3 to 4 times) rapidly.
The "ERR. LED" goes off .
Return the RUN/STOP/RESET
switch to the "STOP" position.
RUN/STOP/RESET
switch
RESET
RUN
STOP
:
MODE
RUN
ERR.
USER
BAT.
BOOT
MODE
RUN
ERR.
USER
BAT.
BOOT
