Mitsubishi Q01CPU User Manual

6 - 14
6.1 Base Unit
6.1.3 Setting the Extension Stages
6
BASE UNIT AND EXTENSION CABLE
6.1.3 Setting the Extension Stages

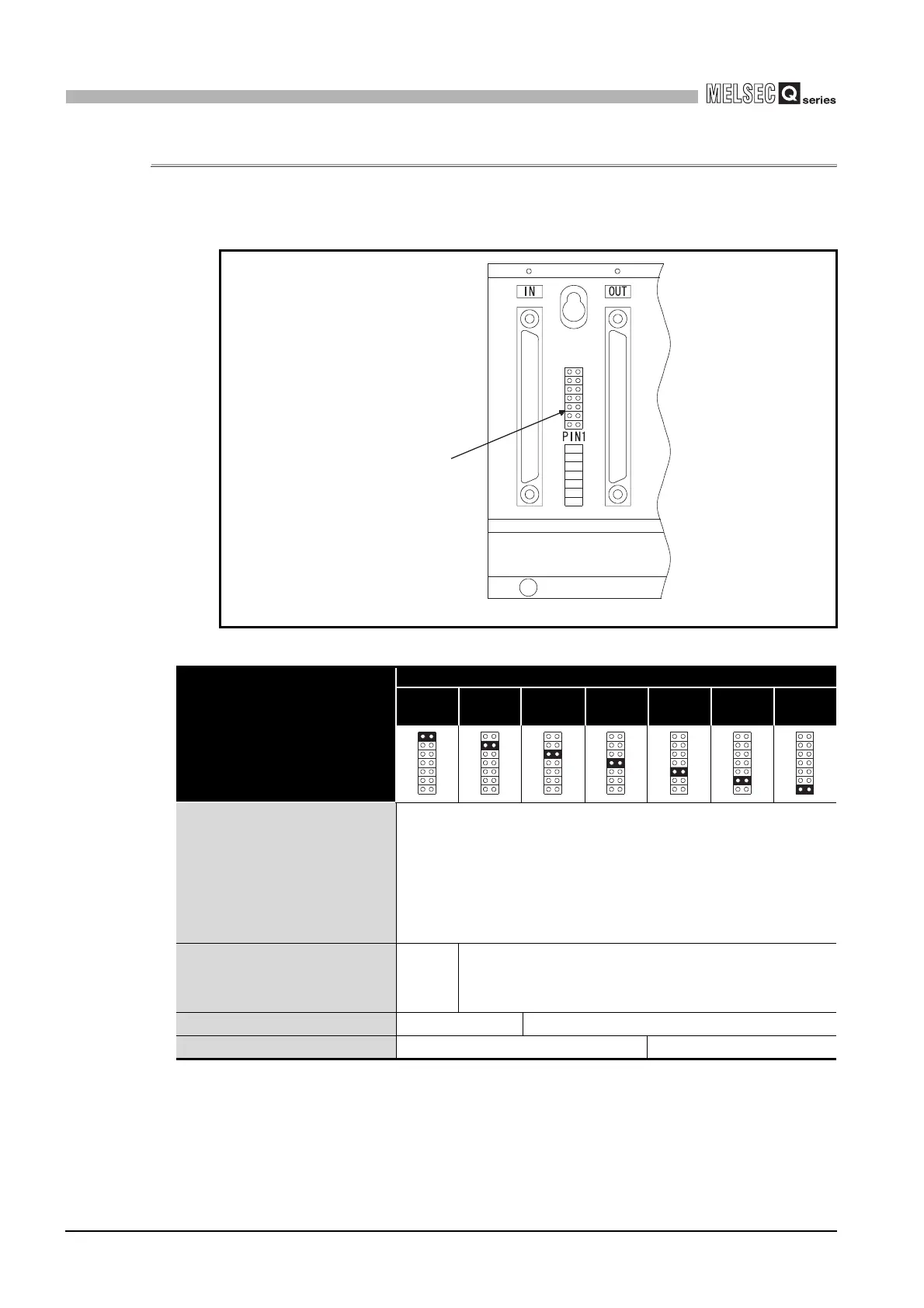

The stage number setting method of each extension base unit to be used is described
below.
Diagram 6.8 Connector
Table6.16 Setting of Stage Number for Extension Base Units
CPU module
Number Setting for Extension Stages
1st
stage
2nd
stage
3rd
stage
4th
stage
5th
stage
6th
stage
7th
stage
Q02(H)CPU, Q06HCPU,
Q12HCPU, Q25HCPU,
Q02PHCPU, Q06PHCPU,
Q03UDCPU, Q04UDHCPU,
Q06UDHCPU, Q13UDHCPU,
Q26UDHCPU, Q03UDECPU,
Q04UDEHCPU, Q06UDEHCPU,
Q13UDEHCPU, Q26UDEHCPU
Setting available
Q12PRHCPU, Q25PRHCPU
*2
Setting
not
available
*3
Setting available
*4
Q00JCPU Setting available
Setting prohibited
*1
Q00CPU, Q01CPU, Q02UCPU Setting available
Setting prohibited
*1
1
2
3
4
5
6
7
Stage No. setting
connector
