(7) Redundant extension base unit (Q65WRB)

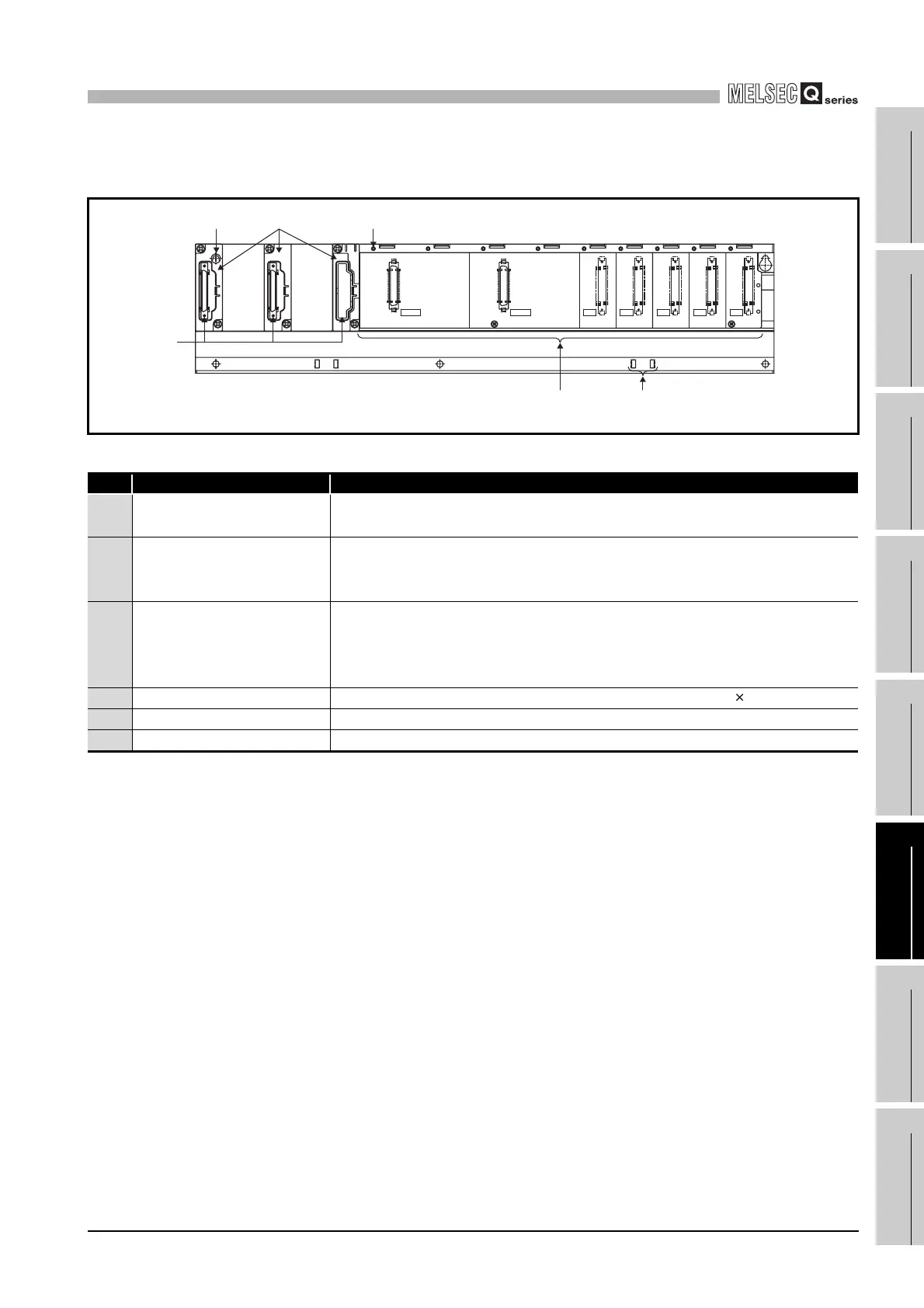

Diagram 6.7 Redundant extension base unit (Q65WRB)
Table6.15 Part Names
No. Name Application
1) Extension cable connector
Connector for connecting an extension cable (for signal communications with the
redundant system of the main base unit)
2) Base cover
Protective cover of extension cable connector.
Before connecting an extension cable, the part under OUT on the base cover must
be removed with a tool such as a flat blade screwdriver.
3) Module connector
Connector for installing a redundant power supply module, I/O module and intelligent
function module.
To the connectors unused, attach the supplied connector cover or the blank cover
module (QG60) to prevent entry of dirt.
4) Module fixing screw hole
Screw hole for fixing the module to the base unit. Screw size: M3 12
5) Base mounting hole Hole for mounting this base unit on the control panel. (For M4 screw)
6) DIN rail adapter mounting hole DIN rail adapter mounting hole.
POWER 2
SG
5V
5V
SG
POWER 1
I/O0 I/O1 I/O2 I/O3 I/O4
IN2 OUTIN1
5)
1)
4)
6)3)
2)
