Mitsubishi Q01CPU User Manual

7
MEMORY CARD AND BATTERY
7.1 Memory Card
7.1.5 Memory Card Loading/Unloading Procedures
7 - 6
1
OVERVIEW
2
SYSTEM CONFIGURATION
3
GENERAL SPECIFICATIONS
4
HARDWARE SPECIFICATIONS OF THE CPU MODULE
5
POWER SUPPLY MODULE
6
BASE UNIT AND EXTENSION CABLE
7
MEMORY CARD AND BATTERY
8
CPU MODULE START- UP PROCEDURES
7.1.5 Memory Card Loading/Unloading Procedures
(1) For Q2MEM type memory card
(a) To install the memory card
Install the memory card into the CPU module, while paying attention to the
orientation of the memory card.
Insert the memory card securely into the connector until the height of the memory
card reaches that of the memory card EJECT button.
(b) To remove the memory card
When removing the memory card from the CPU module, press the memory card
EJECT button to pull out the memory card.

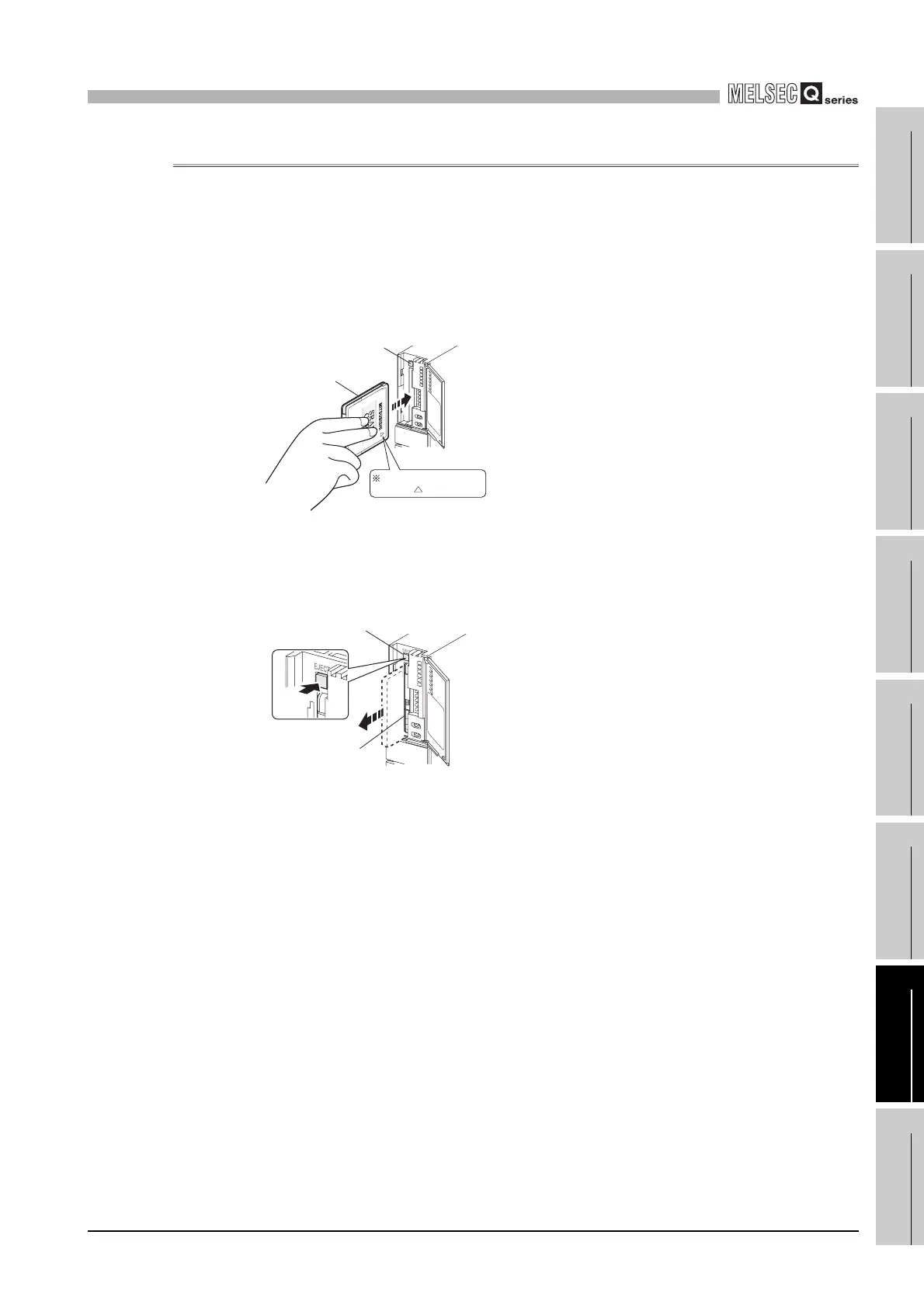

Diagram 7.3 Install the memory card
Diagram 7.4 Remove the memory card
Memory card
Memory card
EJECT button
CPU module main
unit
Insertion direction check
( mark)
Memory card
Push
Memory card
EJECT button
CPU module
main unit
