CHAPTER7 MEMORY CARD AND BATTERY
This chapter describes the specifications of the memory cards and the batteries available
for the Q Series CPU Module and how to handle them.
7.1 Memory Card
The memory card
Note7.1
is used for storing programs and file registers as well as storing
debugged data by the tracing function.Note1
It is also used when handling a file register that exceeds the number of points storable in
the standard RAM.( Section 4.1)
7.1.1 List of Usable Memory Cards
Three types of memory cards(SRAM card, Flash card, and ATA card) are available. The
memory cards usable for each CPU module are shown in Table7.1.
: Usable : Not usable
* : Only one memory card can be installed for each CPU module.
POINT
Depending on the type of memory card, storable data vary.
For the data that can be stored on memory cards, refer to the following manual.
QCPU User's Manual (Function Explanation, Program Fundamentals)
Note1

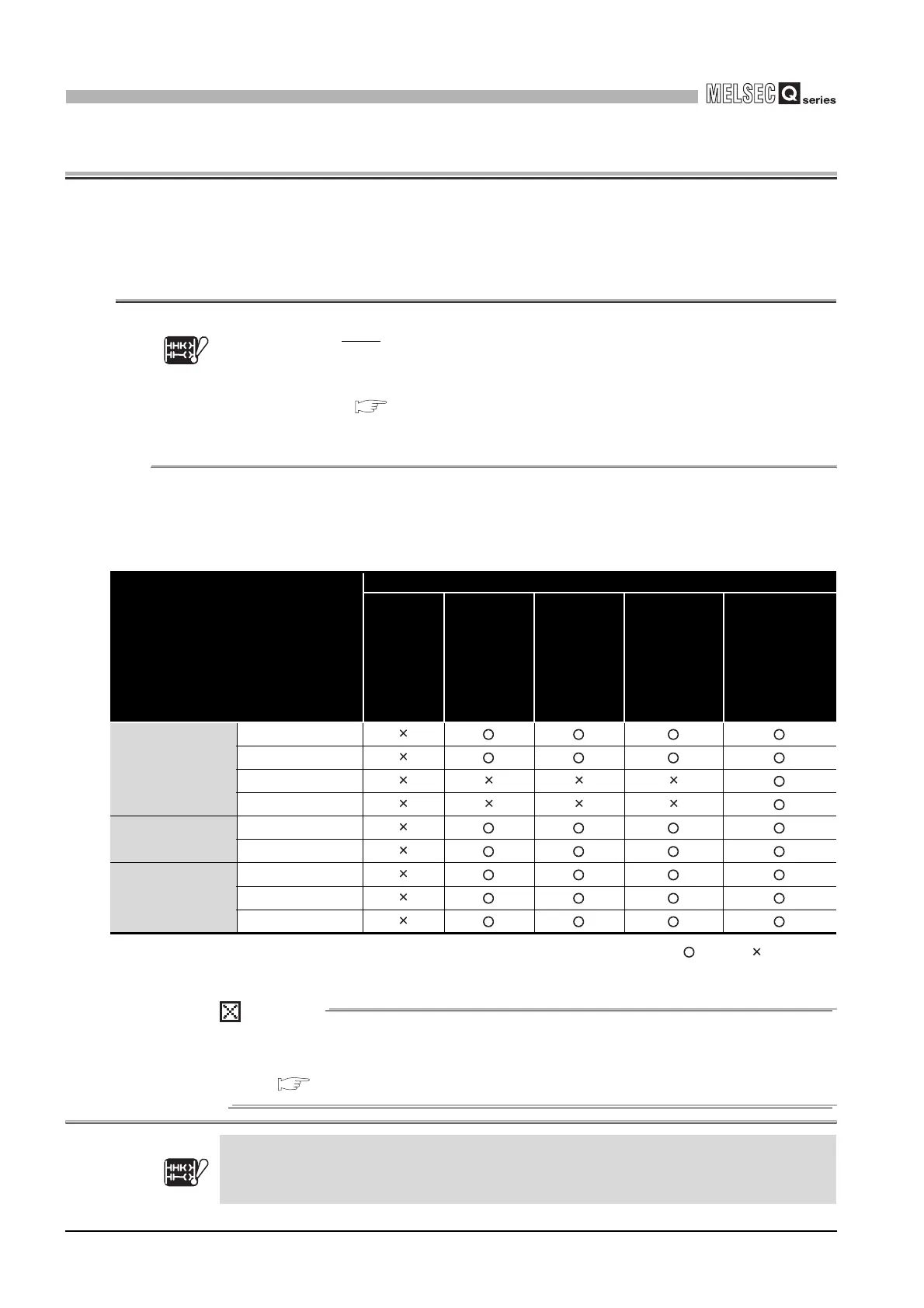

Table7.1 Memory cards and applicable CPU modules
Memory card
*
CPU module
Q00JCPU
Q00CPU
Q01CPU
Q02CPU
Q02HCPU
Q06HCPU
Q12HCPU
Q25HCPU
Q02PHCPU
Q06PHCPU
Q12PHCPU
Q25PHCPU
Q12PRHCPU
Q25PRHCPU
Q02UCPU
Q03UD(E)CPU
Q04UDH(E)CPU
Q06UDH(E)CPU
Q13UDH(E)CPU
Q26UDH(E)CPU
SRAM card
Q2MEM-1MBS
Q2MEM-2MBS
Q3MEM-4MBS
Q3MEM-8MBS
Flash card
Q2MEM-2MBF
Q2MEM-4MBF
ATA card
Q2MEM-8MBA
Q2MEM-16MBA
Q2MEM-32MBA
Basic
Note7.1
Memory cards are not available for the Basic model QCPU.
Basic
Note7.1
