6.1 Base Unit
6.1.2 Part Names
6
BASE UNIT AND EXTENSION CABLE
6.1.2 Part Names
The names of the parts of the base unit are described below.
(1) Main base unit (Q33B, Q35B, Q38B, Q312B)

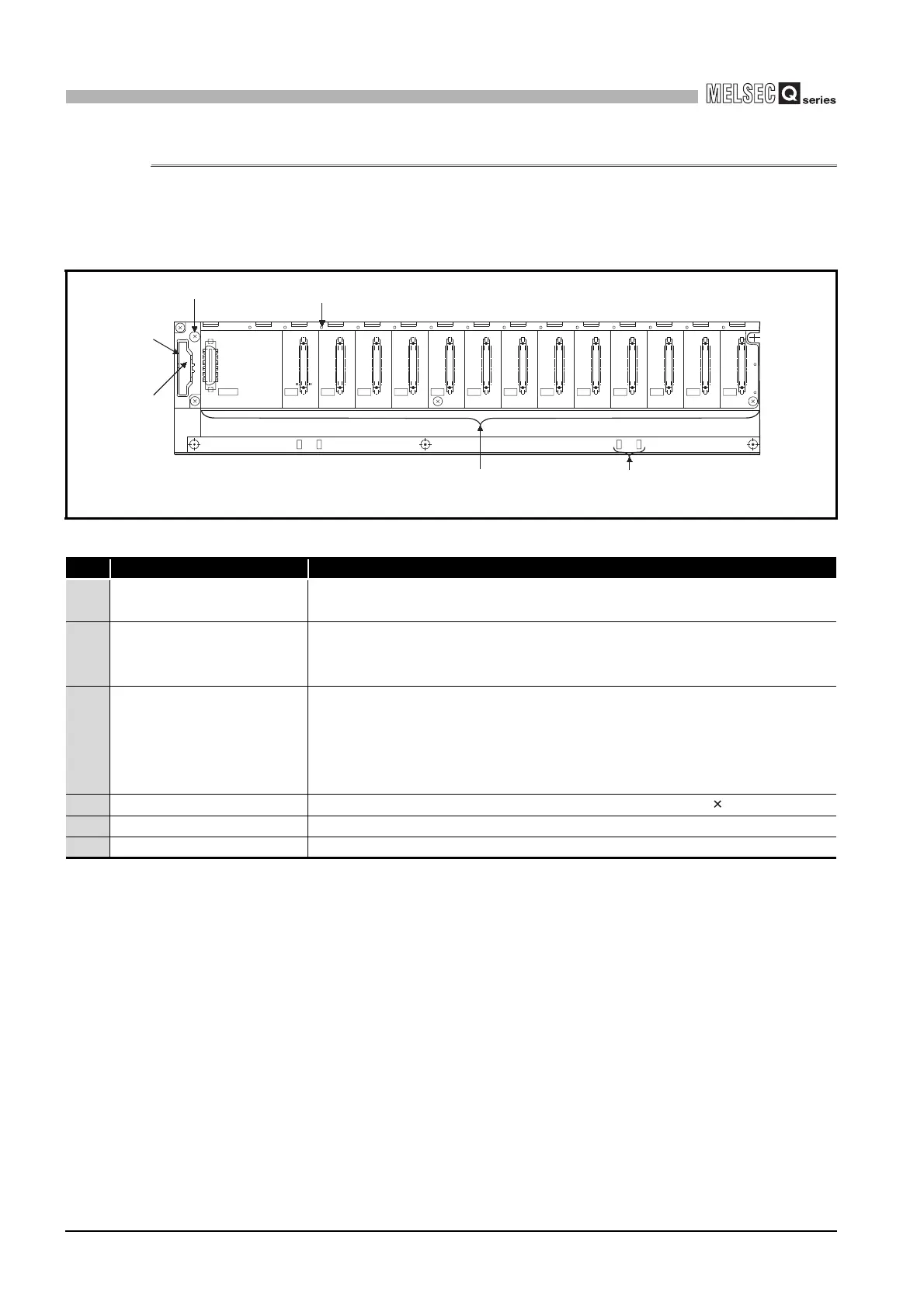

Diagram 6.1 Main base unit (Q33B, Q35B, Q38B, Q312B)
Table6.9 Part Names
No. Name Application
1) Extension cable connector
Connector for connecting an extension cable (for signal communications with the
extension base unit)
2) Base cover
Protective cover of extension cable connector. Before an extension cable is
connected, the area of the base cover surrounded by the groove under the word
"OUT" on the base cover must be removed with a tool such as nippers.
3) Module connector
Connector for installing the Q series power supply module, CPU module, I/O
modules, and intelligent function module.
To the connectors located in the spare space where these modules are not installed,
attach the supplied connector cover or the blank cover module (QG60) to prevent
entry of dirt.
4) Module fixing screw hole
Screw hole for fixing the module to the base unit. Screw size: M3 12
5) Base mounting hole Hole for mounting this base unit onto the panel of the control panel (for M4 screw)
6) DIN rail adapter mounting hole Hole for mounting DIN rail adapter
1)
2)
5)
4)
3) 6)
I/O9 I/O10 I/O11I/O8I/O7I/O6IO5I/O4I/O3I/O2I/O1I/O0
CPU
POWER
5V
SG
FG
OUT
