10.3.3 Installation and removal of module
This section explains how to install and remove a power supply, CPU, I/O, intelligent
function or another module to and from the base unit.
(1) Installation and removal of the module from Q3 B, Q3 SB, Q3 RB,
Q3 DB, Q5 B, Q6 B, Q6 RB and Q6 WRB
(a) Installation of module on Q3 B, Q3 SB, Q3 RB, Q3 DB, Q5 B, Q6 B,
Q6 RB and Q6 WRB
* 1: If the module has two module fixing projections, insert the two module fixing projections on the
right and left into the module fixing holes so that they are not misaligned.
* 2: If the module has two module fixing projections on its top, push the center top of the module so
that the two module fixing hooks on the right and left are securely engaged with the base unit
hooks.

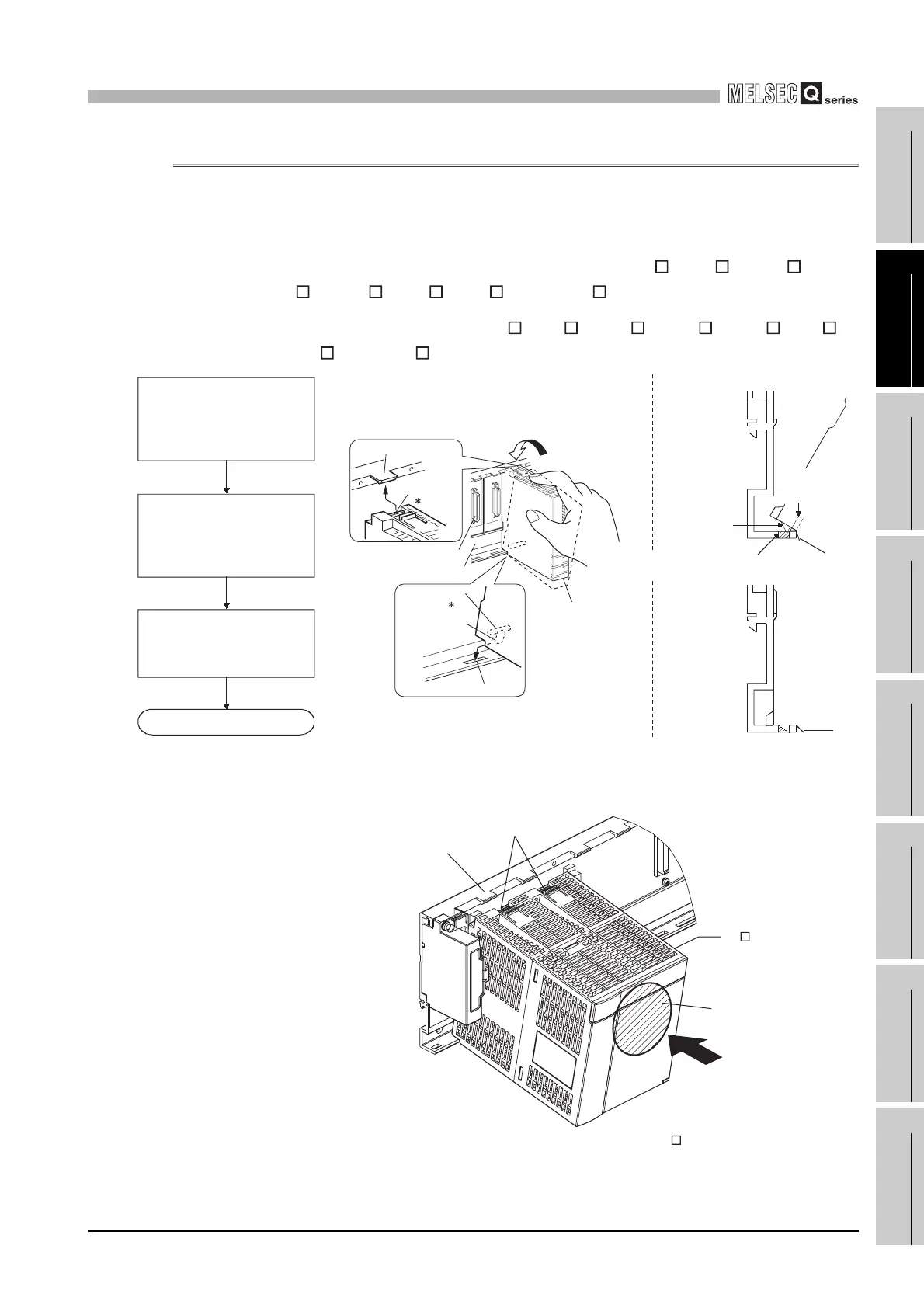

Diagram 10.23 Module mounting procedure
Diagram 10.24 Mounting the Q6 RP
Module fixing hole
Module fixing
projection
Base unit
Module
mounting lever
Make sure that the module
is inserted in the base unit
securely.
Completed
Unit/Module
module
fixing hook
( 2)
Base unit
Module protection
Module
mounting lever
Module fixing
projection ( 1)
Base unit
Module connector
Securely insert the module
fixing projection (*1) into the
module fixing hole so that the
latch is not misaligned.
Using the module fixing hole as
a fulcrum, push the module in
the direction of arrow to mount
it into the base unit.
Q6 RP
Push
Base unit hook
Module hook
Center top
