7 - 3
7.1 Memory Card
7.1.2 Memory Card Specifications
7
MEMORY CARD AND BATTERY
POINT
When the ATA card is used, the value stored in the special register SD603 differs
depending on the manufacturer control number and CPU module type.
When the CPU module is a Universal model, an ATA card capacity is stored in
SD603 in units of kbytes.
When it is not a Universal model QCPU, 8000, 16000 or 32000 is stored in
SD603 depending on the manufacturer control number of the ATA card and CPU
module type
The manufacturer control number (the third digit from the left) of the ATA card is
described in the label on the back of the ATA card. (Refer to Diagram 7.1)
When character string including the manufacturer control number is 4digits, the
third digit from the left is the manufacturer control number, and when it is 3 digits,
the manufacturer control number is "B".

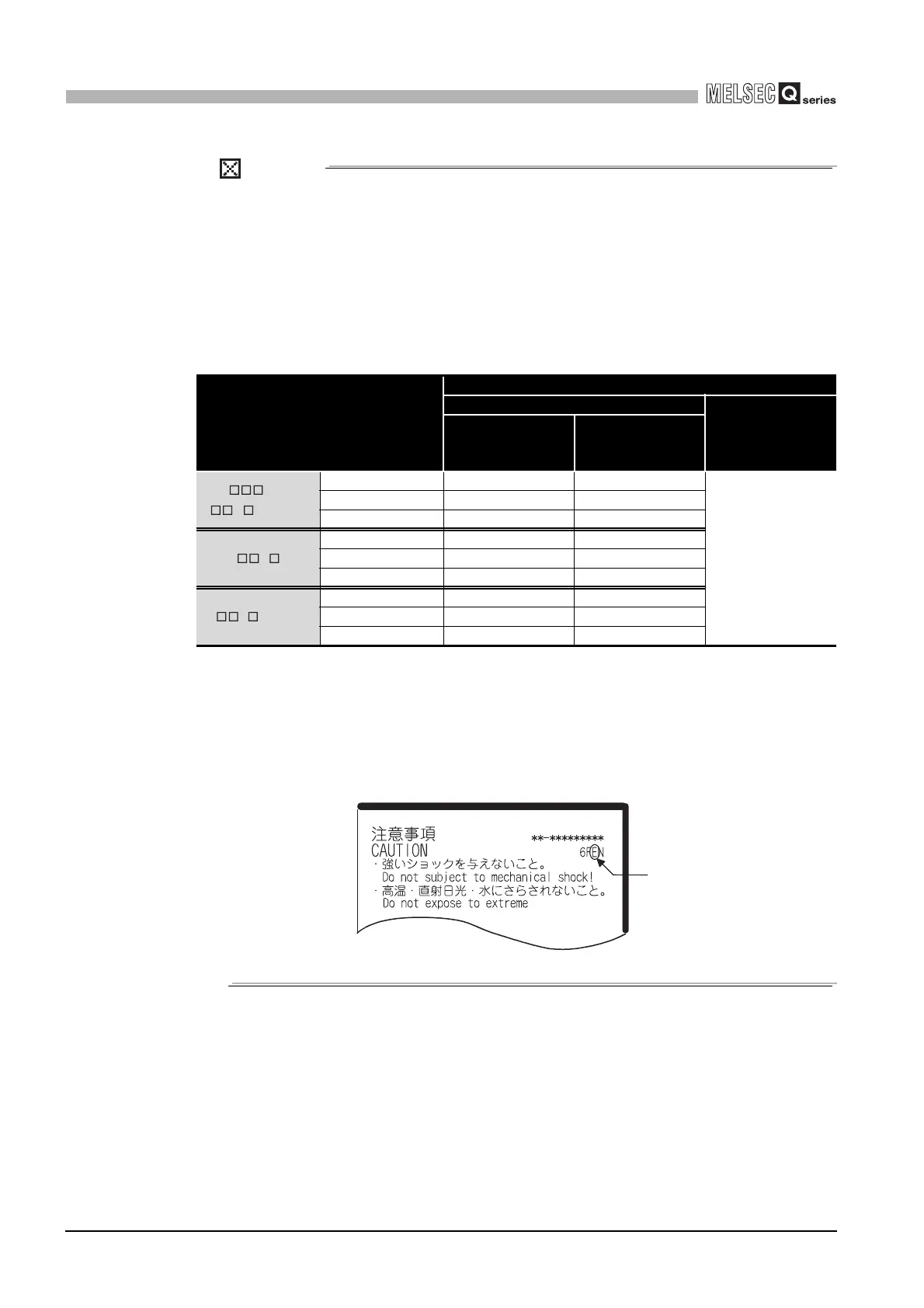

Table7.5 When the value stored in SD603 depending on manufacturer control number of the Q2MEM-8MBA
Manufacturer control No. and type of
ATA card
Value stored in special register SD603
CPU other than Universal model
When CPU is
Universal model
Serial No. (first 5
digits) is 09011 or
earlier
Serial No. (first 5
digits) is 09012 or
later
" " and
" D " or earlier
Q2MEM-8MBA 8000 8000
ATA card capacity
(kbytes)
Q2MEM-16MBA 16000 16000
Q2MEM-32MBA 32000 32000
"E"
Q2MEM-8MBA 16000 8000
Q2MEM-16MBA 16000 16000
Q2MEM-32MBA 32000 32000
" F " or later
Q2MEM-8MBA 32000 16000
Q2MEM-16MBA 32000 32000
Q2MEM-32MBA 32000 32000
Diagram 7.1 Label on the back of ATA card
Manufacturer
control number
