10
- 30
10.3 Module Installation
10.3.3 Installation and removal of module
10
LOADING AND INSTALLATION

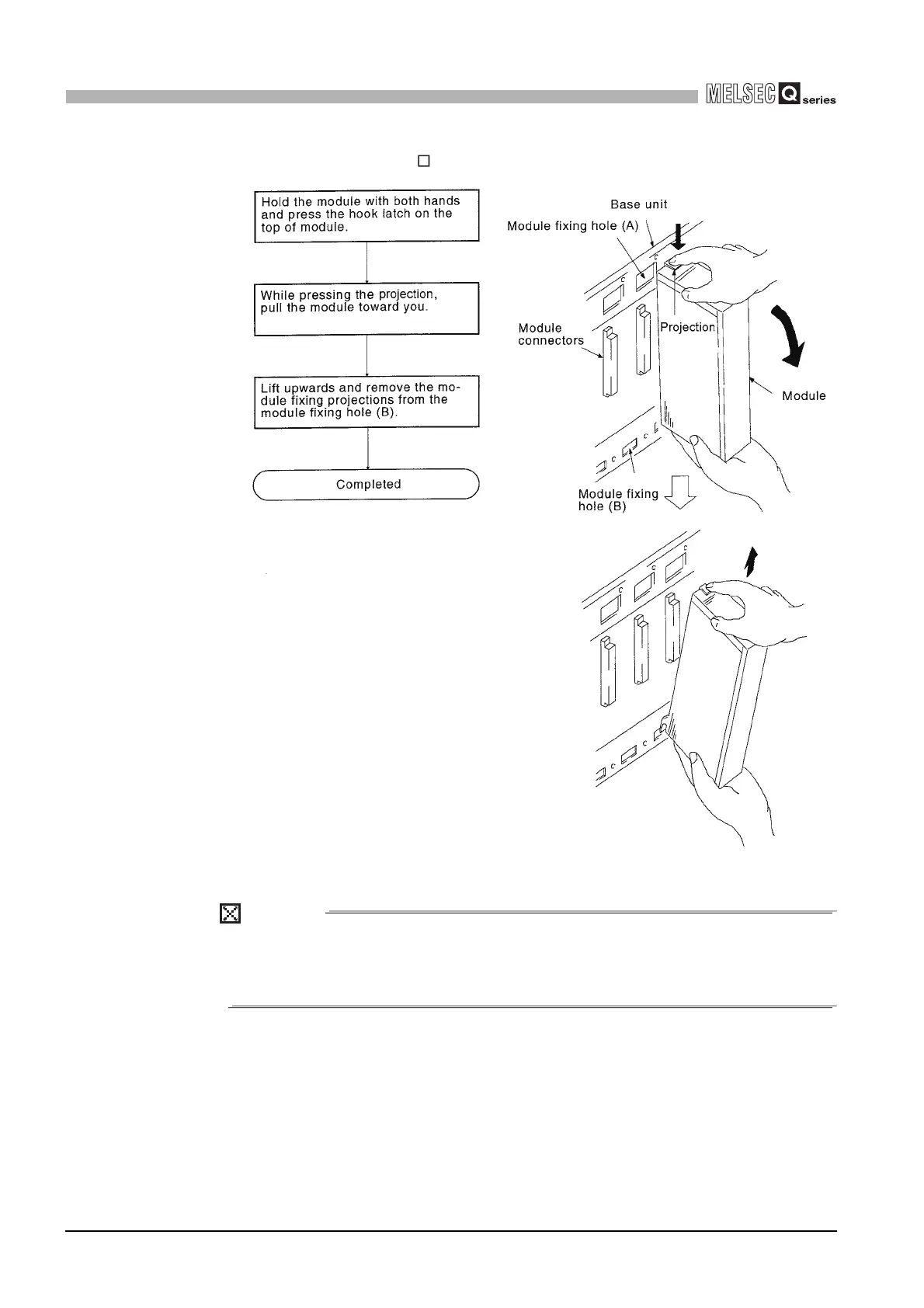

(b)
Remov
al from QA6
B
POINT
Always disengage the hook from the
modu
le fixing hole (A) and then remove the
module fixing projection from the module fi
xing hole (B). An a
ttempt to remove the
module forcibly may damage
the hook or modu
le fixing projection.
