10.5 Connection and Disconnection of Extension Cable
10
LOADING AND INSTALLATION
(2) Connection of extension cable
POINT
When connecting an extension base unit to the main base unit with an extension
cable, always plug the OUT side connector of the main base unit and the IN side
connector of the extension base unit with an extension cable. The system will not
operate properly if the extension cable is connected in the form of IN to IN, OUT to
OUT or IN to OUT.
When connecting two or more extension base units, plug the OUT side connector
of the first extension base unit and the IN side connector of the second extension
base unit with an extension cable.
• To connect an extension cable to the main base unit, remove the portion under
the OUT characters on the base cover with a tool such as a flat blade screwdriver
(5.5 75, 6 100).
This also applies to a case where an extension cable is connected to the OUT
side connector of the extension base unit.
When connecting an extension cable to the Q00JCPU, remove the base cover
manually.
To remove the base cover, insert the tip of a screwdriver into a clearance below
the base cover and pry it up.
Because a connector is equipped inside the base cover and it may be damaged if
the screwdriver is inserted deeply, care must be taken.

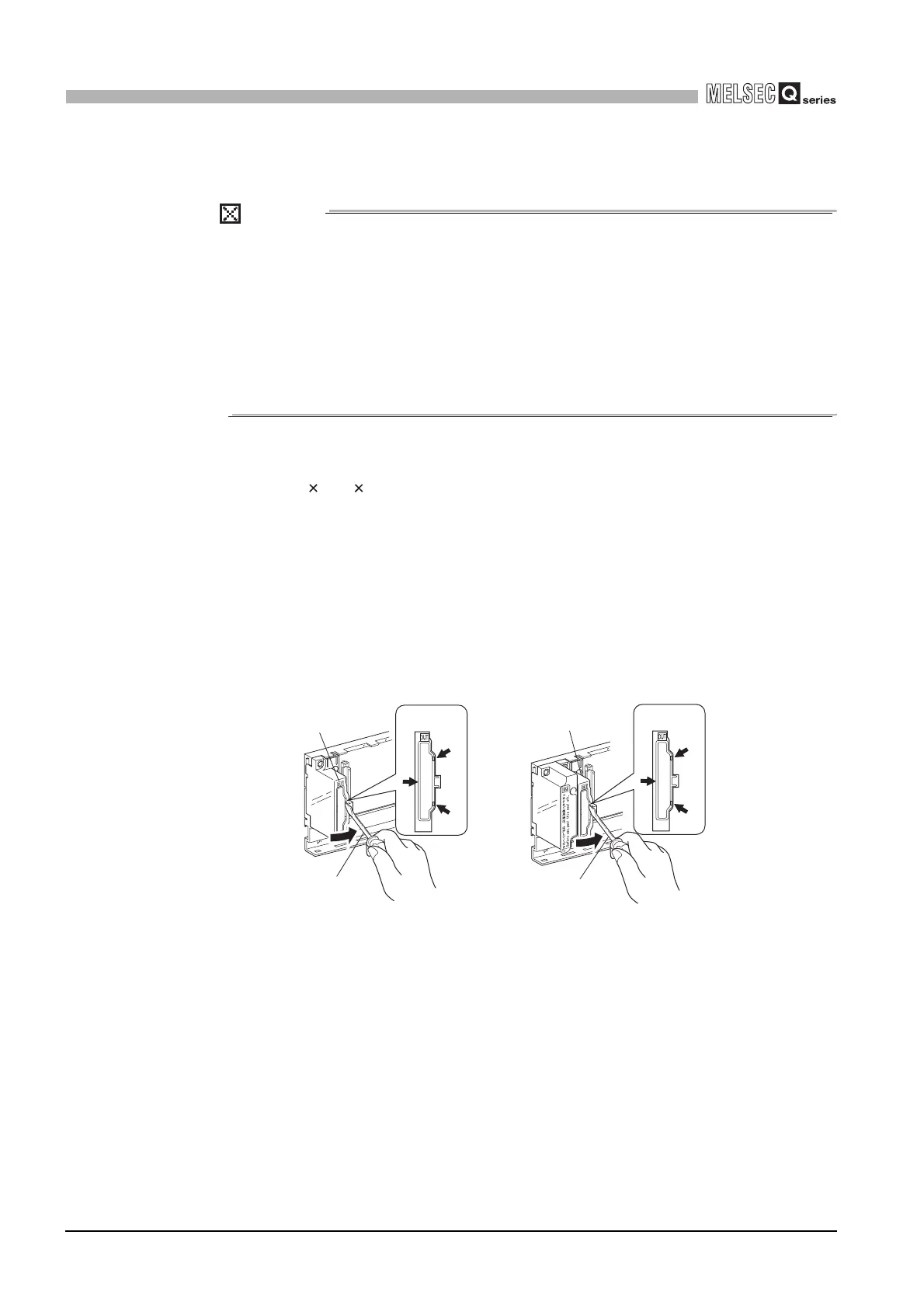

Diagram 10.33 Connection of extension cable
Main base unit
Base cover
Flat blade screwdriver
Cut at 3 places
of thin wall
Extension base unit
Flat blade screwdriver
OUT side of
base cover
Cut at 3 places
of thin wall
